LG BPM55 - Circuit Diagrams; Main - DC-DC Circuit Diagram

3-523-51
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
DC-DC
EAX65983001_Rev1.4(6)_MAIN
2014.11.10
CIRCUIT DIAGRAMS

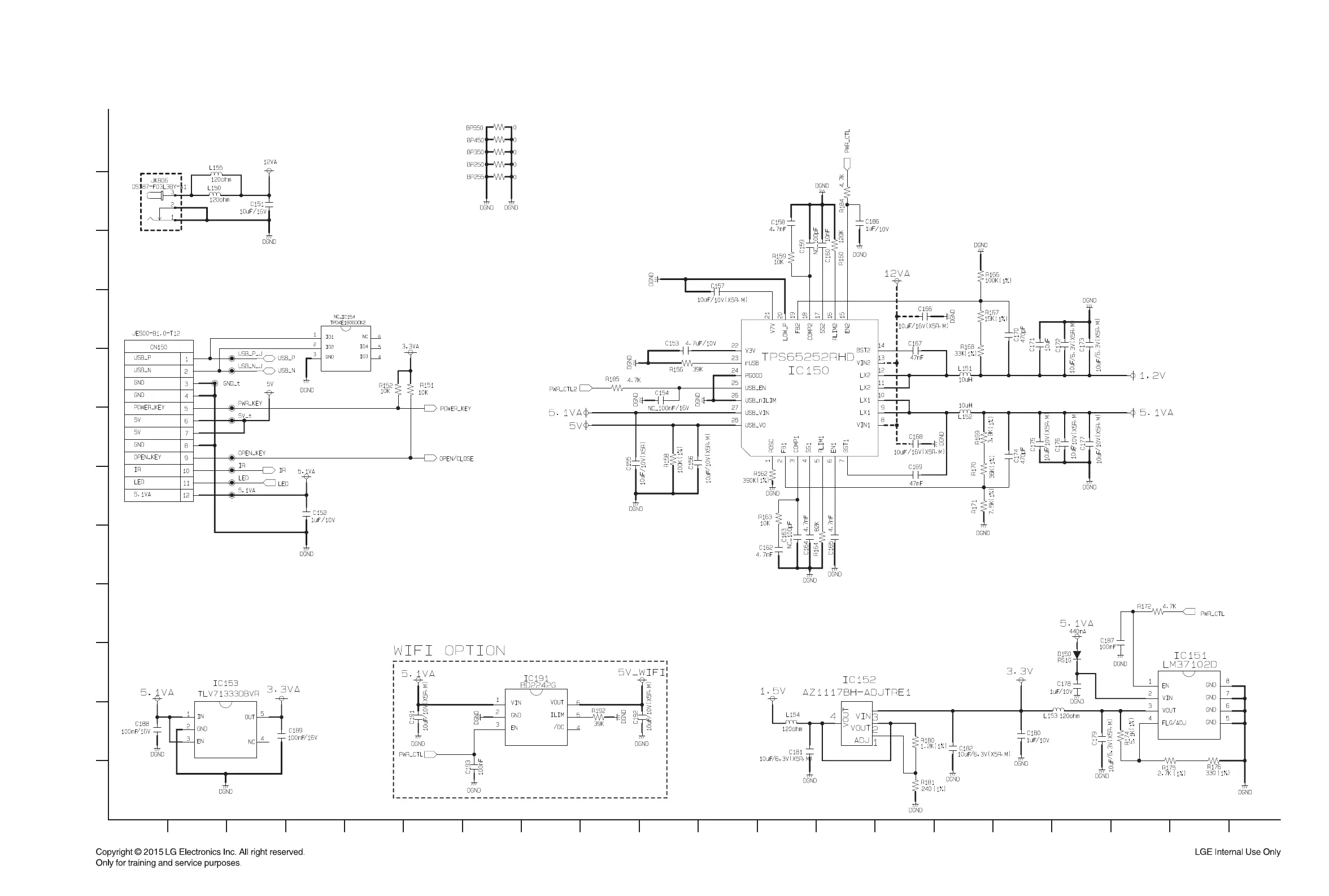

1. MAIN - DC-DC CIRCUIT DIAGRAM
