LG BPM55 - Main - Front End Circuit Diagram

3-583-57
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
FRONT END
EAX65983001_Rev1.4(6)_MAIN
2014.11.10

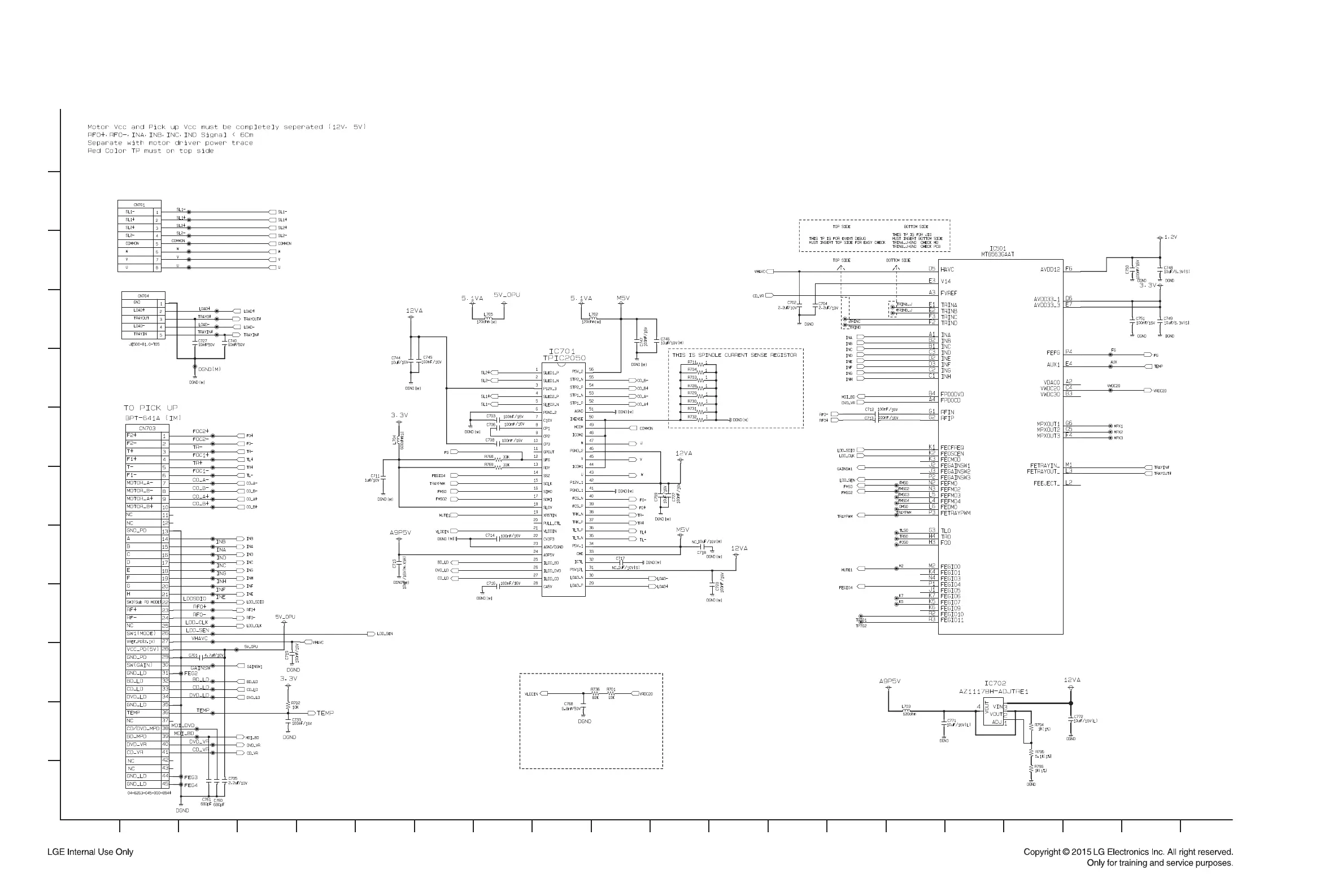

4. MAIN - FRONT END CIRCUIT DIAGRAM
