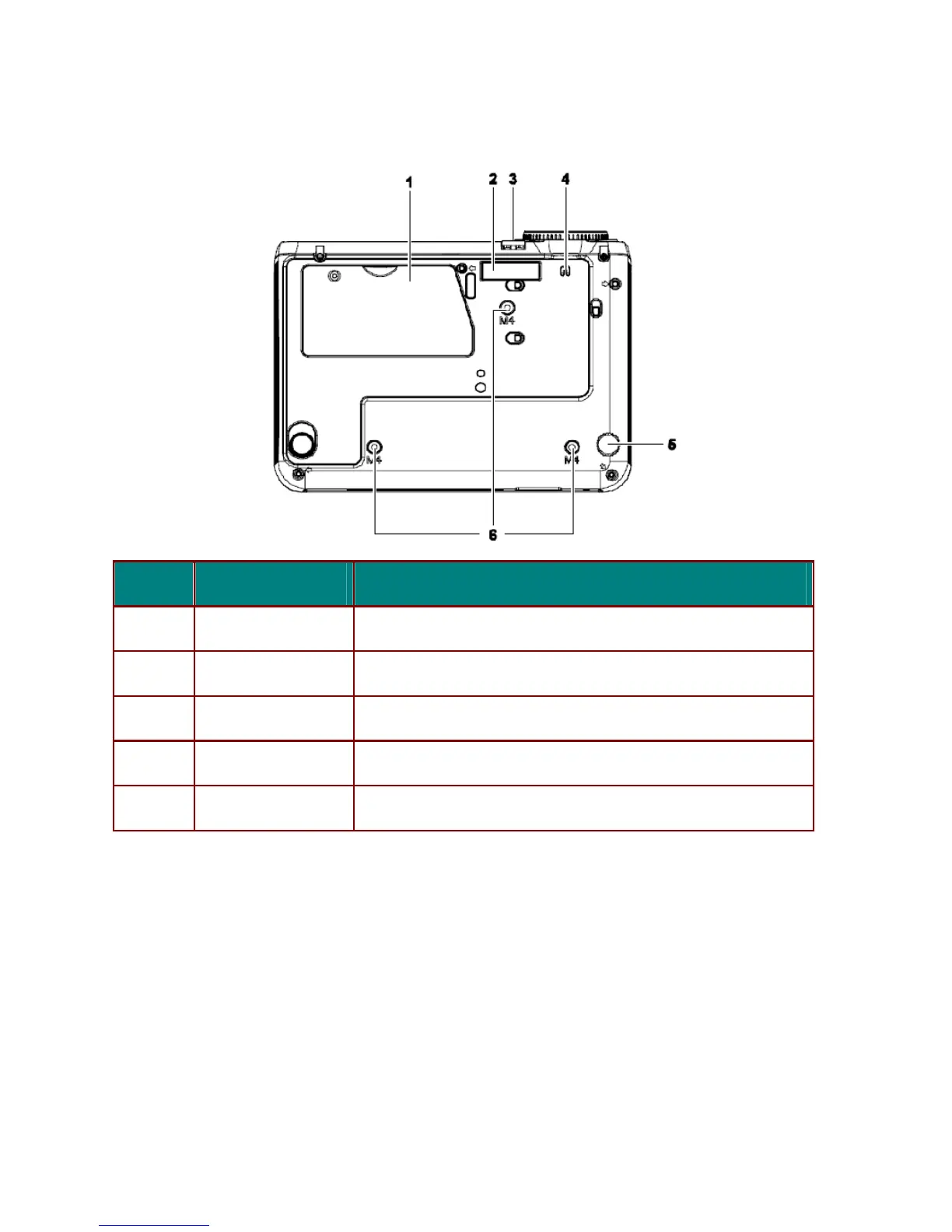

2-5. Bottom view
I TEM L ABEL D ESCRIPTION
1.
Lamp Cover Remove when changing the lamp
2.
Height adjustor Adjuster drops down when adjuster button is pushed
3.
Lens cap hook Push to release adjustor
4.
Tilt adjustor Rotate adjuster level to adjust angle position
5.
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
NOTE:
When installing, ensure that you see only UL Listed ceiling mounts.
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling
mount load capacity must exceed the weight of the installed equipment (not less than 5.15KG)
over a period of 60 seconds.

LG BS254 Specifications

General

Projection distance	0.129 - 2 m
Projection technology	DLP
Contrast ratio (typical)	2100:1
Screen size compatibility	51 \
Projector native resolution	SVGA (800x600)
Resolution	1280 x 1024 pixels
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	260.9 x 186.4 x 71.3 mm
Power requirements	100-240V
Lamp power	180 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	- mm
RMS rated power	1.5 W
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	-
Ethernet LAN (RJ-45) ports	0
Power consumption (standby)	- W
Power consumption (typical)	205 W

Weight and Dimensions

Weight	1910 g
