LG BS254 Service Manual

Delta Elec. Inc. BS254_BX254_BX324 rev.06
Company Confidential LG ______________________ Delta____________
57
2011/06/16
6-2. Calibrate Analog YUV
Equipment: VG828, must be take off H/V sync terminal from machine .

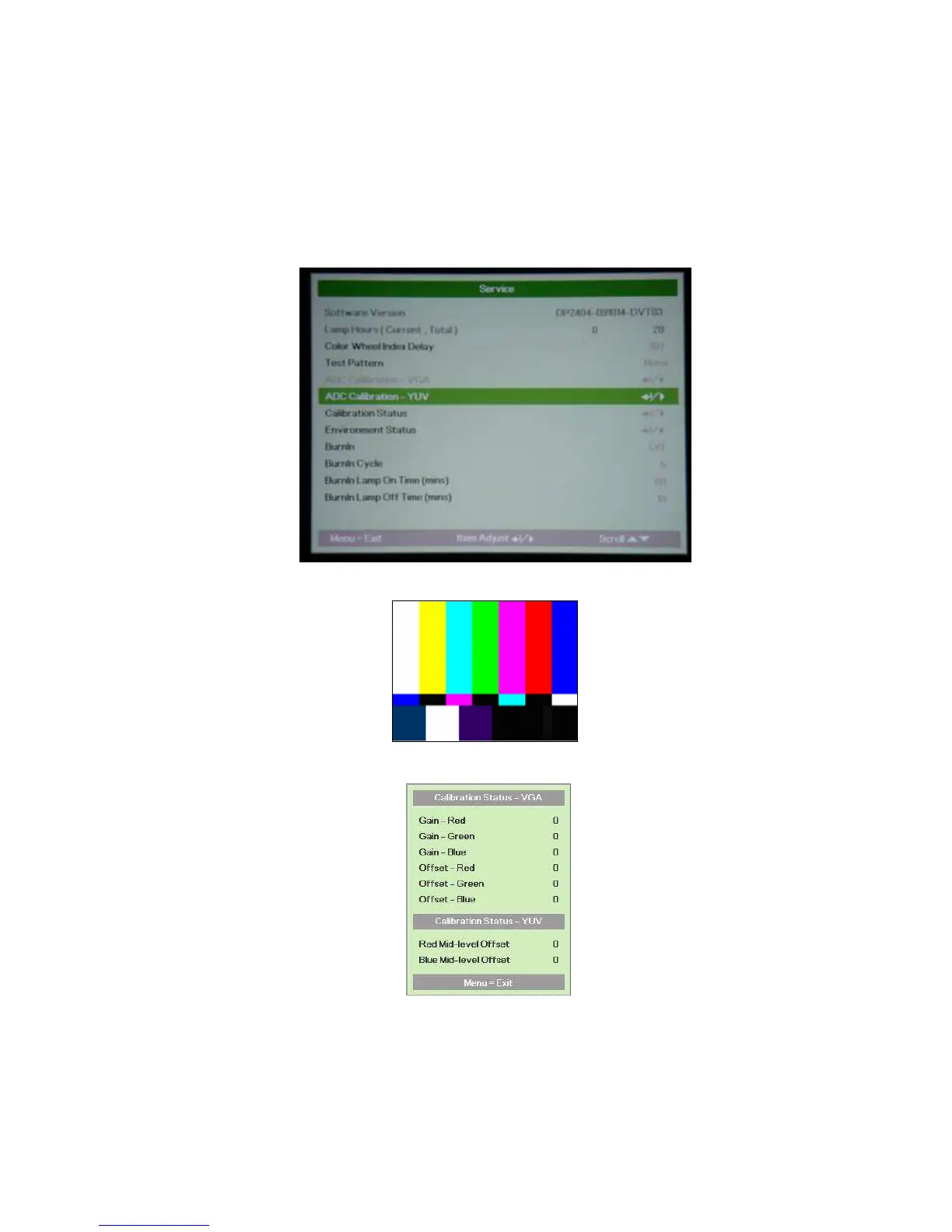

Step 1： In Service Mode select ADC Calibration - YUV. In this menu input pattern with 75﹪SMPTE
pattern for calibrate YUV Source and notice that the input source must be 480i format 。
After input ready press “Enter” or “Right” key to proceed。
Input Pattern
Step 2 : After complete the OSD will show the picture as follow, if not complete, just close the OSD。
NOTE: You can select Calibration Status – VGA or Calibration Status – YUV item to watch the calibrated
value at any time。

LG BS254 Specifications

General

Projection distance	0.129 - 2 m
Projection technology	DLP
Contrast ratio (typical)	2100:1
Screen size compatibility	51 \
Projector native resolution	SVGA (800x600)
Resolution	1280 x 1024 pixels
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	260.9 x 186.4 x 71.3 mm
Power requirements	100-240V
Lamp power	180 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	- mm
RMS rated power	1.5 W
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	-
Ethernet LAN (RJ-45) ports	0
Power consumption (standby)	- W
Power consumption (typical)	205 W

Weight and Dimensions

Weight	1910 g
