LG BS254 Service Manual

Delta Elec. Inc. BS254 & BX254 & BX324 rev.05
Company Confidential LG ______________________ Delta____________
8
2011/04/07

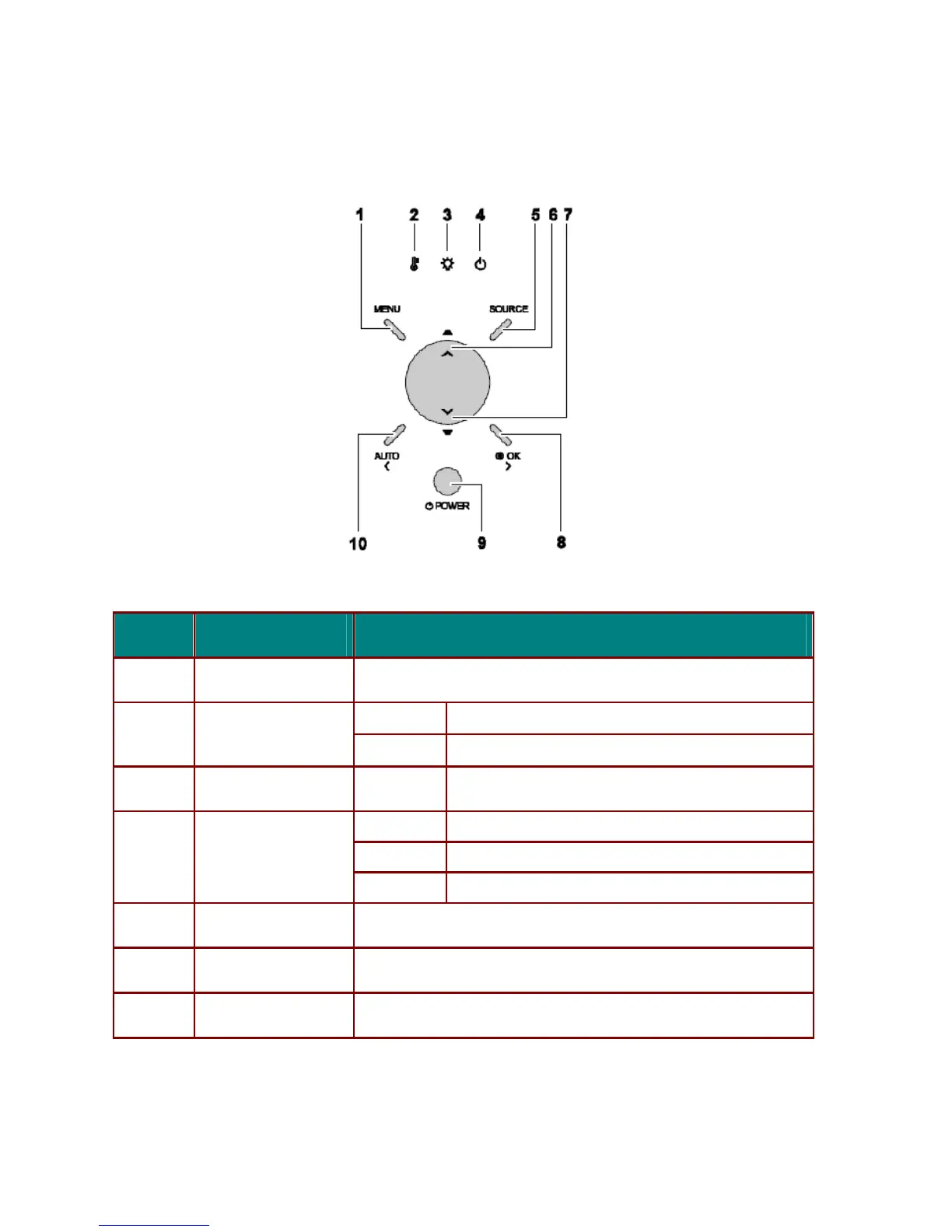

2-3. Top view-on screen Display (OSD) buttons and LEDS
I TEM L ABEL D ESCRIPTION
1.
Menu Open and Exits the OSD buttons
ON System over temperature
2.
Temp LED
OFF Normal state
3.
Lamp LED Flashing Error code
Green Power on
Off Power off (AC Off)
4.
Power LED
Flashing Error off
5.
Source Detects the input device
6.
Up Cursor / Keystone Navigates and changes settings in the OSD / Quick Menu-For Keystone
7.
Down Cursor / Keystone
Navigates and changes settings in the OSD / Quick Menu-For Keystone

LG BS254 Specifications

General

Projection distance	0.129 - 2 m
Projection technology	DLP
Contrast ratio (typical)	2100:1
Screen size compatibility	51 \
Projector native resolution	SVGA (800x600)
Resolution	1280 x 1024 pixels
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	260.9 x 186.4 x 71.3 mm
Power requirements	100-240V
Lamp power	180 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	- mm
RMS rated power	1.5 W
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	-
Ethernet LAN (RJ-45) ports	0
Power consumption (standby)	- W
Power consumption (typical)	205 W

Weight and Dimensions

Weight	1910 g
