LG BS254 Service Manual

Delta Elec. Inc. BS254_BX254_BX324 rev.06
Company Confidential LG ______________________ Delta____________
71
2011/06/16
11. EDID Data

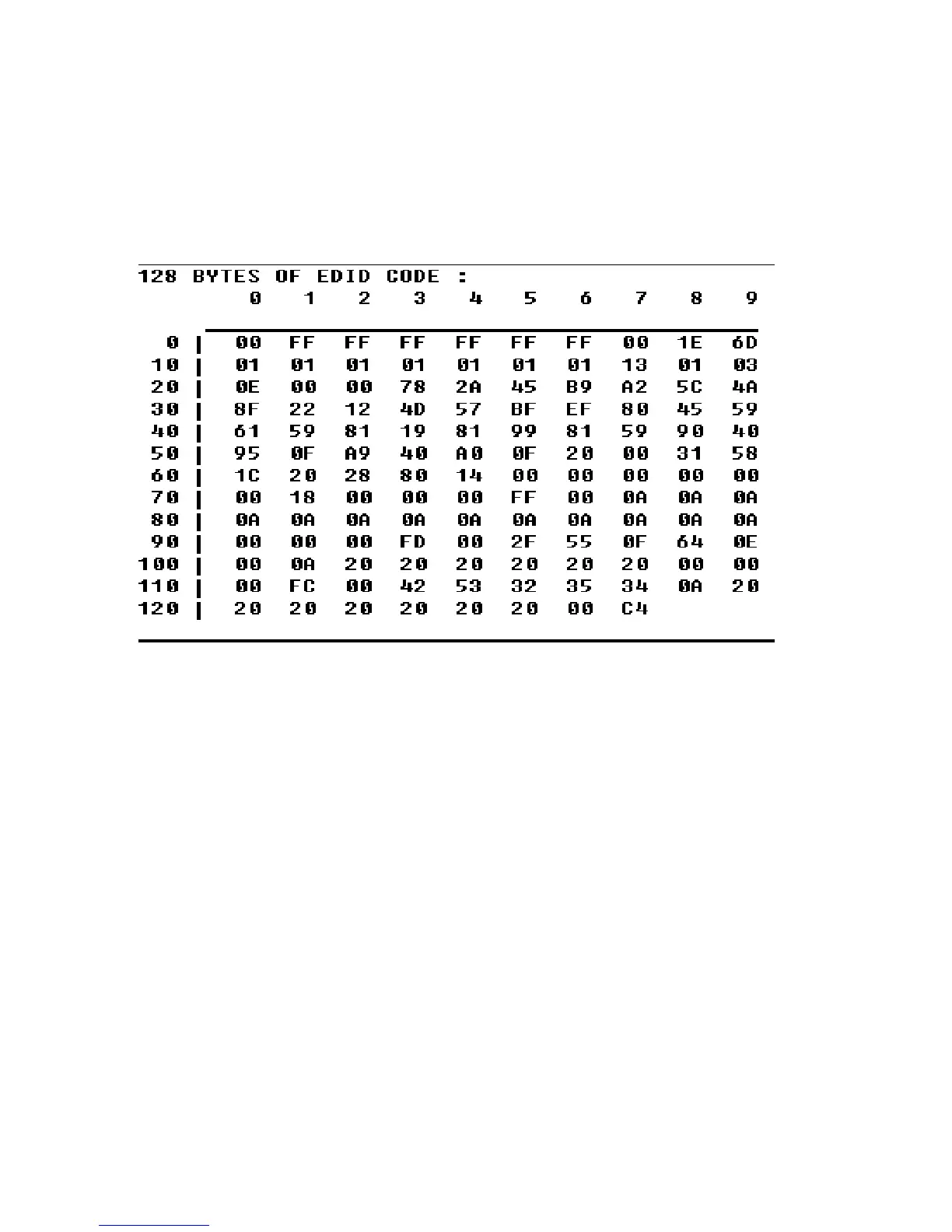

A. BS254 (DP-2404)
EDID Version # 1, Revision # 3
DDC Test For: GSM BS254
(08-09) ID Manufacturer Name ________________ = GSM
(11-10) Product ID Code _____________________ = 0101(Hex), 257(Dec)
(12-15) Last 5 Digits of Serial Number ______ = 16843009(Dec), 01010101(Hex)
(16) Week of Manufacture _________________ = 1
(17) Year of Manufacture _________________ = 2009
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION :
Analog Signal
0.700V/0.300V
Separate
Composite
Sync on Green
(21) Maximum Horizontal Image Size _______ = 0 mm
(22) Maximum Vertical Image Size _________ = 0 mm
(23) Display Gamma _______________________ = 2.20
