LG DK676X - SYSTEM 27 MHz CLOCK, RESET, FLASH R;W SIGNAL

3-11
DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
1. SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL.
1) MT1389E main clock is at 27MHz(X601)

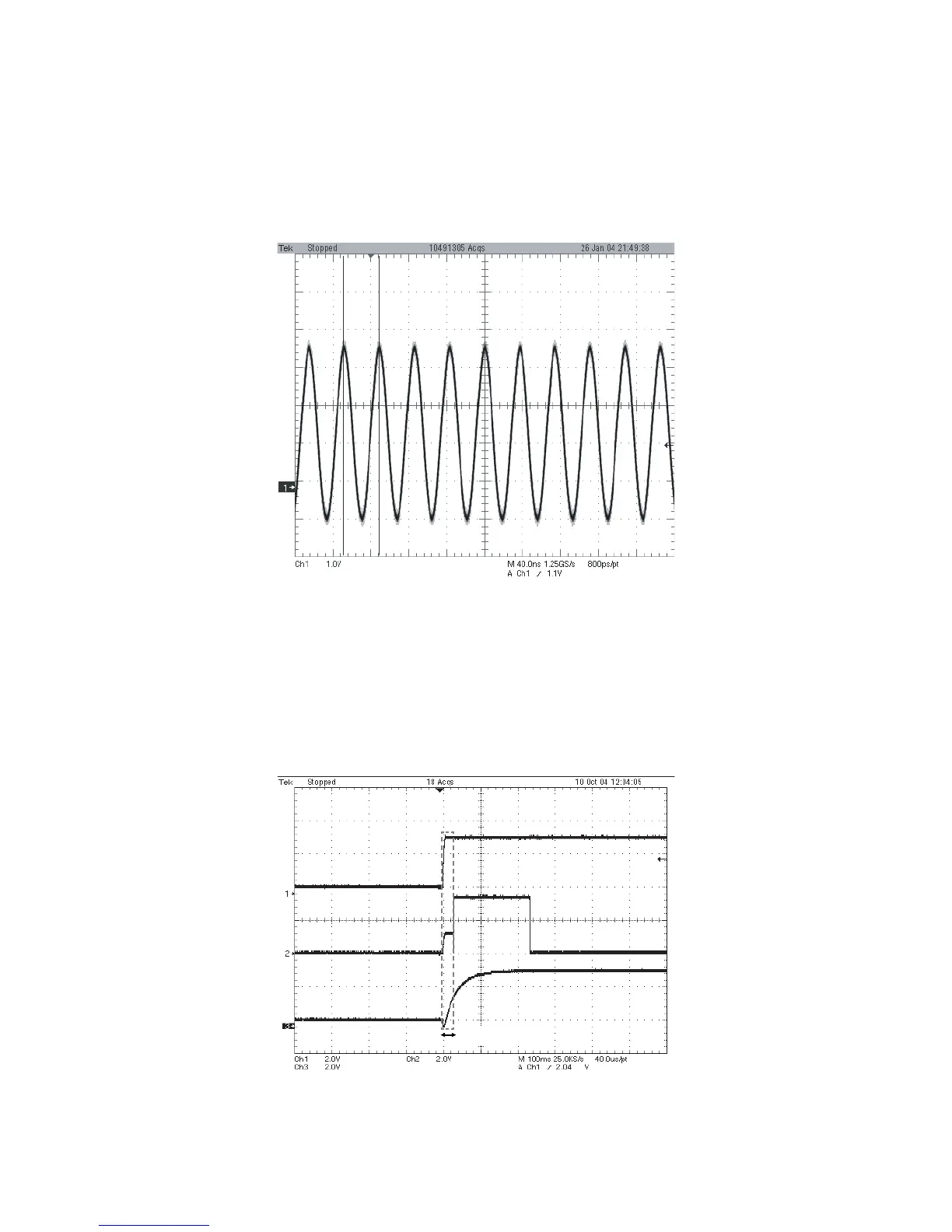

FIG 1-1
1.0V, 27MHz
2) MT1389 reset is low active.
FIG 1-2
Reset Time
3.3VA
PWR_CTL
RESET
