3-15

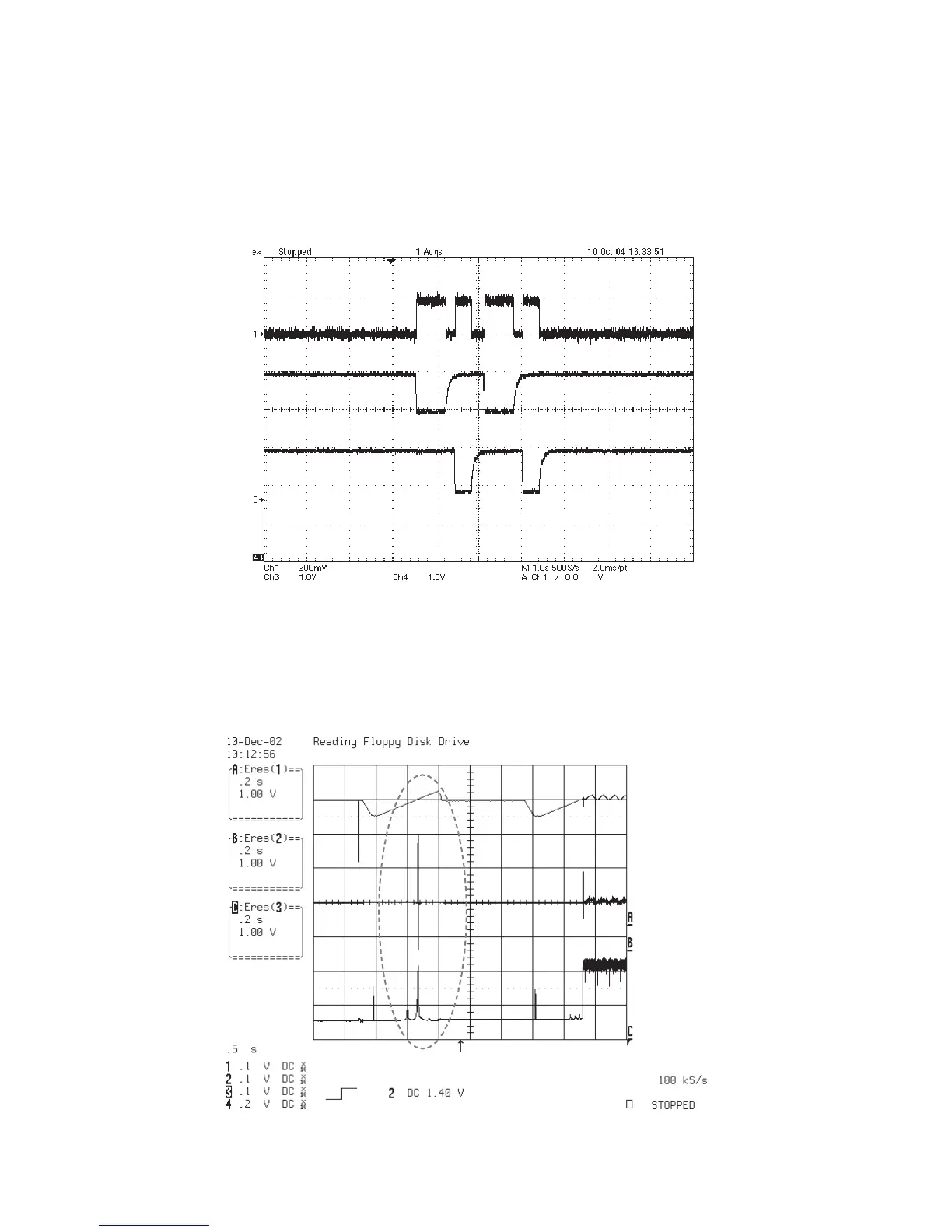

6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION)
FIG 7-2 (DVD)
7. DISC TYPE JUDGEMENT WAVEFORM
FIG 7-1
DCLK = 128MHz, Vp-p=2.2, Vmax=2.7V
F+
FE
RFL
MDI1(0V/180mV)
LD01(3.3V//2.3V)
LD02(3.3V/2.3V)
