3-14

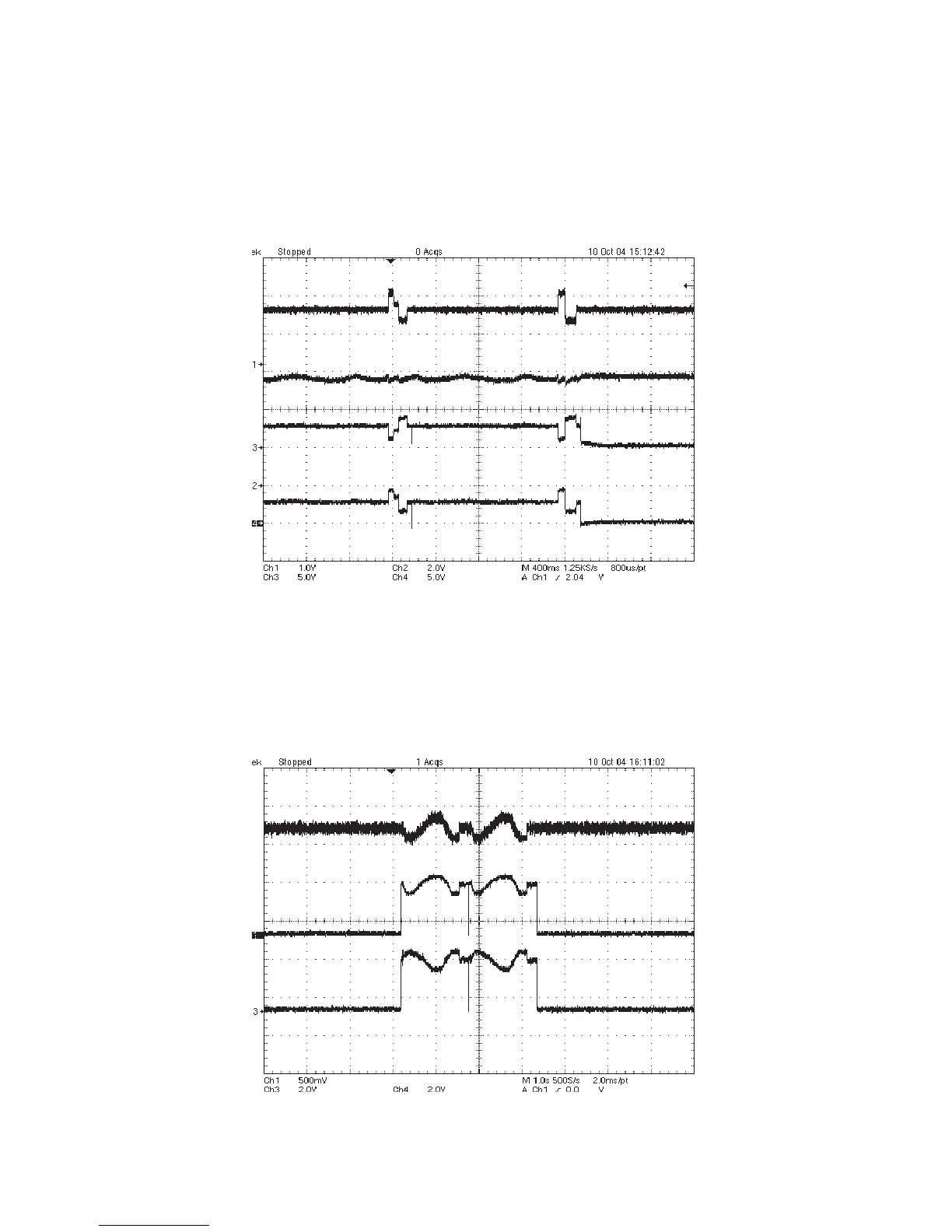

4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION)
FIG 4-1
5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION)
FIG 5-1
FOSO(1.5V/1.4V/1.3V)
F+(3.2V/2.7V/2.2V)
F-(3.2V/2.7V/2.2V)
FMSO(1.9V/1.4V/1.1V)
STBY(3.3V)
SL+(4.2V/2.8V/1.2V)
SL-(4.2V/2.8V/1.5V)
