3-13

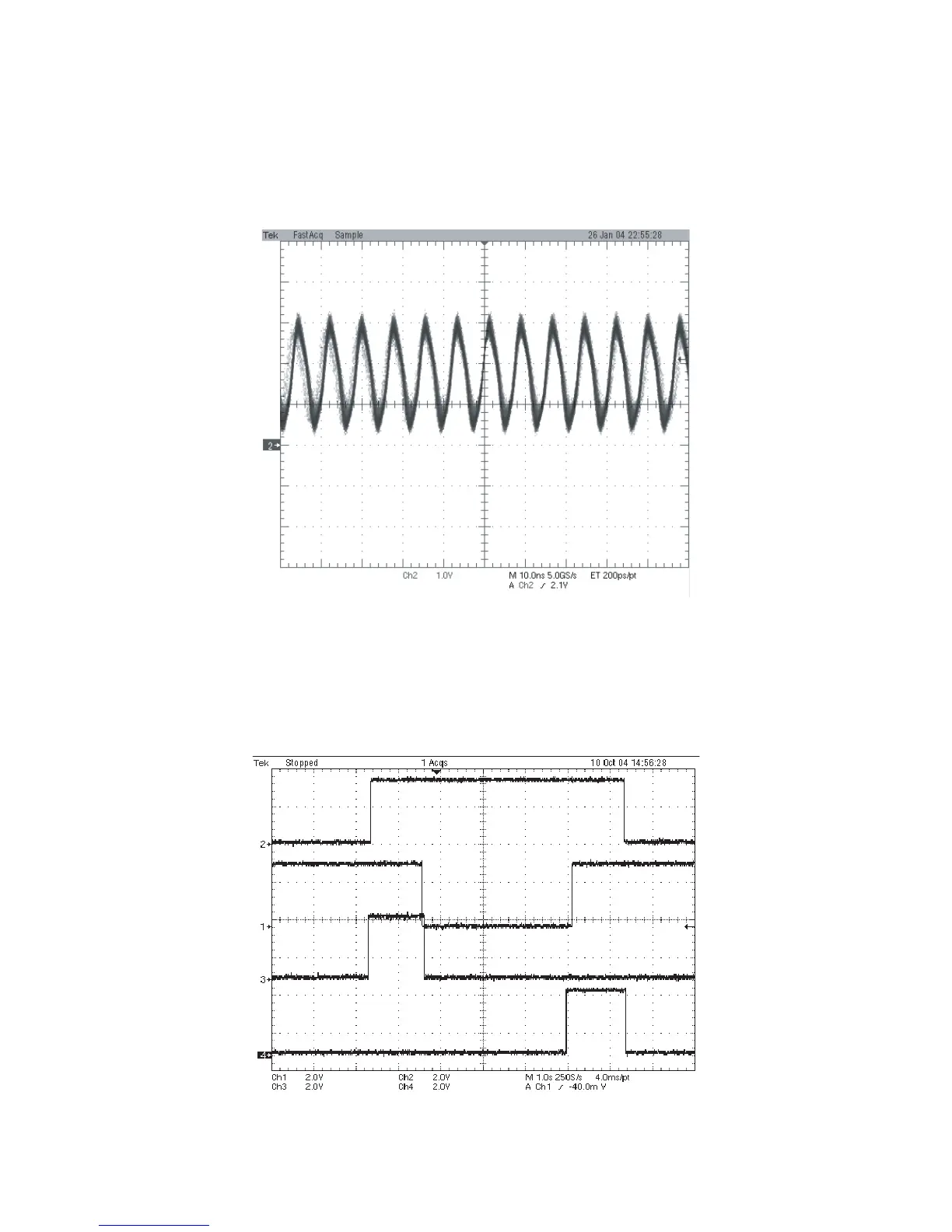

2. SDRAM CLOCK
FIG 2-1
3. TRAY OPEN/CLOSE SIGNAL
FIG 3-1
DCLK = 128MHz, Vp-p=2.2, Vmax=2.7V
TRIN
TROUT
TRCLOSE
TROPEN
