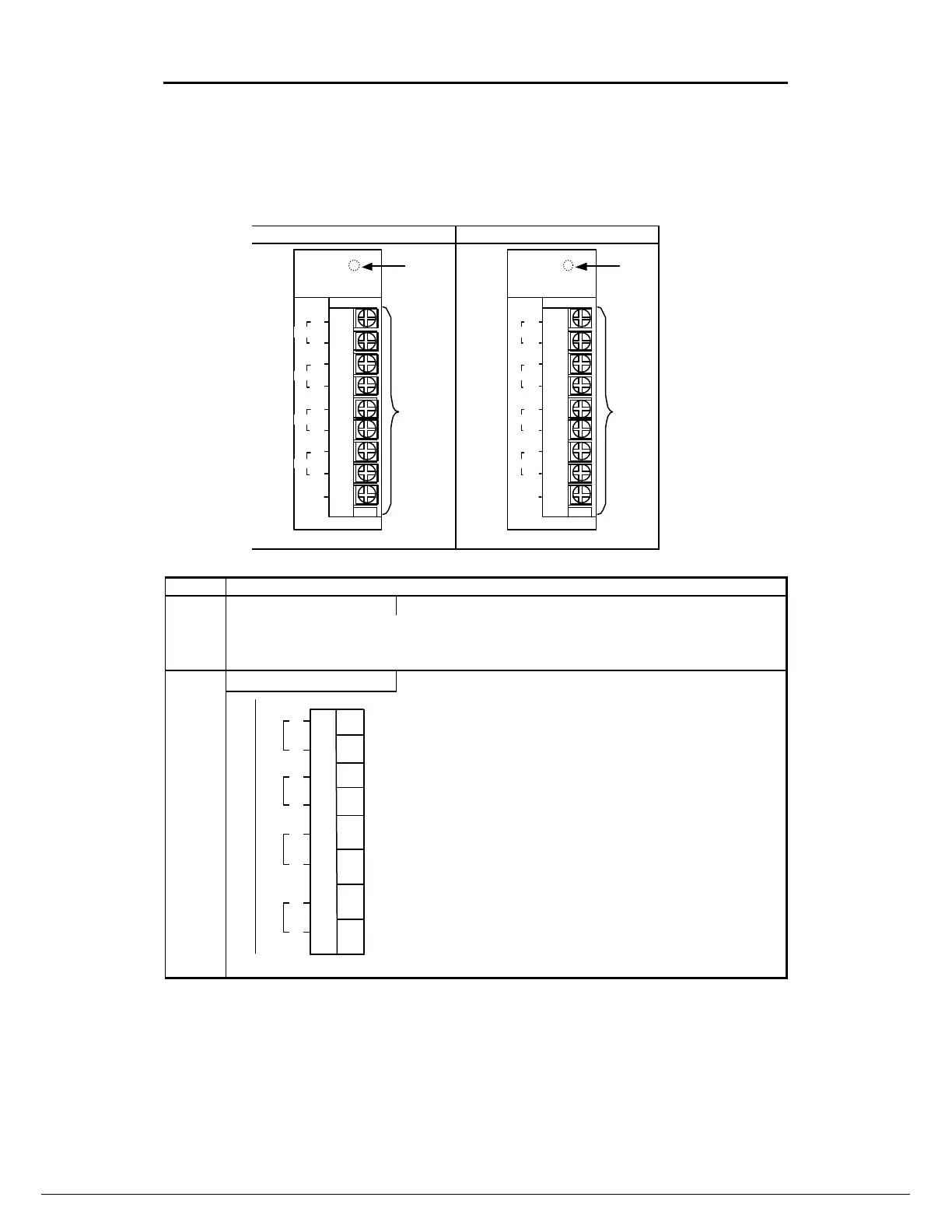

3) G6F-DA2V/G6F-DA2I
G6F-DA2V G6F-DA2I
No Descriptions
RUN LED ①
Indicates the operating condition of the D/A conversion module
* On: Normal operation
* Off : 5 VDC power off or D/A conversion module fault
External input terminal block
②
Terminal block which is output D/A conversion value
of each channel to external.
G6F-DA2V
V+
V-
CH0
G6F-DA2V
V+
V-
CH1
V+
V-
CH2
V+
V-
CH3
-10~+10V
RUN
①
②
G6F-DA2I
I+
I-
CH0
G6F-DA2I
I+
I-
CH1
I+
I-
CH2
I+
I-
CH3
4 ~ 20 ㎃
RUN
②
1
2
3
4
5
6
7
8
CH0
CH1
CH2
CH3
V+
V-
V+
V-
V+
V-
V+
V-
