Chapter 4. FUNCITION BLOCK
4 - 1
Chapter 4. FUNCTION BLOCK
This chapter shows function block for the D/A conversion module on the GMWIN.
A kind of function block is as follows
G3F-DA3V,G3F-DA3I G4F-DA3V,G4F -DA3I G4F-DA2V,G4F-DA2I G6F-DA2V,G6F-DA2I
No.
Local Remote Local Remote Local Remote Local Remote
Function
1
DA3AWR DAR33WR DA3AWR DAR3WR DA2AWR DAR2WR DA2AWR DAR62WR Writing D/A conversion (Array type)
2
DA3WR - DA3WR - DA2WR - DA2WR - Writing D/A conversion (Single type)
REMARK
1. Function block of the G3F-DA3V, G3F-DA3I, G4F-DA3V and G4F-DA3I are same
2. Function block of the G4F-DA2V, G4F-DA2I, G6F-DA2V and G6F-DA2I are same

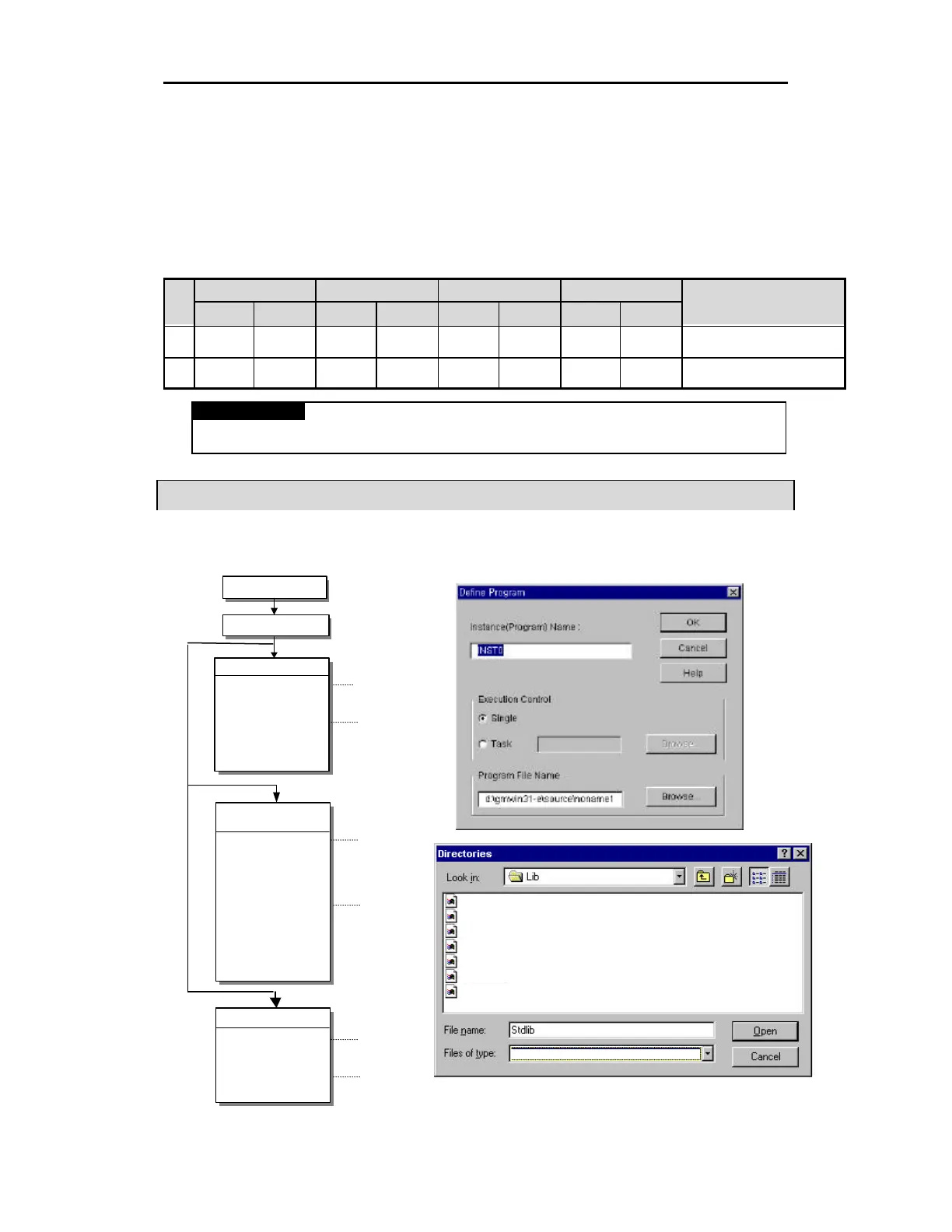

4.1 Insertion of the Function Block for D/A Conversion Module on the GMWIN
A function block can be inserted during the execution of the GMWIN according to the following procedure..
A function block can be inserted only when a project opens.
Project(P)
Library insert(I)
Loc al
Function block
Inserting
Select
G3F -DA3V/G3F-DA3I
1.Special.3fb
. DA3AWR
. DA3WR
2.Remote3.3fb
. DAR33WR
3.Remote4.3fb
. DAR33WR
G4F -DA2V/G4F-DA2I
G4F -DA2V/G4F-DA2I
1.Special.4fb
. DA3AWR
. DA3WR
. DA2AWR
. DA2WR
2.Remote4.4fb
. DAR3WR
. DAR2WR
3.Remote3.4fb
. DAR2WR
. DAR2WR
Remote
Function block
Inserting
COMMUNI.4fb
Mkstdlib.4fu
REMOTE3.4fb
REMOTE4.4fb
SPECIAL.4fb
Stdlib.4fb
Library Files(*.4f*)
Stdlib.4fu
G6F -DA2V/G6F-DA2I
1. Special.6fb
. DA2AWR
. DA2WR
2. Remote6.6fb
. DAR62WR
Local
Function block
Inserting
Remote
Function block
Inserting
Local
Function block
Inserting
Remote
Function block
Inserting
