Chapter 2. SPECIFICATIONS
2 - 7
2.4 Input/Output Conversion Characteristics
I/O characteristics are displayed as a slant of the line connecting offset value and gain value in converting an
digital signal from the external PLC into an analog signal(voltage or current).
Offset value and Gain value of D/A converter are fixed and should not be modified.

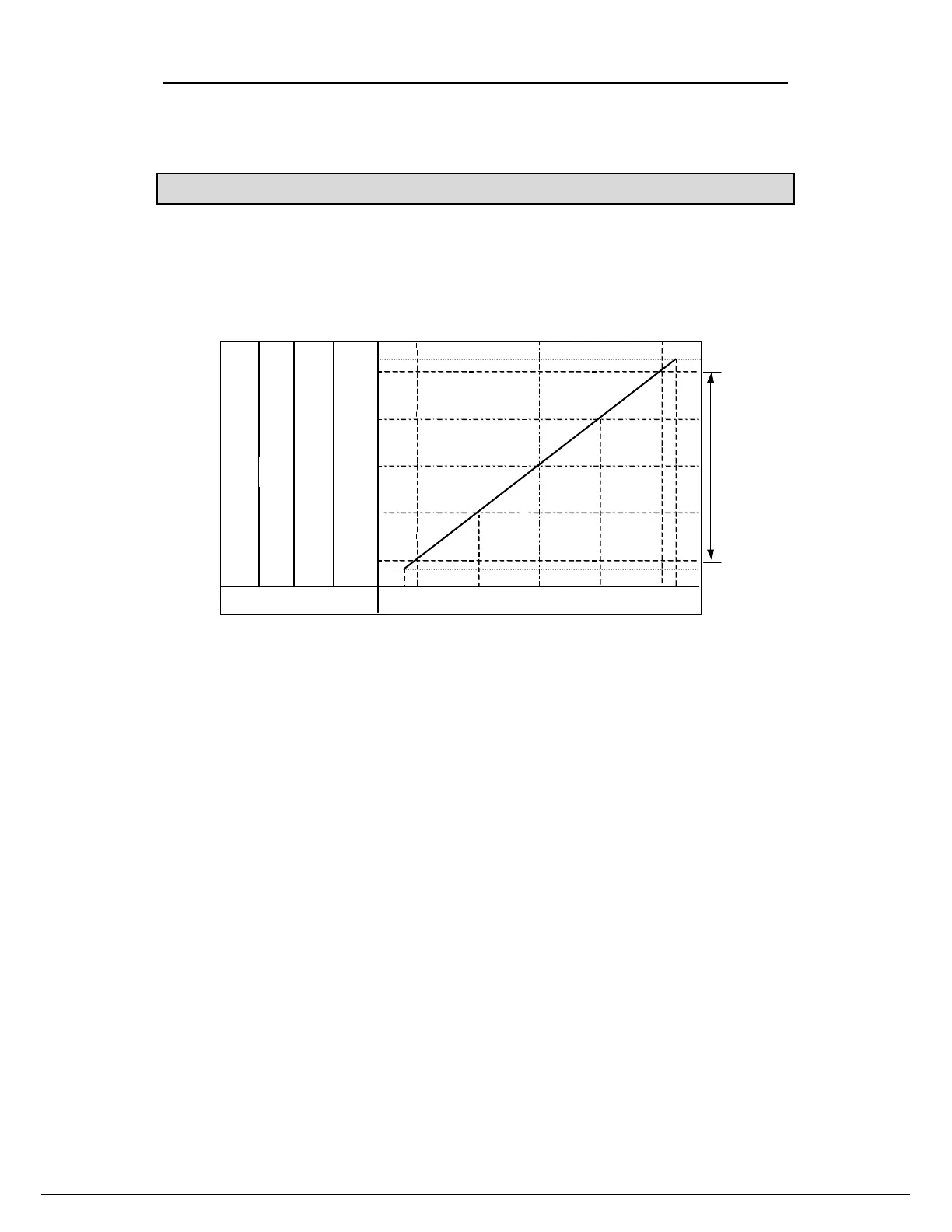

Input/ output conversion characteristic example is shown on Fig 2.1
[Fig 2.1] Input/ output conversion characteristic example
G3F-DA3V : Digital input value of 1 is equal to 2.5mV.
G4F-DA3V/G4F-DA2V/G6F-DA2V : Digital input value of 1 is equal to 5mV.
G3F-DA3I/G4F-DA3I/G4F-DA2I/G6F-DA2I : Digital Input value of 1 is equal to 4㎂.
4000
2000
0
Digital Input Value
4047
-48
-10V
0V
10V
-10.24V
10.24V
-
5V
5V
1000
3000
4mA
12mA
20.192mA
20mA
8mA
16mA
3.808mA
Analog output value
Practical Analog Output Value
0V
5V
10V
-0.12V
10.12V
2.5V
7.5V
