Chapter 8. MK PROGRAMMING
8 - 2
8.2 Application Programming
8.2.1 Programming for Controlling Inverter Speed with 5-step Analog Output Voltage

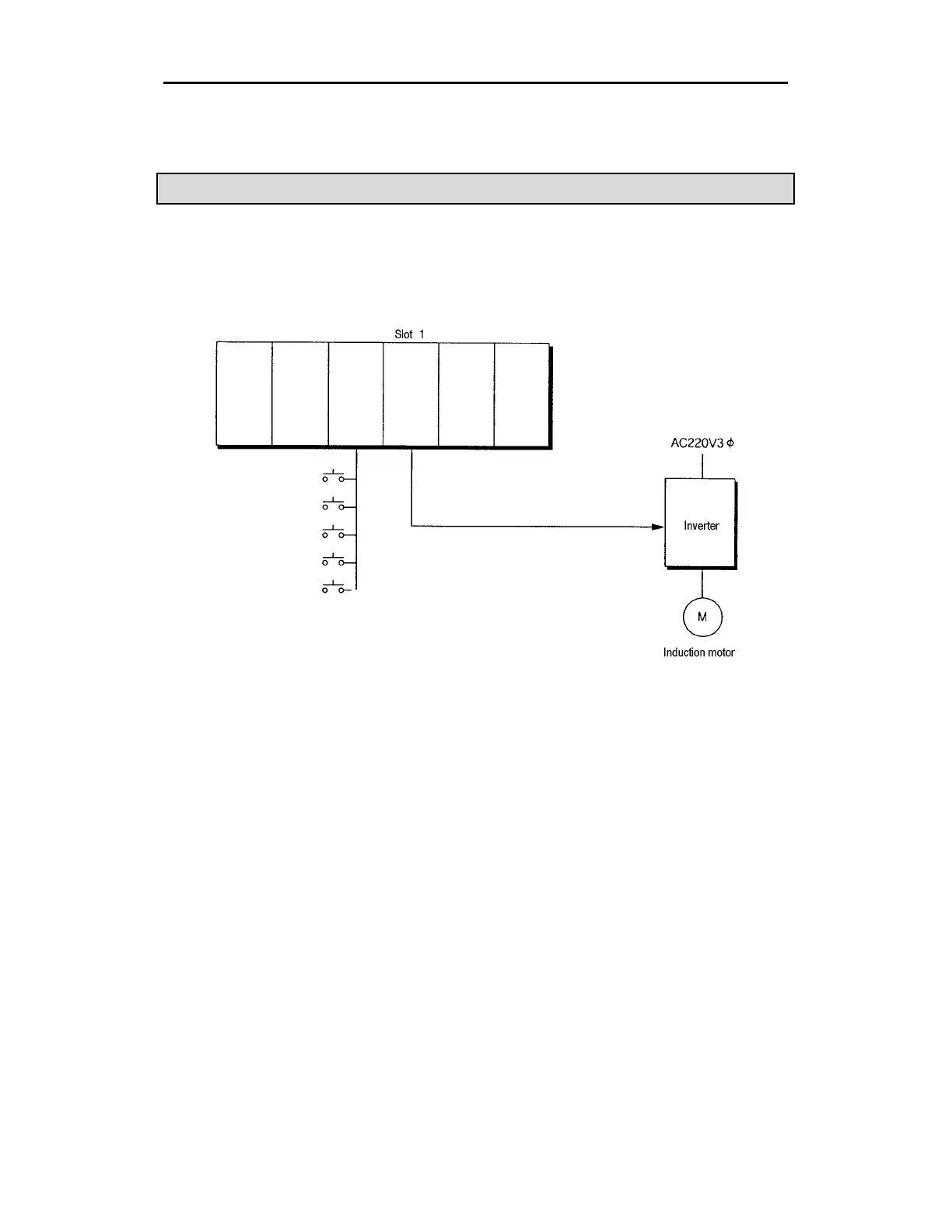

1) System Configuration
2) Initial Settings
(1) Enabled channel : channel 0
3) Descriptions of the Program
(1) P0001 turning On leads to output of "0"(-10 V) on channel 0.
(2) P0002 turning On leads to output of "1000"(-5 V) on channel 0
(3) P0003 turning On leads to output of "2000"(0 V) on channel 0.
(4) P0004 turning On leads to output of "3000"(5 V) on channel 0.
(5) P0005 turning On leads to output of "4000"(10 V) on channel 0.
(P0001)
(P0002)
(P0003)
(P0004)
(P0005)
Initial
GM4-
PA2A
K4P -
15AS
G4I-
D22A
G4F-
DA3V
Input digital value of “0”
Input digital value of “1000”
Input digital value of “2000”
Input digital value of “3000”
Input digital value of “4000”
