LG G4F-DA2V - Programming for Mounting D;A Conversion Module on Remote I;O Station

Chapter 5. GM PROGRAMMING
5 - 7
5.3 Programming for Mounting D/A Conversion Module on Remote I/O Station
This is programming for output D/A conversion value set by digital switch.

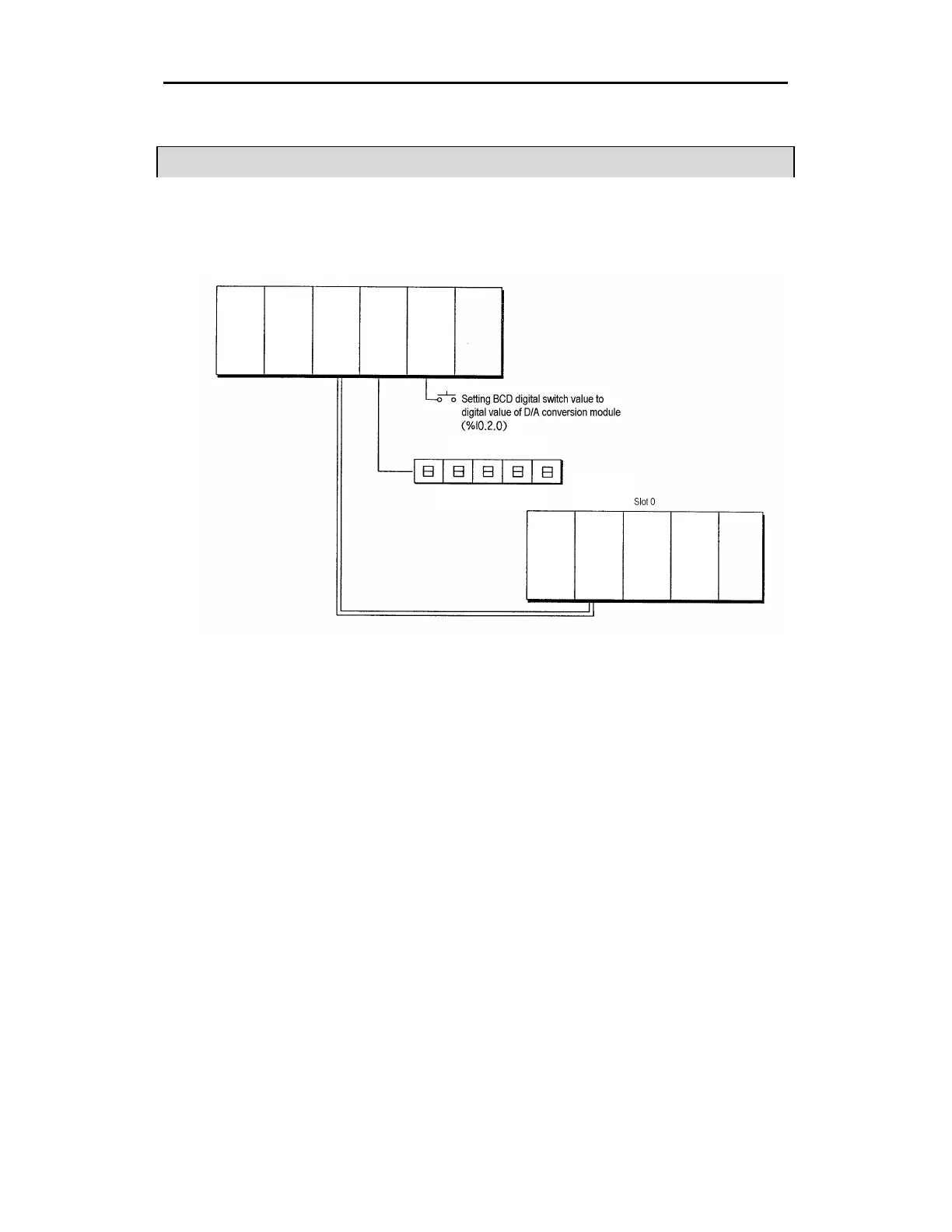

1) System Configuration
2) Descriptions of the Program
(1) %I0.2.0 turning On leads to displaying D/A conversion value set by digital switch on channel 0.
BCD digital switch
Remote
Station No.”1”
GM4-
PA1A
GM4-
CPUA
G4L-
FUEA
G4I -
D22A
G4I -
D22A
(%I0.1.0 ~ %I0.1.15)
GM4-
PA1A
G4L-
RBEA
G4F -
DA3V
