Chapter 8. MK PROGRAMMING
8 - 1
Chapter 8. MK PROGRAMMING
8.1 BASIC PROGRAMMING
- This shows the method of operation condition setting for internal memory on the D/A conversion module.
- The D/A conversion module is mounted on the slot 2.
- D/A conversion module occupies 16 I/O points.
8.1.1 G3F-DA3V / G3F-DA3I / G4F-DA3V / G4F-DA3I
8.1.2 G4F-DA2V / G6F-DA2V / G4F-DA2I / G6F-DA2I
Remark
·With G3F-DA3V, G3F-DA3I, G
4F-DA3V, G4F-DA3I, G4F-DA2V,G4F-DA2I, G6F-DA2V
and G6F-DA2I users can not define set data.

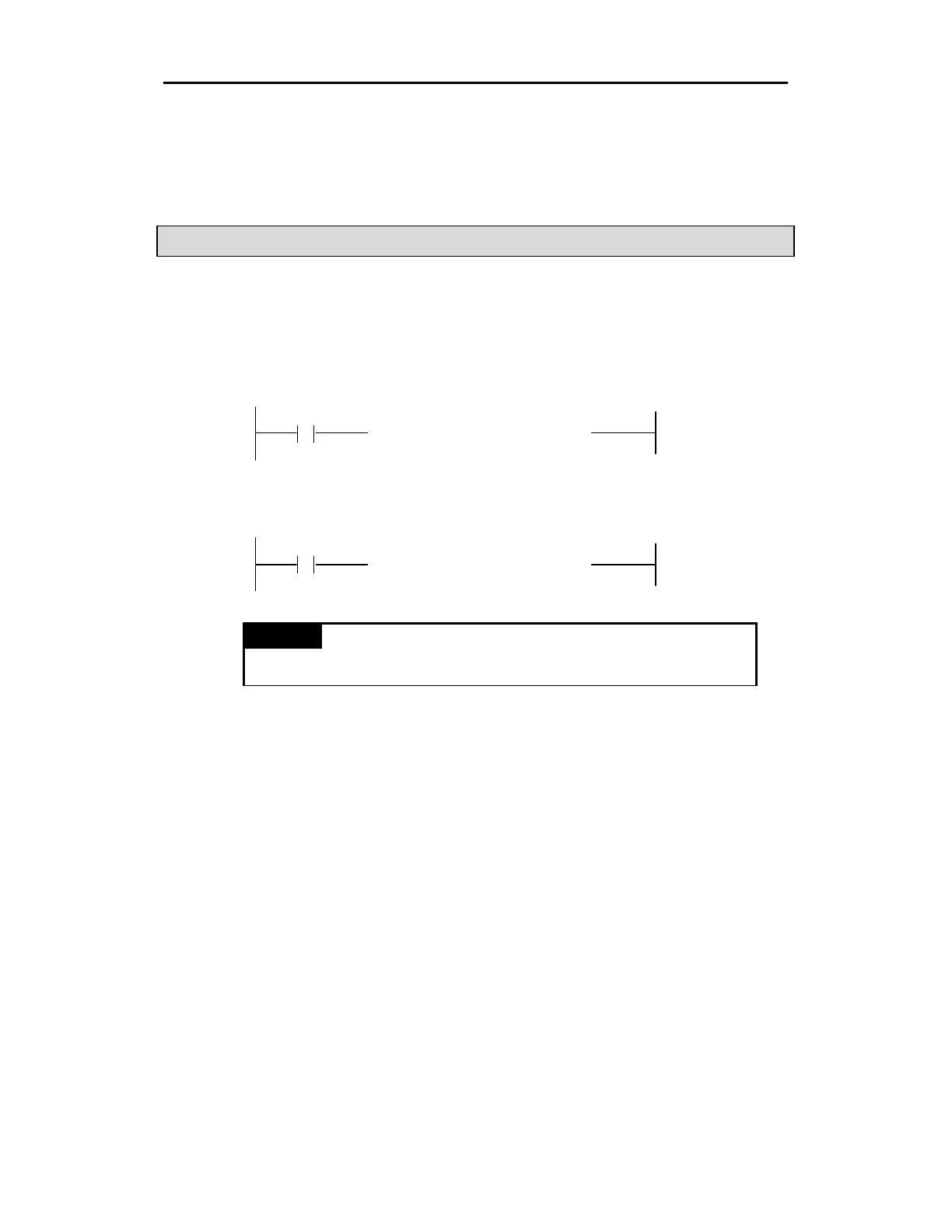

[ PUT 00002 00000 D0000 00008]
[ PUT 00002 00000 D0000 00004]
Input data stored on D0 to D7
by the “Execution condition”
is
written to convert into D/A
conversion
Execution
Condition
Input data stored on D0 to D7
by the “Execution condition”
is
written to convert into D/A
conversion
Execution
Condition
Execution
Condition
Input data stored on D0 to D3
by the “Execution condition”
is
written to convert into D/A
conversion
