Chapter 5. GM PROGRAMMING
5 - 2
Execution co ndition
Execution co ndition
Execution co ndition
Execution co ndition
Execution co ndition
Execution co ndition
Set digital input value of channel 0 to 2000
Set digital input value of channel 0 to 2500
Set digital input value of channel 0 to 3000
Set digital input value of channel 0 to 3500
Set digital input value of channel 0 to 4000
Base location number specification
Slot location number specification
Set digital data input
Error code display on
The write function block
processing
%I0.0.0
%I0.0.5
%I0.0.4
%I0.0.3
%I0.0.1
2000 CH0_DATA
%I0.0.2
2500 CH0_DATA
3000 CH0_DATA
3500 CH0_DATA
40000 CH0_DATA
DAWR
DA3AWR
0
1
CH0_DATA
CH0_STAT

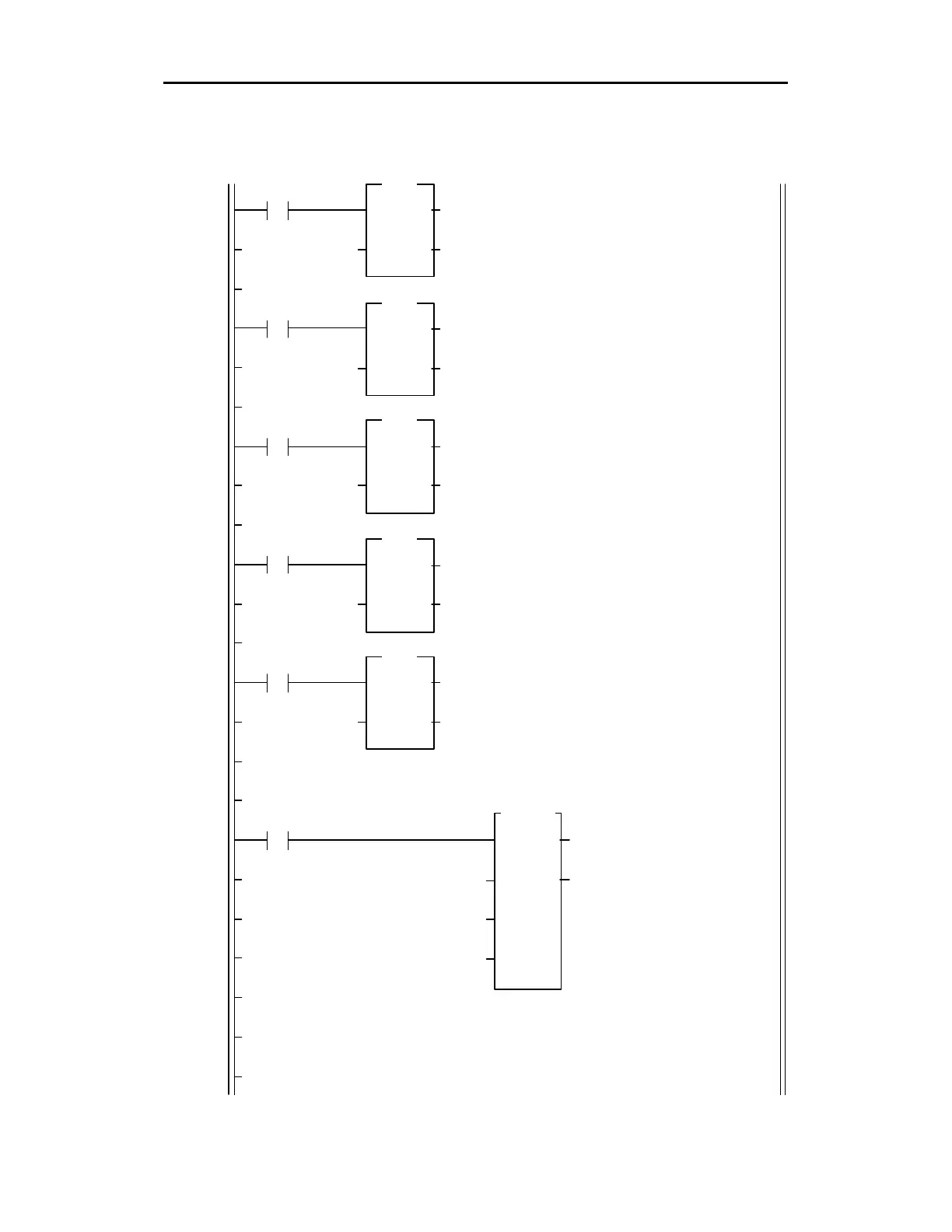

4) Program
MOVE
EN
IN1
EN0
OUT
REQ
BASE
SLOT
DATA
STAT
DONE
MOVE
EN
IN1
EN0
OUT
MOVE
EN
IN1
EN0
OUT
MOVE
EN
IN1
EN0
OUT
MOVE
EN
IN1
EN0
OUT
ROW 0
ROW 1
ROW 2
ROW 3
ROW 4
ROW 5
ROW 6
ROW 7
ROW 8
ROW 9
ROW 10
ROW 11
ROW 12
ROW 13
ROW 14
ROW 15
ROW 16
ROW 17
ROW 18
ROW 19
ROW 20
ROW 21
ROW 21
