Chapter 8. MK PROGRAMMING
8 - 4
8.2.2 Programming for Displaying D/A Conversions which is Set by Digital Switch

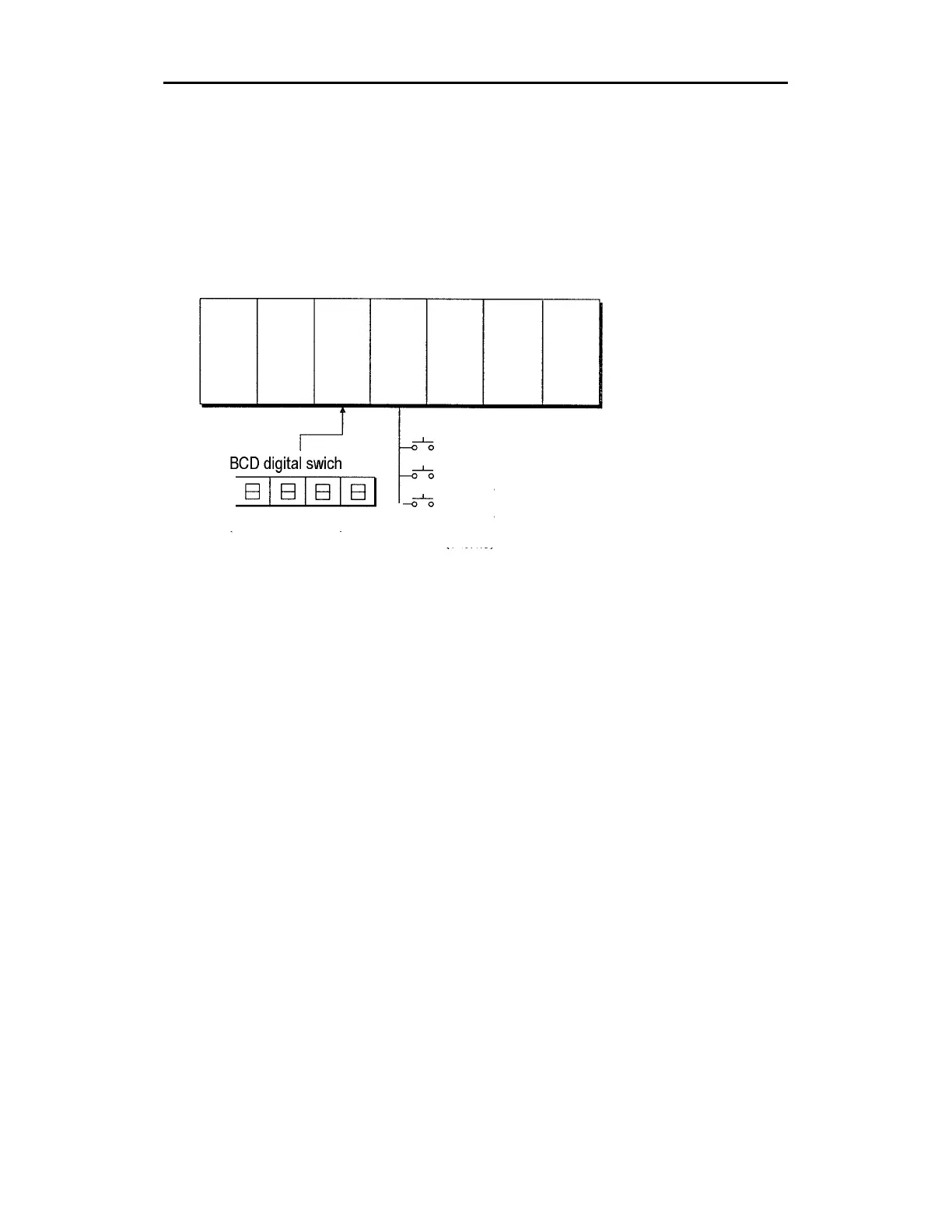

1) System Configuration
2) Initial Settings
(1) Enabled channel : channel 0, 1
3) Descriptions of the Program
(1) P0021 turning On leads to output of the values by digital switch on channel 0 of D/A module.
(2) P0022 turning On leads to output on channel 1.
(3) P0023 turning On leads to initialization of digital input value to "0" on channel 0 and channel 1.
(P0000 ~ P00F)
(P0012)
(P0013)
(P0011)
GM3-
PA2A
K7P -
30AS
G3I-
D22A
G3I-
D22A
G3F-
DA3V
Input the digital value of channel 0
Input the digital value of channel 1
Input the digital value “0” of channel 0 and 1
