1. Explanation for PWB circuit
1-1. Power circuit
1. GC-A207W/R207W

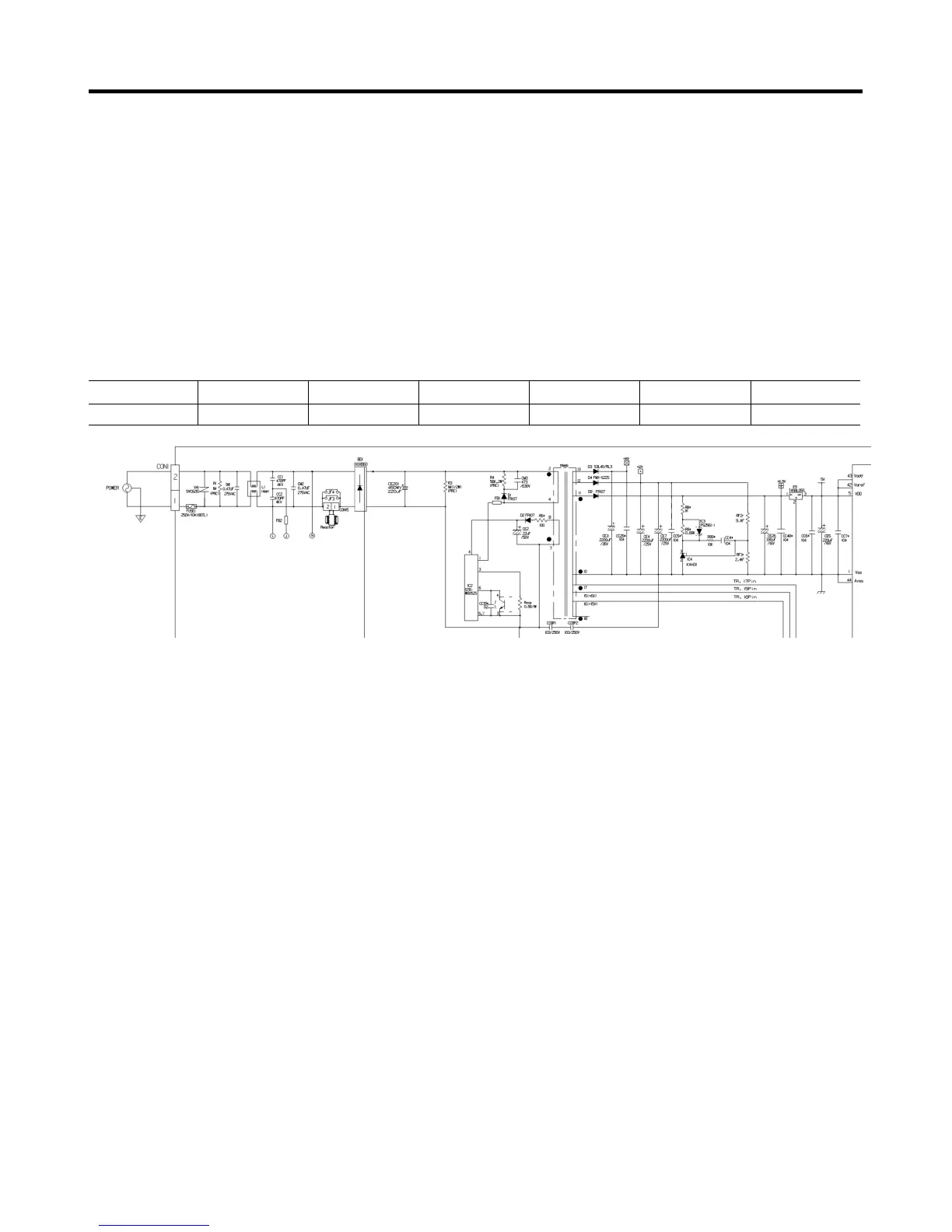

Power circuit consists of SMPS (SWITCHING MODE POWER SUPPLY) power. The SMPS consist of the rectifying part
(BD1, CE1) converting AC voltage to DC voltage, the switching part (IC2) switching the converted DC voltage, transformer
transferring energy of the primary side of the switching terminal to the secondary side and the feedback part (IC3, IC4)
transferring it to the primary side.
Caution : Since high voltage (DC310V) is maintained at the power terminal, please take a measure after more than 3
minutes have passed after removing power cords in the abnormal operation of a circuit.
Voltage of every part is as follows:
EXPLATION FOR MICOM CIRCUIT
- 20 -
Part VA1
CE201
CE3 CE4 CE26 CE5
Voltage 230 Vac 310 Vdc 16 Vdc 12 Vdc 6.5 Vdc 5 Vdc
