2. HANDLE
3. SHROUD, GRILLE FAN
1) Loosen two screws after disconnecting a cap screw of a
grille fan(U) with a balde screwdriver.
2) Disassembly of a grille fan(U) : Pull forward after
opening hook at
HOW TO DISASSEMBLE AND ASSEMBLE
1）
①

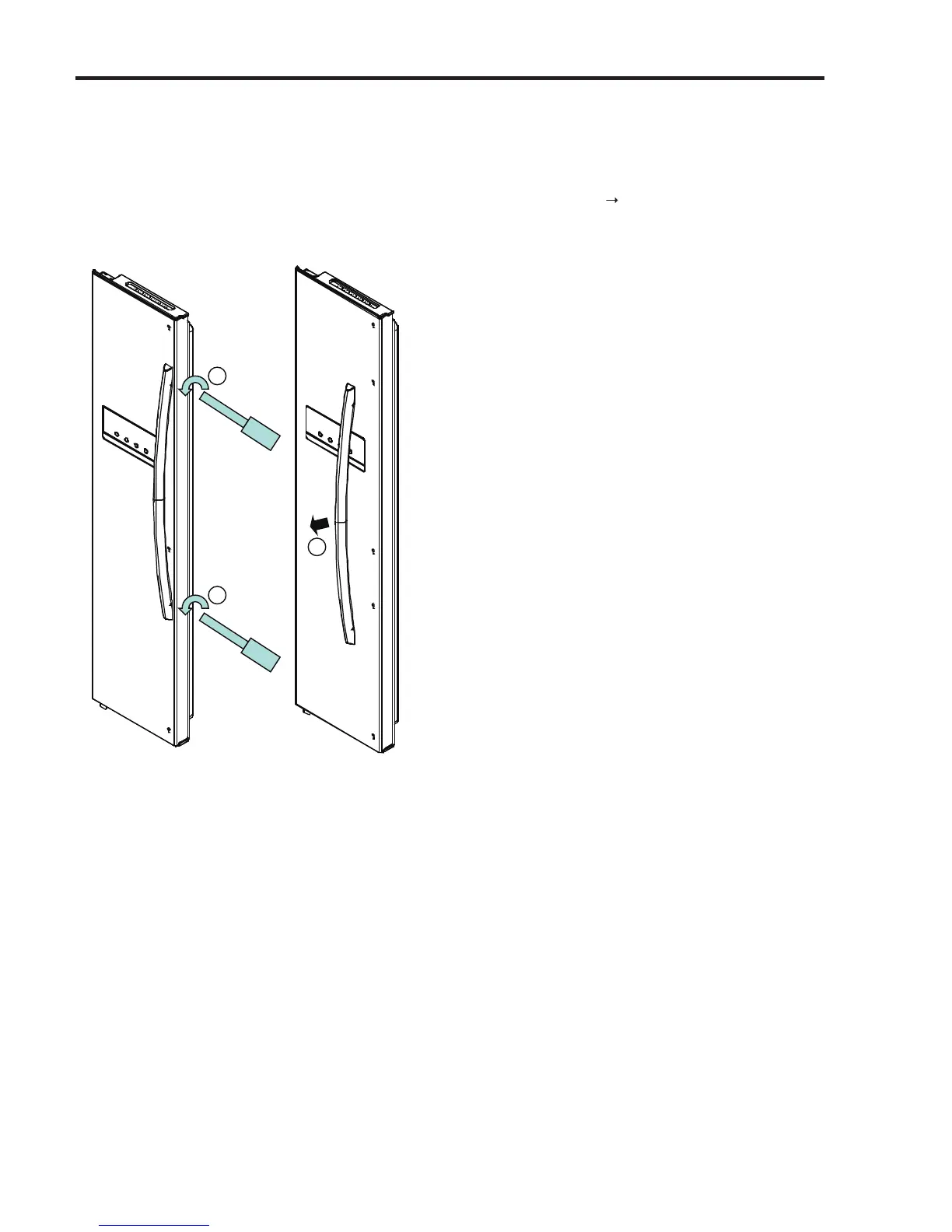

Lift the handle up with hands in the direction of arrow
②, then pull out to separate.
2）
-93-
Revolve the screw in the direction of arrow to loose
2
1
1
part with a blade screwdriver.
3) Disconnect housing A of a grille fan (L) from the main
body.
4) Disassembly of a grille fan (L) : Hold upper part of a
grille fan(L) and pull forward carefully.
5) Loosen two screws.
6) Disassembly of shroud. F(U) : Disconnect housing of B
after removing two rail guides with a blade screwdriver.
7) Disassembly of shroud. F(U) : Hold upper part and pull
forward.
8) Check foam PU sticking conditions around a shroud,
F(U) and F(L) during assembling. If damaged, torn or
badly sticked, assemble with a new one after sealing
well.
To Next Page
