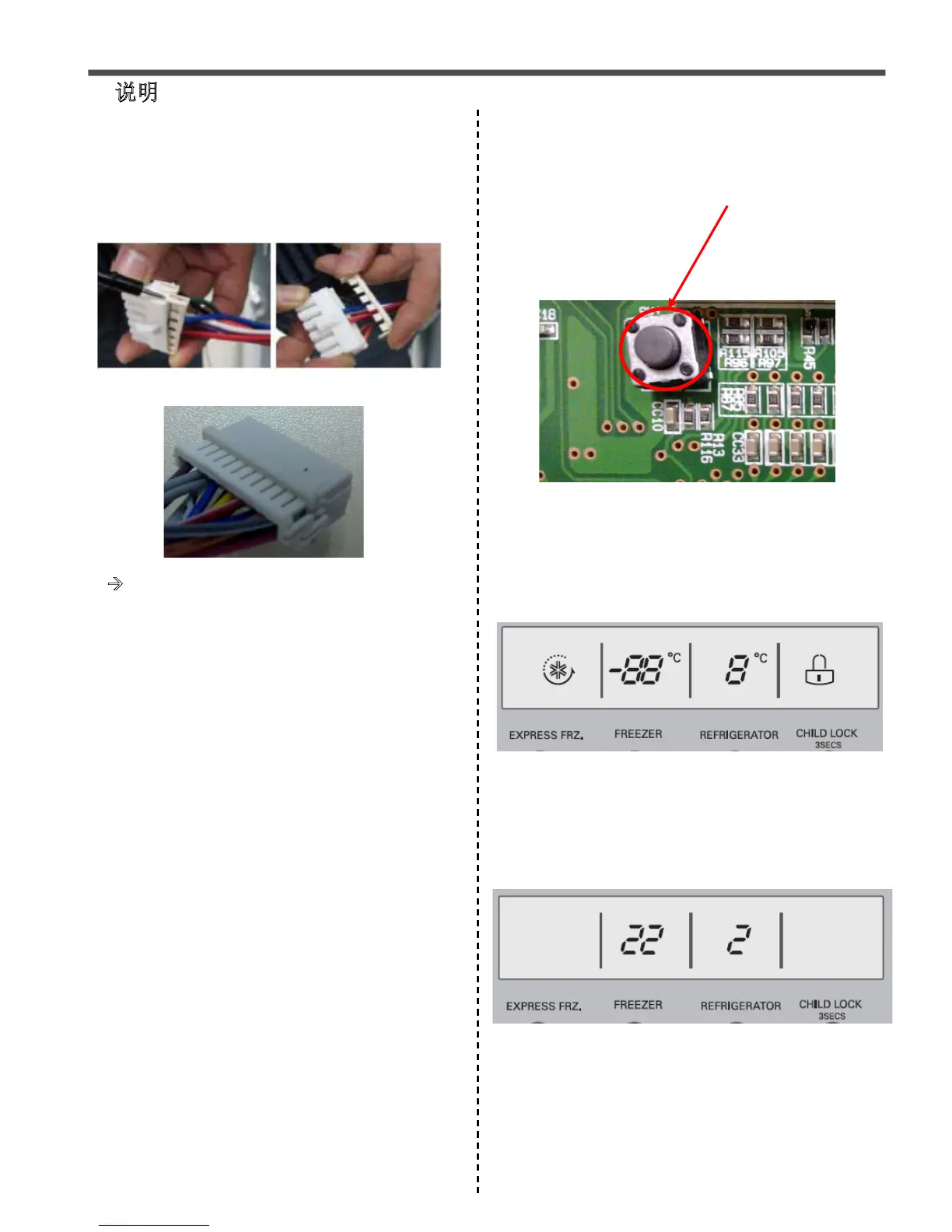

1. How To Remove Terminal Position
Assurance (TPA)
After measure the values,
you should put in the TPA again.
TEST BUTTON
3. How To Start Test Mode
Push the TEST button on the Main PWB,
You can start the TEST MODE.
*1 time : Comp / Damper / All FAN on,
(All things displayed)
2. Wire Color
BL: Blue
WH: White
BO: Bright Orange
BK: Black
BN: Brown
PR: Purple
RD: Red
GN: Green
SB: Sky Blue
GY: Gray
RD/WH: Red/White
BL/WH: Blue/White
BK/WH: Black/White
GN/YL: Green/Yellow
BO/BL: Bright Orange/Blue
GY/WH: Grey/White
GN/YL: Gr
een/Yellow
BN/WH: Brown/White
YL/BK: Yellow/Black
RD/YL: Red/Yellow
2.1说明
* 2 times : Damper closed
* 3 times : Return to initial status
* AC TPA
* DC TPA
- 51-
