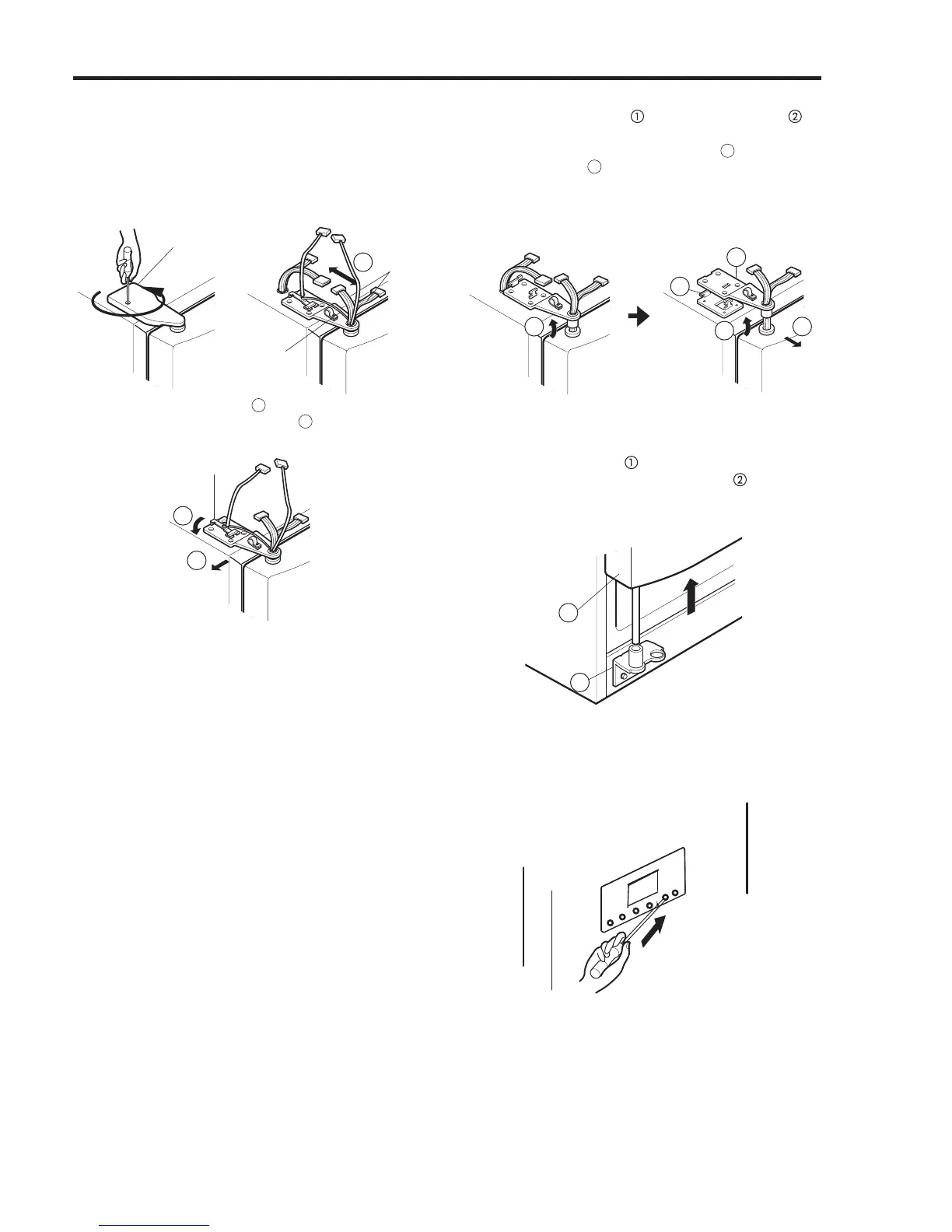

1. DOOR
1) Remove a fr eezer doo . r
(1) Loosen hinge cover screw of freezer door and remove
cover.
Disconnect all connecting lines except earthing cord.
(2) T urn hinge lever in arrow A direction until it is
loosened and take it out in arrow B direction.
Note : • When disconnecting refrigerator doo r, turn hinge
lever counterclockwise.
• If hinge lever or bracket hinge pin is deformed
during assembling freezer and refrigerator doors,
fix two screws (Tap Tite Scre w, M6: Hinge, L fixing
screw) in the hole of upper hinge.
(3) Disconnect upper hinge
from a hinge supporter
by grasping the front part of upper hinge and lifting up
(Hinge Assembly, U) in arrow direction A and pull
forward in arrow B direction. Be careful as the door
may be fallen down.
(4) Lift up the freezer door
in arrow direction and
disconnect the door from the lower hinge
. Don’t pull
a door forward.
(5) Assembly is the reverse order of disassembly
HOW TO DISASSEMBLE AND ASSEMBLE
- 92 -
A
A
B
1
2
1
2
Cover, Hinge
2
Connecting
Line
Earthing
Cord
Lever, Hinge
A
B
（5）Hit the 4 buttons of the display with a (-) screw driver
to loose it. Then pry the display’s cover from the gap
between the buttons and the display, pull out the display
circuit board to separate.
2.Display
display button
To Next Page
