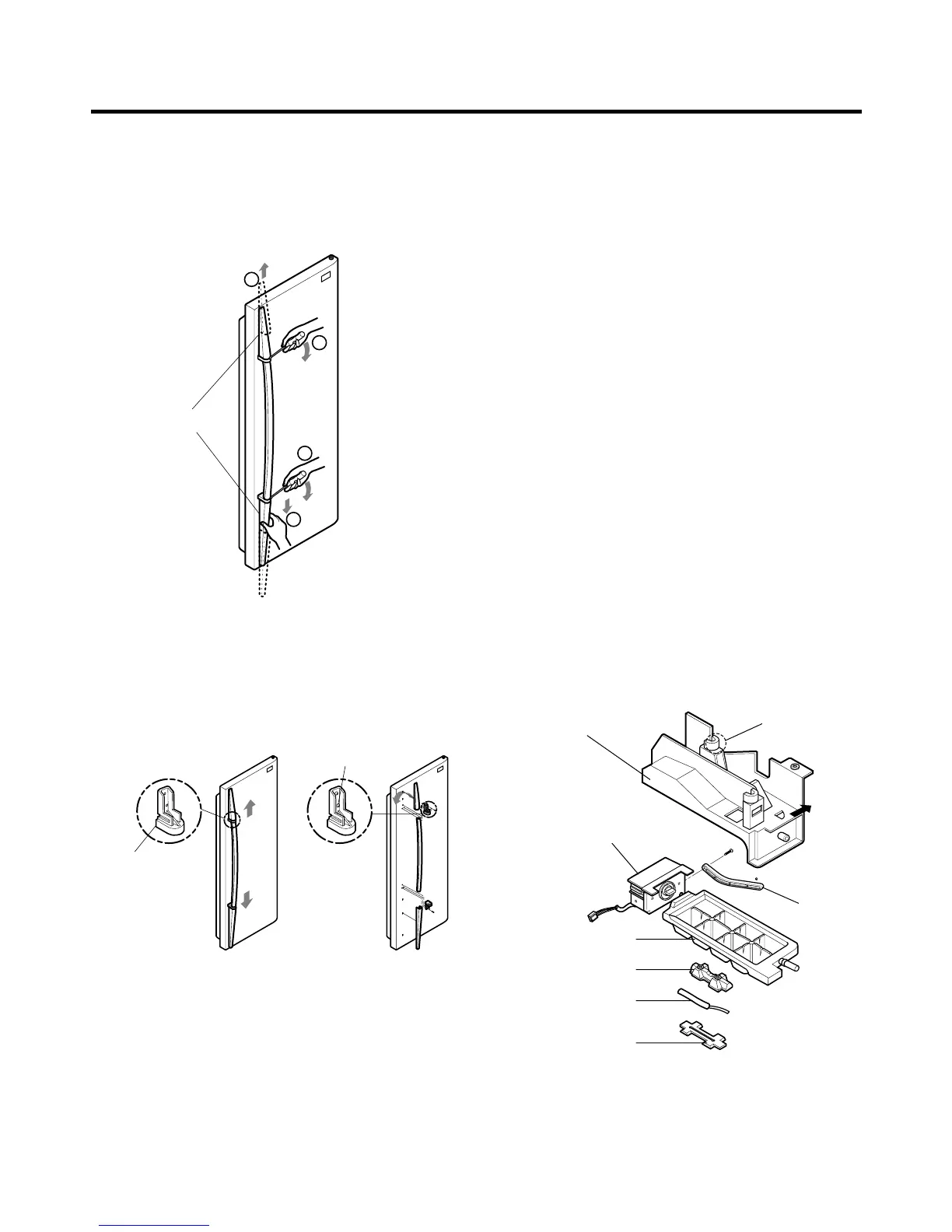

2. HANDLE
1) Put blade screwdriver into a groove on the side of a
Deco handle and lift up a little bit in arrow direction
and push up with hand in arrow direction and
disconnect.
2) Put blade screwdriver into a groove on the side of a
DECO handle and lift up in arrow direction and push
down with hand in arrow direction and disconnect.
3) Push up a piece handle in arrow direction with hand
and disconnect.
4) Turn screw in arrow direction with a cross driver and
disconnect.
3. SHROUD, GRILLE FAN
1) Loosen two screws after disconnecting a cap screw of a
grille fan(U) with a balde screwdriver.
2) Disassembly of a grille fan(U) : Pull forward after
opening hook at ➝ part with a blade screwdriver.
3) Disconnect housing A of a grille fan (L) from the main
body.
4) Disassembly of a grille fan (L) : Hold upper part of a
grille fan(L) and pull forward carefully.
5) Loosen two screws.
6) Disassembly of shroud. F(U) : Disconnect housing of B
after removing two rail guides with a blade screwdriver.
7) Disassembly of shroud. F(U) : Hold upper part and pull
forward.
8) Check foam PU sticking conditions around a shroud,
F(U) and F(L) during assembling. If damaged, torn or
badly sticked, assemble with a new one after sealing
well.
4. ICEMAKER ASSEMBLY
1. Dispenser Model
1) How to disassemble:
(1) Remove ice bank from the freezer compartment.
(2) Loosen two screws on the upper part of icemaker
bracket.
(3) Disconnect icemaker bracket so that it can slide
forward.
(4) Disconnect icemaker housing and sensor housing.
(5) Disconnect icemaker horizontally by pressing bracket
hook part. ( Don’t disassemble further. The set value
may be changed.)
2) How to assemble : The assembly is the reverse order of
the above disassembly.
Note : When the ice tray is not horizontal after assembly,
assembly must be wrong. Check and assemble
again.
HOW TO DISASSEMBLE AND ASSEMBLE
- 132 -
