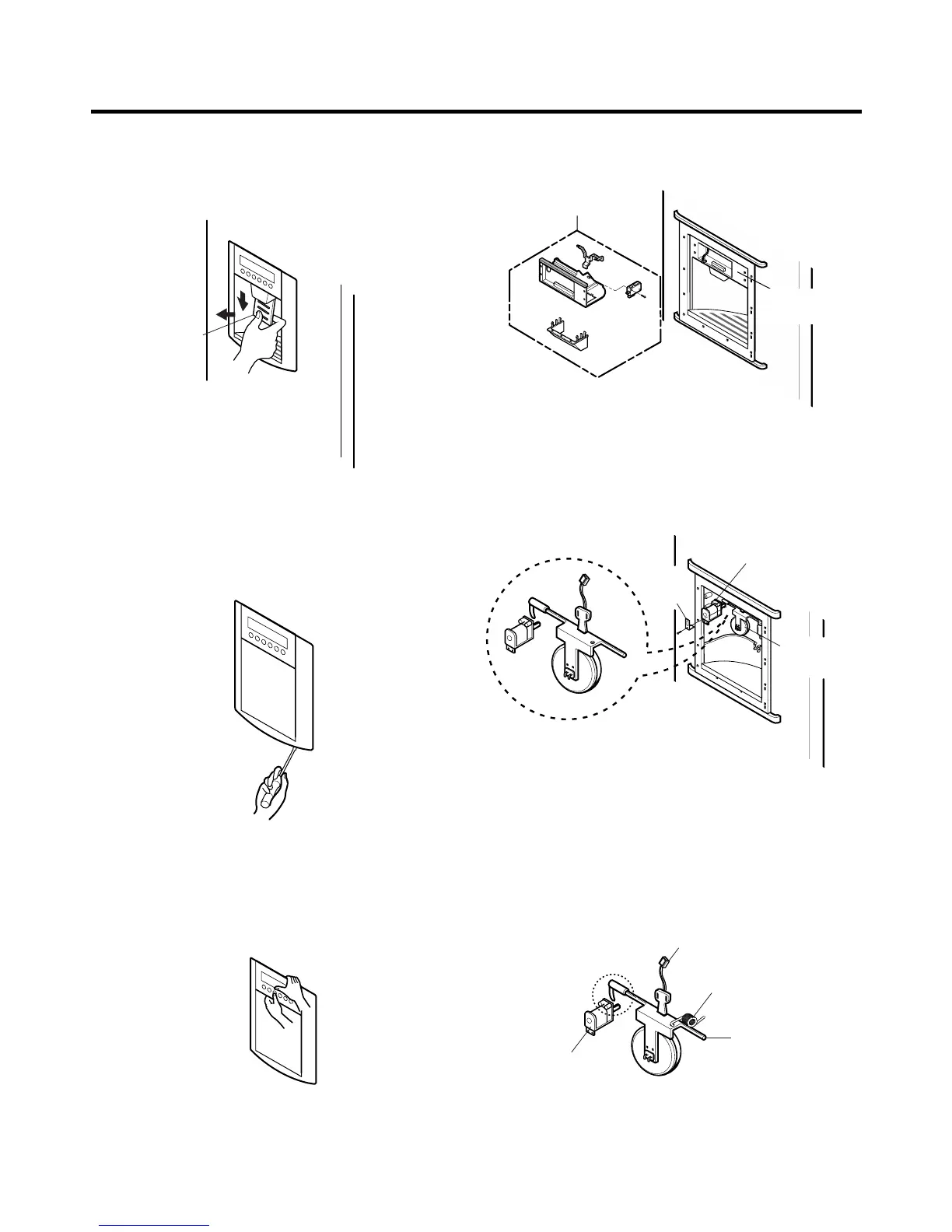

5. DISPENSER
1) Disconnect button assembly by pulling down until it
stops and then pulling forward.
2) Remove display frame Assembly by making a gap
between a display frame Assembly. and funnel
Assembly. with a balde screwdriver and pulling it
forward. The cover dispenser is fixed with a hook.
3) Display Assembly can be disconnected by pressing the
upper part of a cover dispenser and pushing a display
Assembly. after disconnecting display frame Assembly
housing.
4) Loosen four screws with a phillips screwdriver and pull a
funnel Assembly to disconnect.
5) Duct cap Assembly is disconnected if hold lever
connecting screw is loosened with a phillips screwdriver.
6) For assembling a duct cap Assembly, insert one end of
a spring into the right hole of dispenser lever, and insert
the other end into the right hole in upper part of
dispenser. And then assemble a holder lever after fixing
a holder at a solenoid Assembly working part.
HOW TO DISASSEMBLE AND ASSEMBLE
- 133 -
