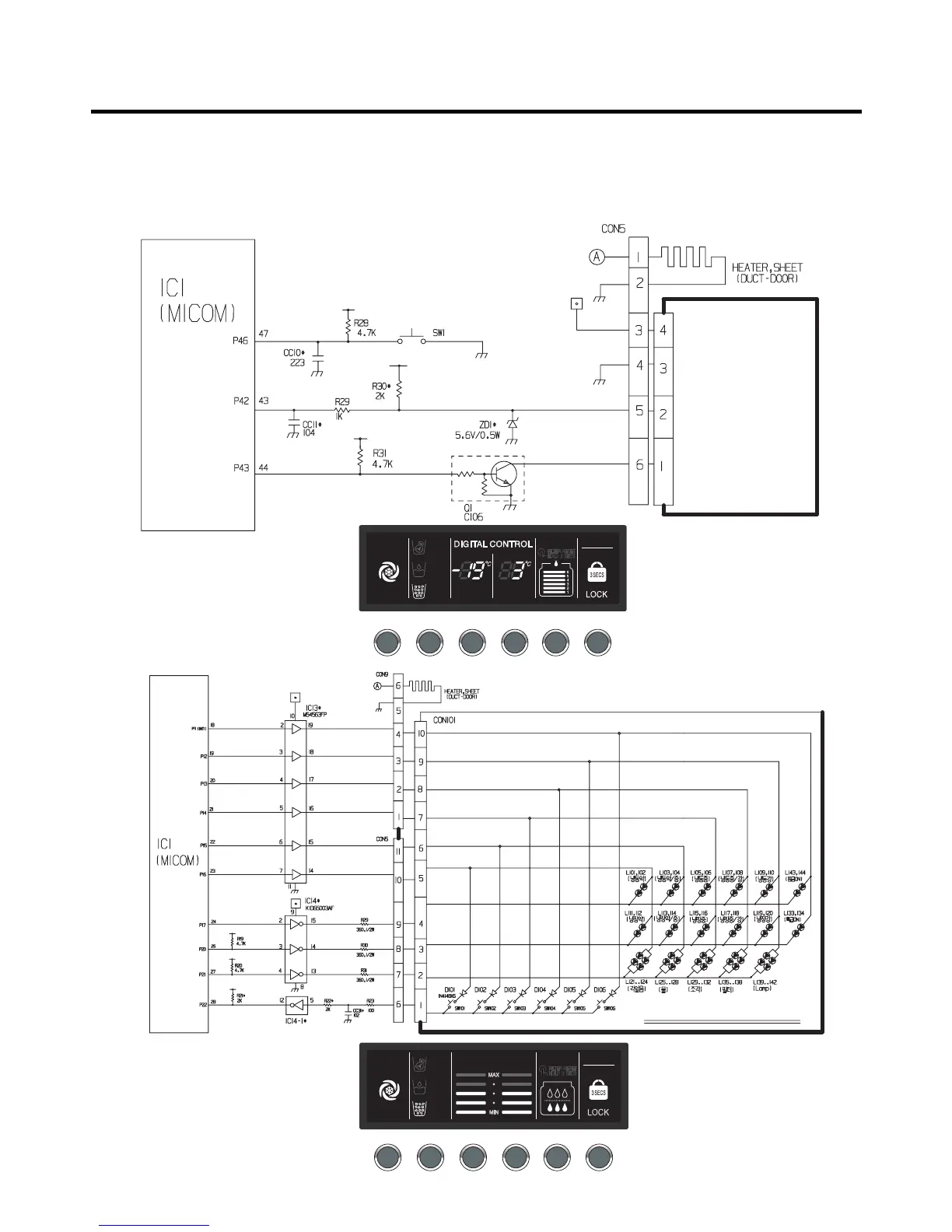

1-11. Key Button Input and Display Lighting Circuit(Bar-LED, Dot-LED)
This circuit is to judge the work of function control button on the operation panel and to light each function indication led
(LED module). It is driven by SCAN method.
EXPLATION FOR MICOM CIRCUIT
- 57 -
<GC-P/L207: 88-LED>
<GC-P/L207: Bar-LED>
PCB ASSEMBLY, DISPLAY
PWB ASSEMBLY, DISPLAY
EXPRESS FRZ DISPENSER FREEZER REFRIGERATOR FILTER LOCK
EXPRESS
FRZ
CUBE
WATER
CRUSH FRZ TEMP REF TEMP
FILTER STATUS DISPENSER
BUTTON
ON
EXPRESS FRZ DISPENSER FREEZER REFRIGERATOR FILTER LOCK
FRZ TEMP REF TEMP
FILTER STATUS DISPENSER
BUTTON
EXPRESS
FRZ
ON
CUBE
WATER
CRUSH
