MICOM FUNCTION
- 28 -

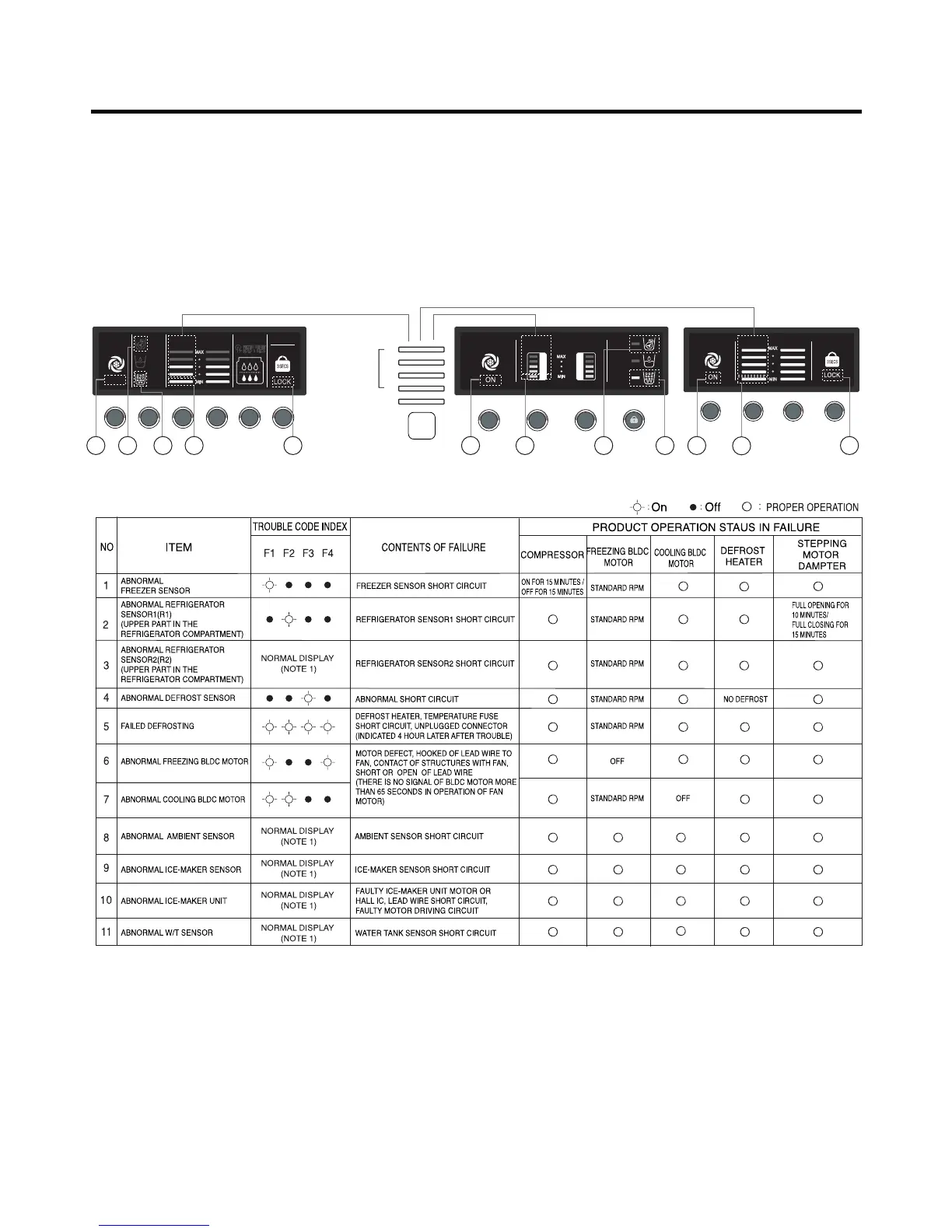

2-13. Function of Trouble Diagnosis(Bar-LED, Dot-LED)
1. Function of trouble diagnosis is to make the repair service easy when the refrigerator is out of order during service.
2. The function control button does not work but the recognition sound is heard when the refrigerator is out of order.
3. It returns to normal conditions when trouble code led is off. (reset)
4. Trouble code is indicated by the freezing temperature indicator led in the refrigerator display. All leds except trouble code
are off.
DISPENSER
Lock: Hold 3 Secs
EXPRESS FRZ FREEZER REFRIGERATOR
CUBE
WATER
CRUSH
FRZ TEMP REF TEMP
EXPRESS FRZ
EXPRESS FRZ DISPENSER FREEZER REFRIGERATOR FILTER LOCK
FRZ TEMP REF TEMP
FILTER STATUS DISPENSER
BUTTON
EXPRESS
FRZ
ON
CUBE
WATER
CRUSH
EXPRESS FRZ
CHILD LOCK
LOCKEXPRESS FRZ FREEZER REFRIGERATOR
FRZ TEMP REF TEMP
C C E FE F G GD C D
FRZ
TEMP
Trouble Code
Index
Trouble Code Trouble Code
Trouble Code
F4
F3
F2
F1
G
To Next Page
