LG GC-P207

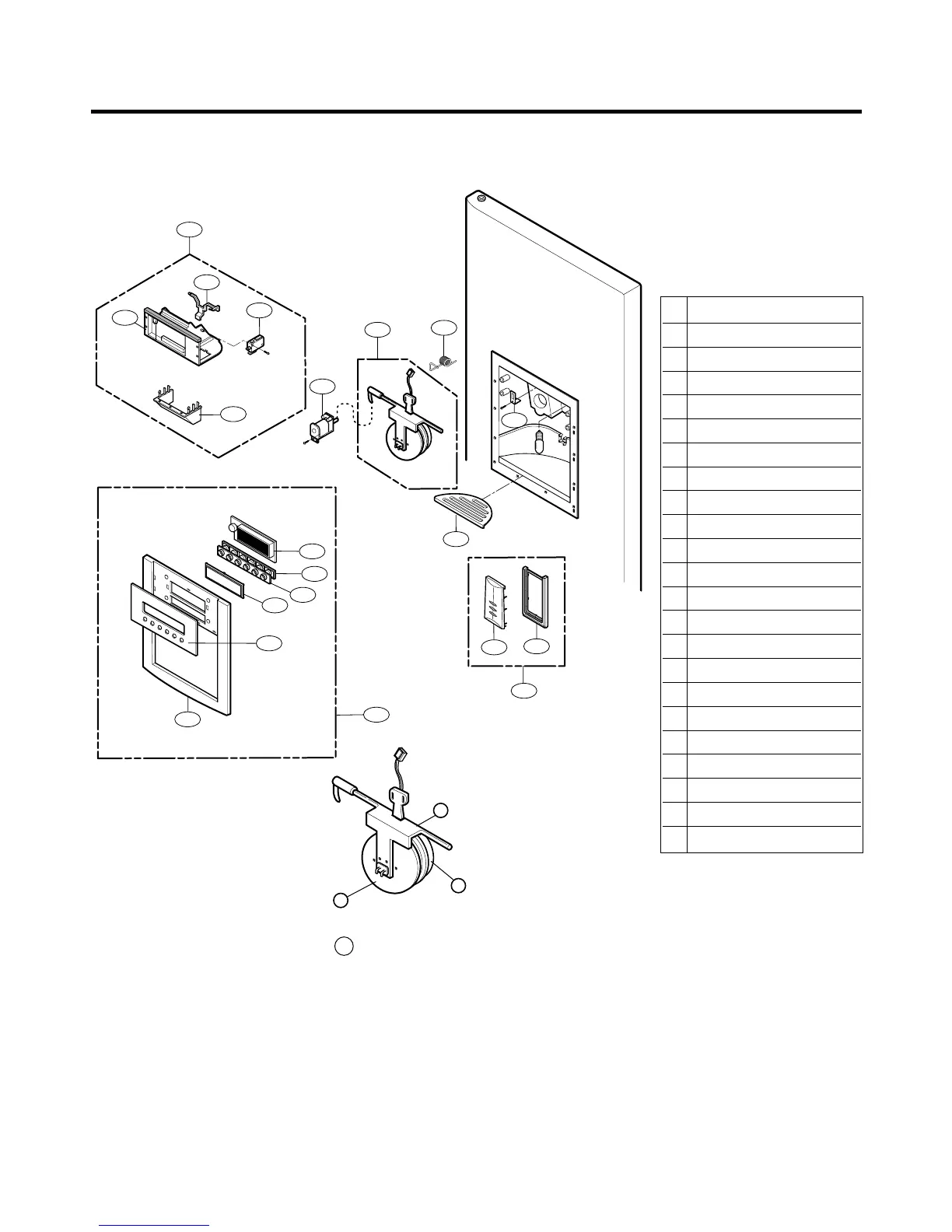

7) Dispenser Related Parts
HOW TO DISASSEMBLE AND ASSEMBLE
- 134 -
7
8
11
14
17
15
24
16
23
21
1
22
9
10
2
18
21
19
6
5
3
4
12
1 FRAME ASSEMBLY, DISPLAY
2 COVER, DISPENSER
3 FRAME, DISPLAY
4 BUTTON, DECO
5 BUTTON, ASSEMBLY
6 PWB(PCB) ASSEMBLY, DISPLAY
7 FUNNEL ASSEMBLY
8 SWITCH, MICRO
9 FRAME, FUNNEL
10 LEVER(SWITCH)
11 FUNNEL
12 DECO, FRAME DISPLAY
14 SOLENOID ASSEMBLY
15 SPRING
16 HOLDER, LEVER
17 CAP, DUCT ASSEMBLY
18 DUCT DOOR ASSEMBLY
19 LEVER, DISPENSER
20 RUBBER, CAP
21 BUTTON ASSEMBLY
22 BUTTON
23 HOLDER, BUTTON
24 DECO, DRAIN
< 17 Cap Assembly, Duct Detailed Drawings>
