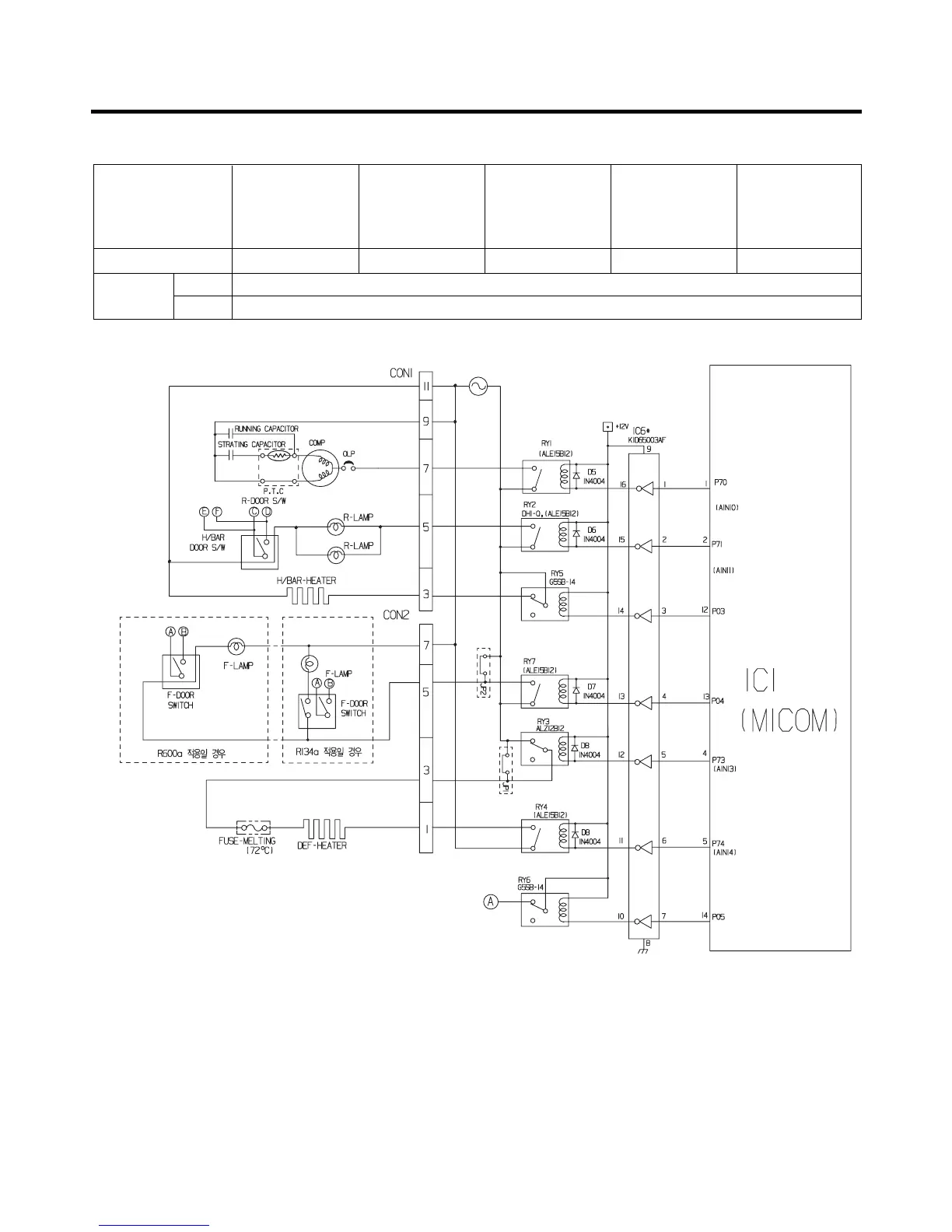

EXPLATION FOR MICOM CIRCUIT
- 37 -
<GC-B/C207: Bar, Dot-LED>
ASSEMBLY
Measuring part (IC6) No.16 No.11 No.12 No.15 No.14
Status
ON Within 1 V
OFF 12 V
Type of Load COMP
Frost Removal
Heater
AC Converting
Relay
R-room LAMP
Homebar
Heater
