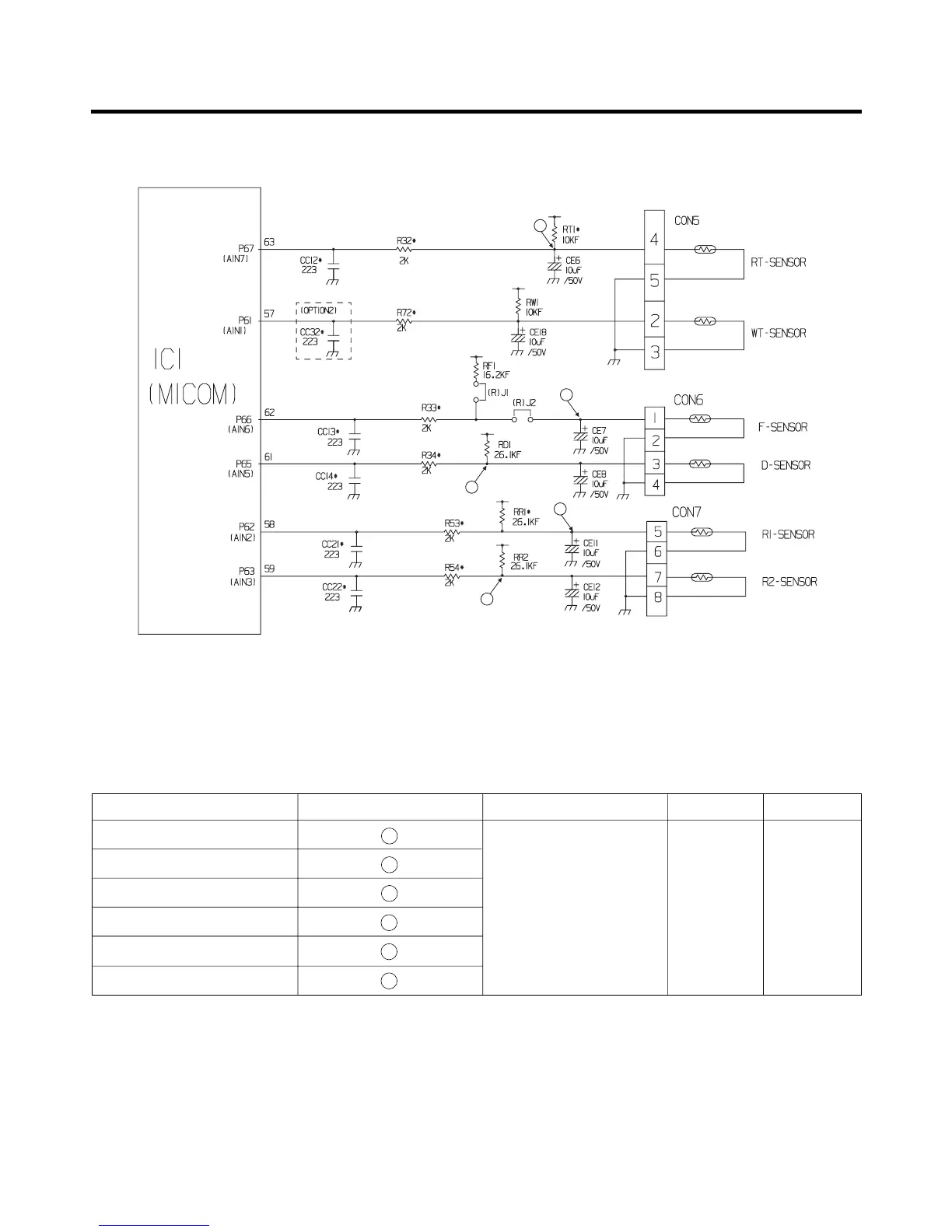

The above circuits are circuits attached to freezing room sensor or cold storage room sensor for adjusting setting
temperature at the freezing room and cold storage room, ice-making sensor for sensing water temperature in ice-making, or
an evaporator for sensing temperature of a frost removal sensor necessary for frost removal. Short or open status of every
temperature sensor is as follows:
SENSOR CHECK POINT NORMAL(-30 °C ~ 50 °C) IN SHORT IN OPEN
Freezing sensor POINT A Voltage
Frost removal sensor POINT B Voltage
Cold storage sensor 1 POINT C Voltage
0.5 V~4.5 V 0 V 5 V
Cold storage sensor 2 POINT D Voltage
Ice making sensor POINT E Voltage
Room temperature sensor POINT F Voltage
<GC-P/L207: Dot-LED>
F
A
C
B
D
EXPLATION FOR MICOM CIRCUIT
- 43 -
