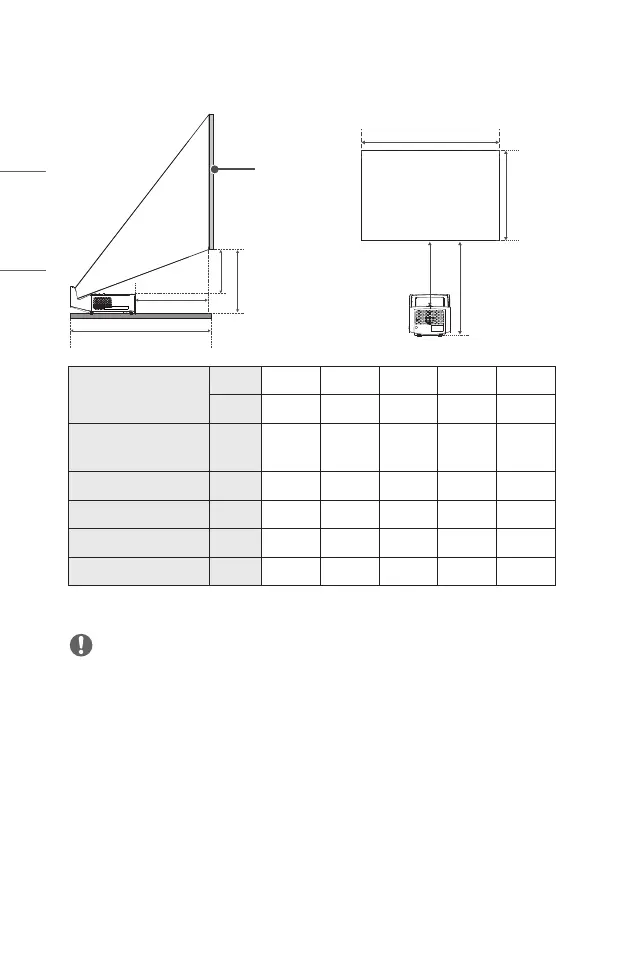

Ratio of upward projection: 125 %
A
B
C
D
Screen
C
D
X
Y
Screen Size
inches 60 70 80 90 100
mm 1524 1778 2032 2286 2540
Horizontal Size (X) x
Vertical Size (Y)
mm
1328 x
747
1550 x
872
1771 x
996
1992 x
1121
2214 x
1245
A mm 414 482 550 618 686
B mm 105 173 241 309 377
C mm 149 181 213 245 276
D mm 241 273 304 336 368
The projection distance may vary depending on the installation conditions.
NOTE
• If the projected image looks distorted or bent, check to see if the screen is
installed properly.
