LG LAS855M - If the Set Doesnt Booting When You Turn on the Set (Led Does Not Turn On)

2-5
ONE POINT REPAIR GUIDE
4. IF THE SET DOESN’T BOOTING WHEN YOU TURN ON THE SET. (LED DOES NOT TURN ON)
4-1. IC309 (NO 3.4 VA)
4-1-1. Solution
Replace IC309 on MAIN board.
4-1-2. How to troubleshoot (Countermeasure)
1) Please check 25 VA of IC309 pin7 (VIN).
2) If 25 VA is abnormal, check the parts (MAIN board: L313, R345, CN104,
AMP board: F601, CN600, JK600). And change the weird one.
3) If 25 VA is OK, please replace IC309.
4)
If still there is no 25 VA, change adaptor. Or, if 25 VA is OK, but 3.4 VA is abnormal at the L315, replace IC309.

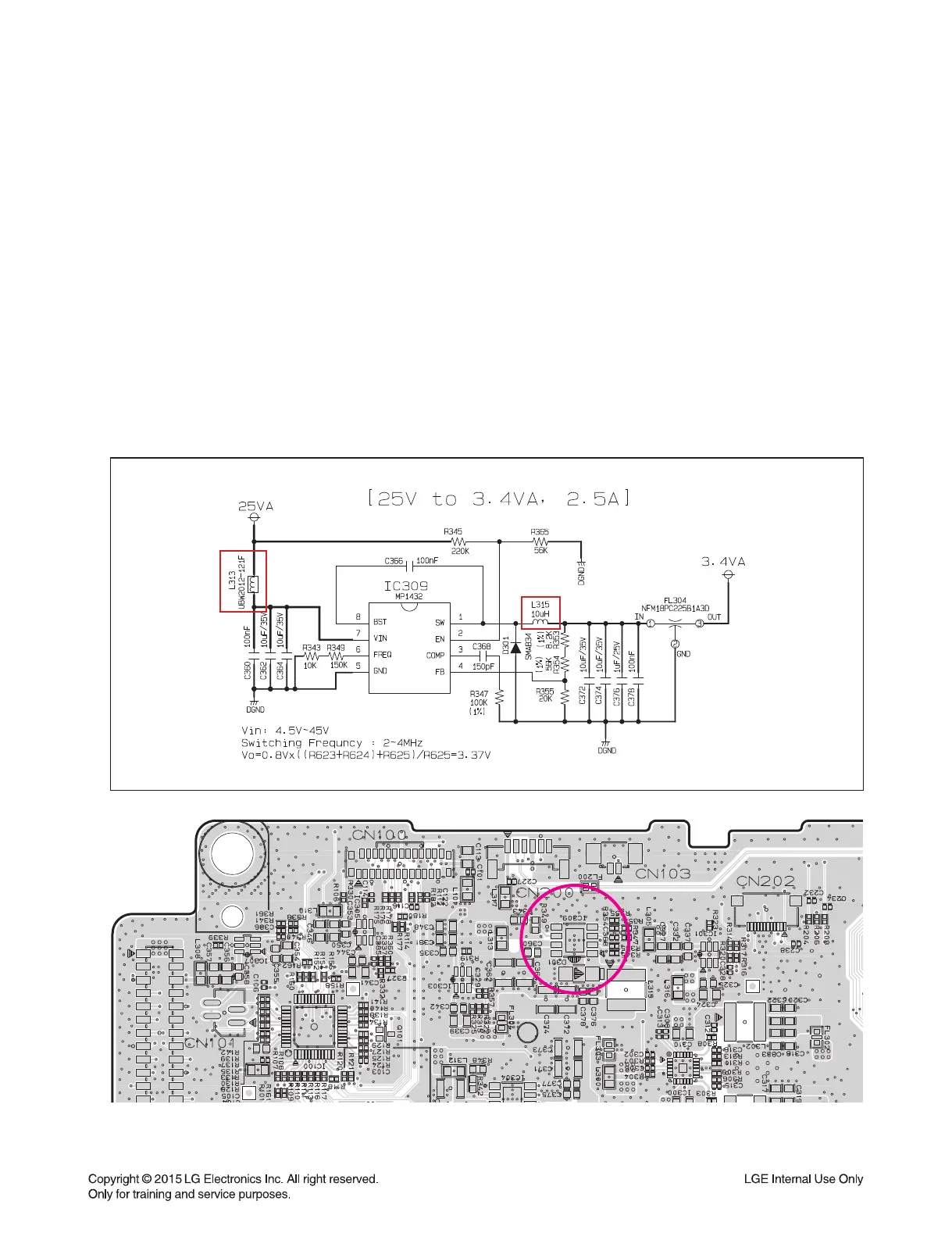

4-1-3. Service hint (Any picture / Remark)
< MAIN board top view >
IC309
IC309
