ONE POINT REPAIR GUIDE
17. BLUETOOTH FUNCTION DOESN’T WORKING
17-1. Bluetooth module
17-1-1. Solution
Replace Bluetooth module.
17-1-2. How to troubleshoot (Countermeasure)
1) Check 3.4 VA of L208.
2) Check the BT_RST (R157).
If it’s weird, follow the stage 8-1 (IC100).
If it’s OK, change the BT module.
3) If it still doesn’t work, follow the stage 11-1 (IC501).
17-1-3. Service hint (Any picture / Remark)

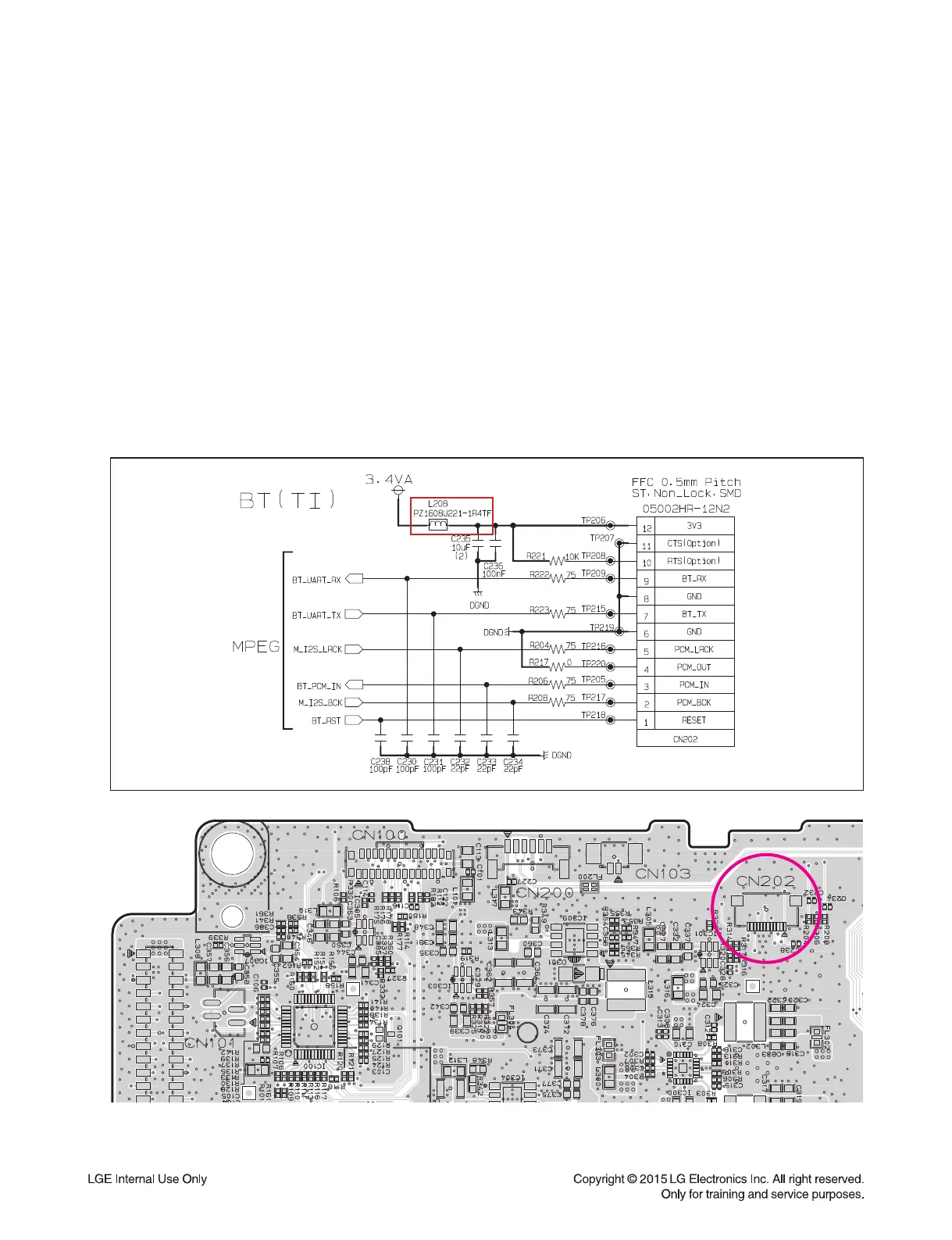

< MAIN board top view >
CN202
To Next Page
