ONE POINT REPAIR GUIDE
15. PORTABLE FUNCTION DOESN’T WORKING
15-1. IC200
15-1-1. Solution
Replace IC200 on MAIN board.
15-1-2. How to troubleshoot (Countermeasure)
1) Check VCC_5V of L204. If VCC_5V is abnormal, follow the stage 3-1 (IC301).
2) Check D_3.3V of L207. If D_3.3V is abnormal, follow the stage 5-1 (IC302).
3)
If VCC_5V and D_3.3V are OK, check the PTB_DET is high state when portable cable connected (R128).
If it’s Low, follow the stage 8-1 (IC100).
4) When you followed above step but It doesn’t work, Check the around parts. (Resistor, Capacitor, Bead).
If it still doesn’t work, replace the IC200.

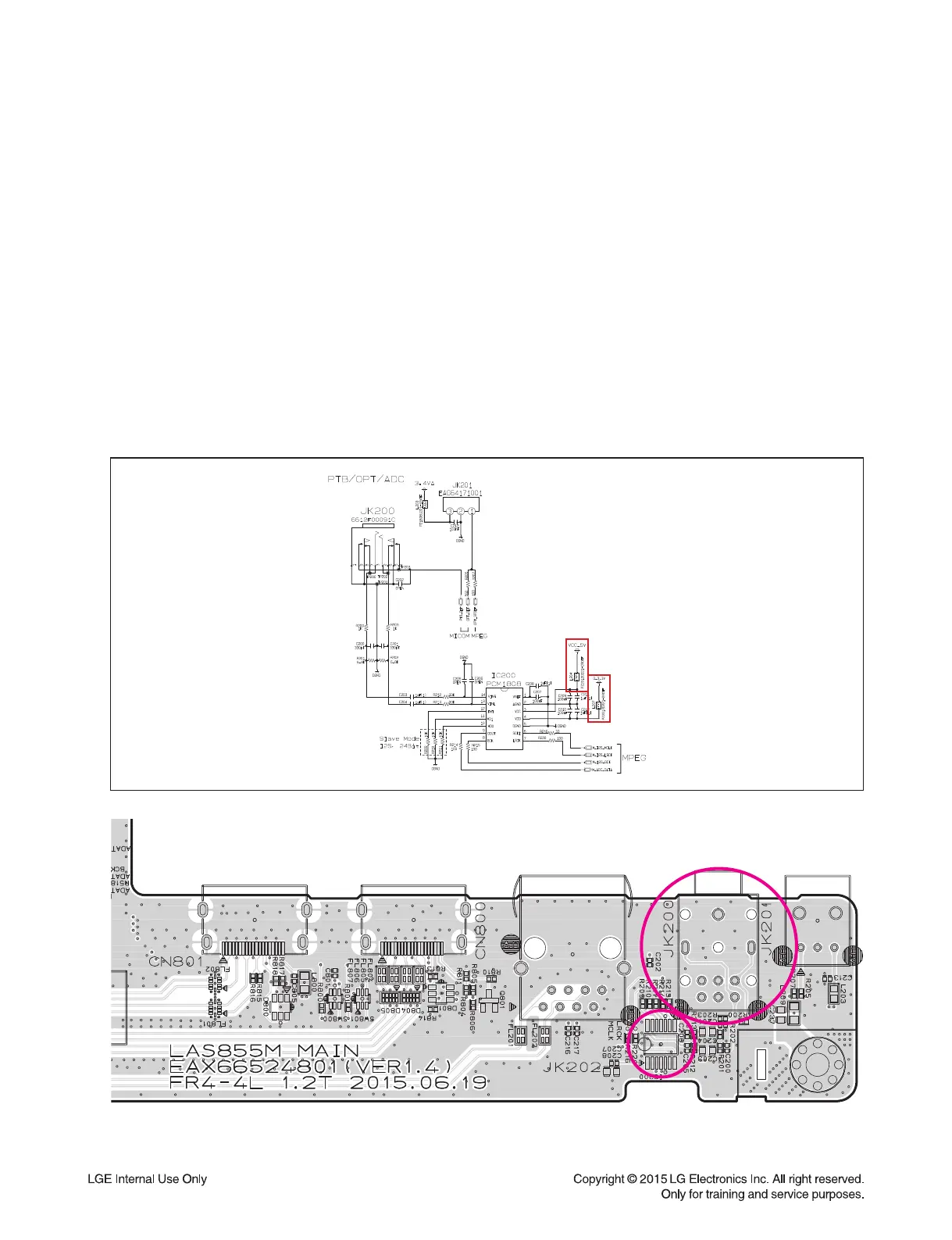

15-1-3. Service hint (Any picture / Remark)
< MAIN board top view >
JK200
IC200
