ONE POINT REPAIR GUIDE
20. WIRELESS WOOFER CONNECTION DOESN’T WORKING
20-1. Wireless module and IC305
20-1-1. Solution
Replace Wireless module or IC305 on MAIN board.
20-1-2. How to troubleshoot (Countermeasure)
1) Try to connect MAIN set and subwoofer according to the factory reset step.
2) If it is OK, change the wireless module, and try again.
3) If it still doesn’t work, check WLS_3.3V (L310).
4) If It is abnormal, check 3.4 VA of IC305 pin1.
If it is weird, follow the stage 4-1 (IC309).
5) If it is OK, check the state of WL_RST (R327).
If it is low state, follow the stage 8-1 (IC100).
If it is OK, replace IC305.

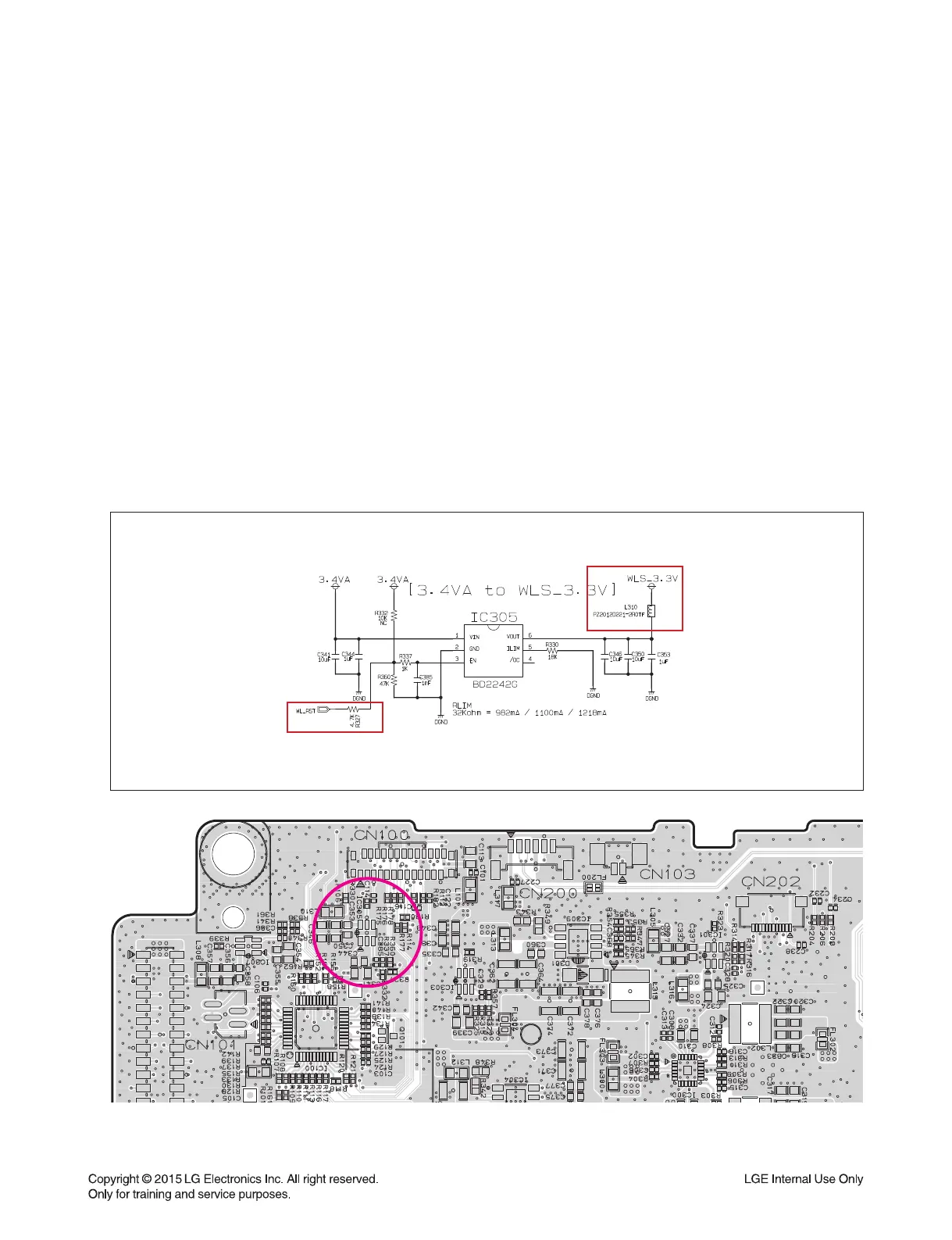

20-1-3. Service hint (Any picture / Remark)
< MAIN board top view >
IC305
