LG LAS855M - Main - Memory Circuit Diagram

2-422-41
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MEMORY
EAX66524801 Rev1.4(10) MAIN(#3)
2016.06.17

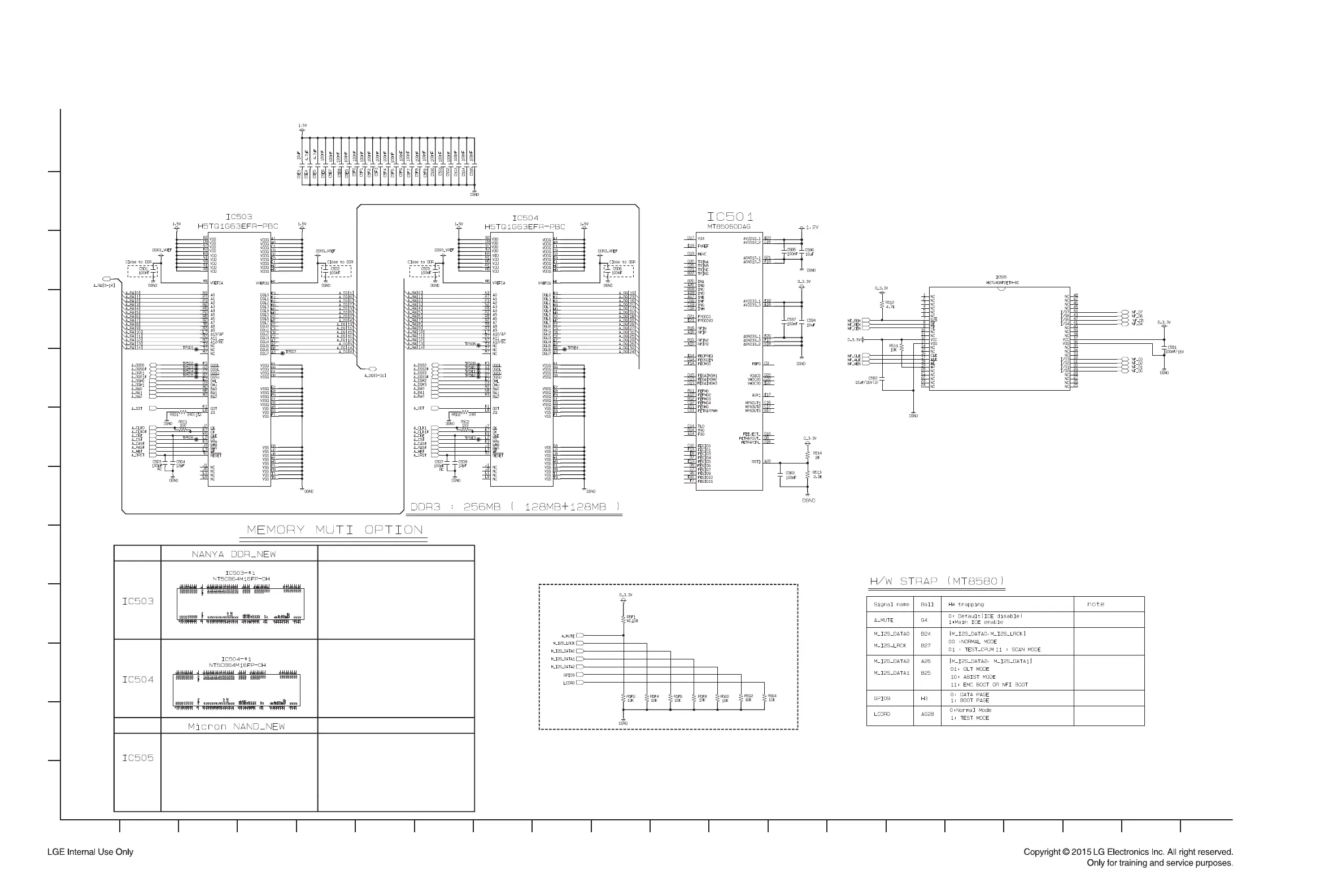

3. MAIN - MEMORY CIRCUIT DIAGRAM
