LG LRE3061ST Service Manual

-3-8-

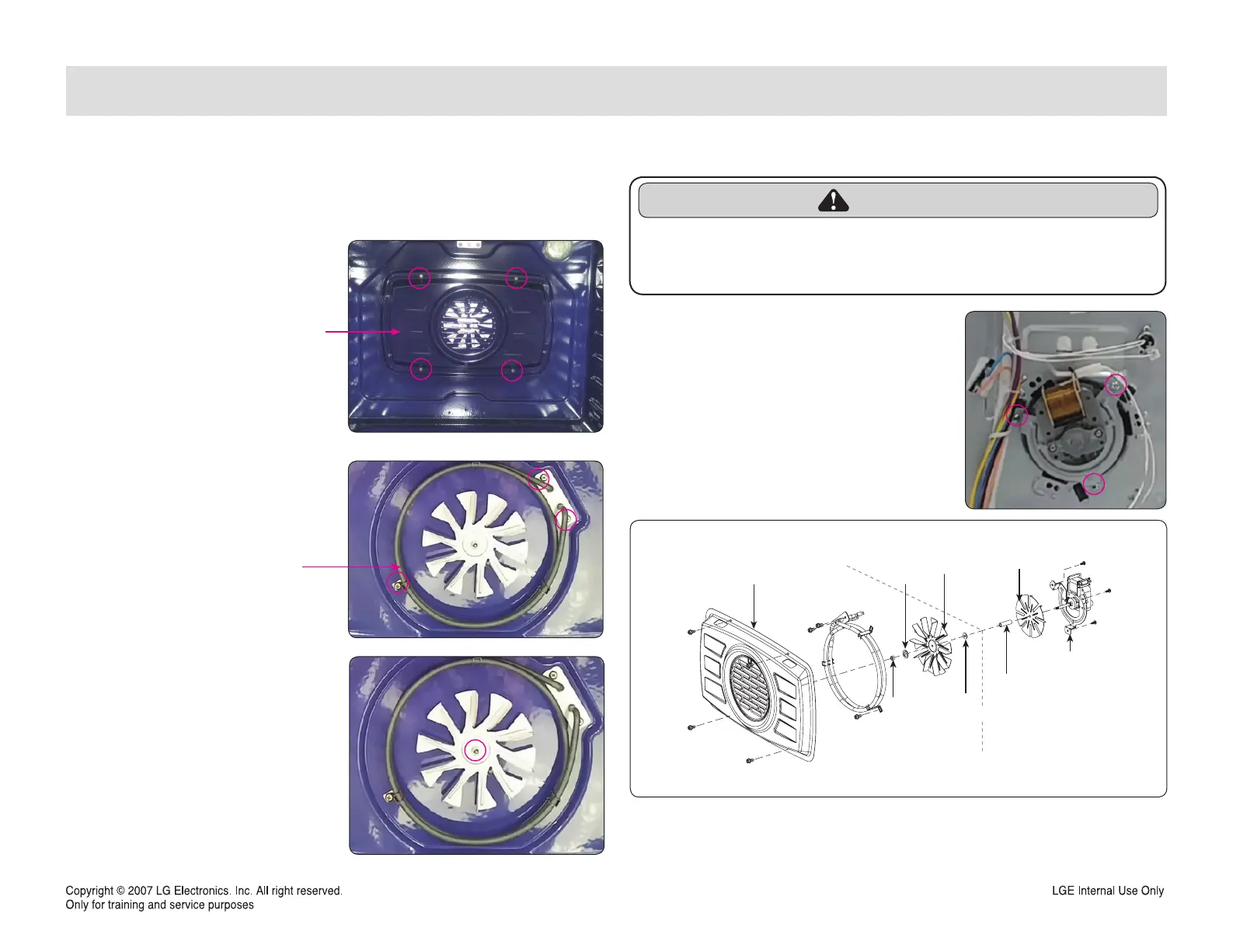

1. Disconnect power and remove oven racks.
2. Pull the range out of its mounting location so that you can access the
rear of the unit.
3. To remove the convection heater,
Remove 4 screws and detach the
fan cover.
4. Remove 3 screws and pull the
convection heater forward.
Disconnect 2 wiring receptacles
and the heater can be detached
from range for service.
5. To remove the fan blade, Remove
1 nut, 1 washer, fan blade and 1
washer.
* Remove the nut by screwing
clockwise. The fan blade can be
replaced from inside oven.
6. To remove the fan motor assembly,
a) Remove lamp, controller and back cover
(See the page 3-2)
b) Remove 3 screws from the fan motor
bracket and disconnect 2 wiring
connections.
c) Pull the fan motor out of the rear panel
and the motor can be detached.
COMPONENT ACCESS
REMOVING THE CONVECTION, FAN BLADE AND FAN MOTOR
Fan cover
Convection heater
• Be careful when you work on the electric range
handling the sheet metal part.
- Sharp edge may be present and you can cut yourself.
CAUTION
Nut
Bushing
Fan motor
Cavity
Fan cover screws (4ea)
Conv. heat
screws (2ea)
Fan cover
Spring
washer
Fan
blade
Rear-fan
blade
Mounting
screws (3ea)
Flat
Washer

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
