LG LRE3061ST Service Manual

-5-1-
COMPOSITION OF CONTROL

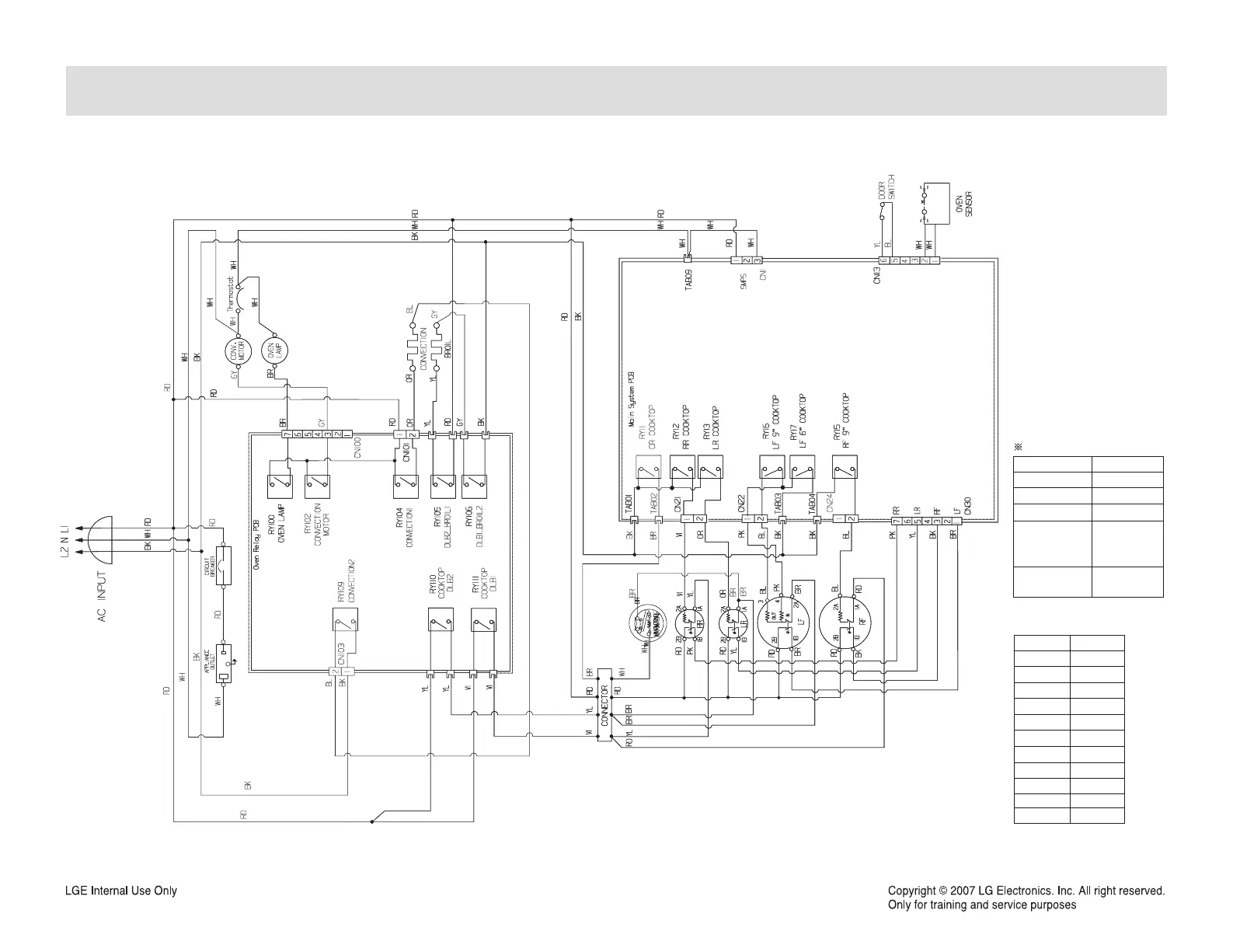

Wiring Diagram
RADIANT COOK-TOP
WIRE COLORS
< TABLE 1 >
SYMBOLCOLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
Wattag
eΩ
RR:1200W approx.47Ω
LR:1200W approx.47Ω
RF:2500W
approx. 23Ω
WARM ZONE:
100W approx.570Ω
LF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
OR ORANGE
VI VIOLET

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
