LG LRE3061ST Service Manual

-12-1-

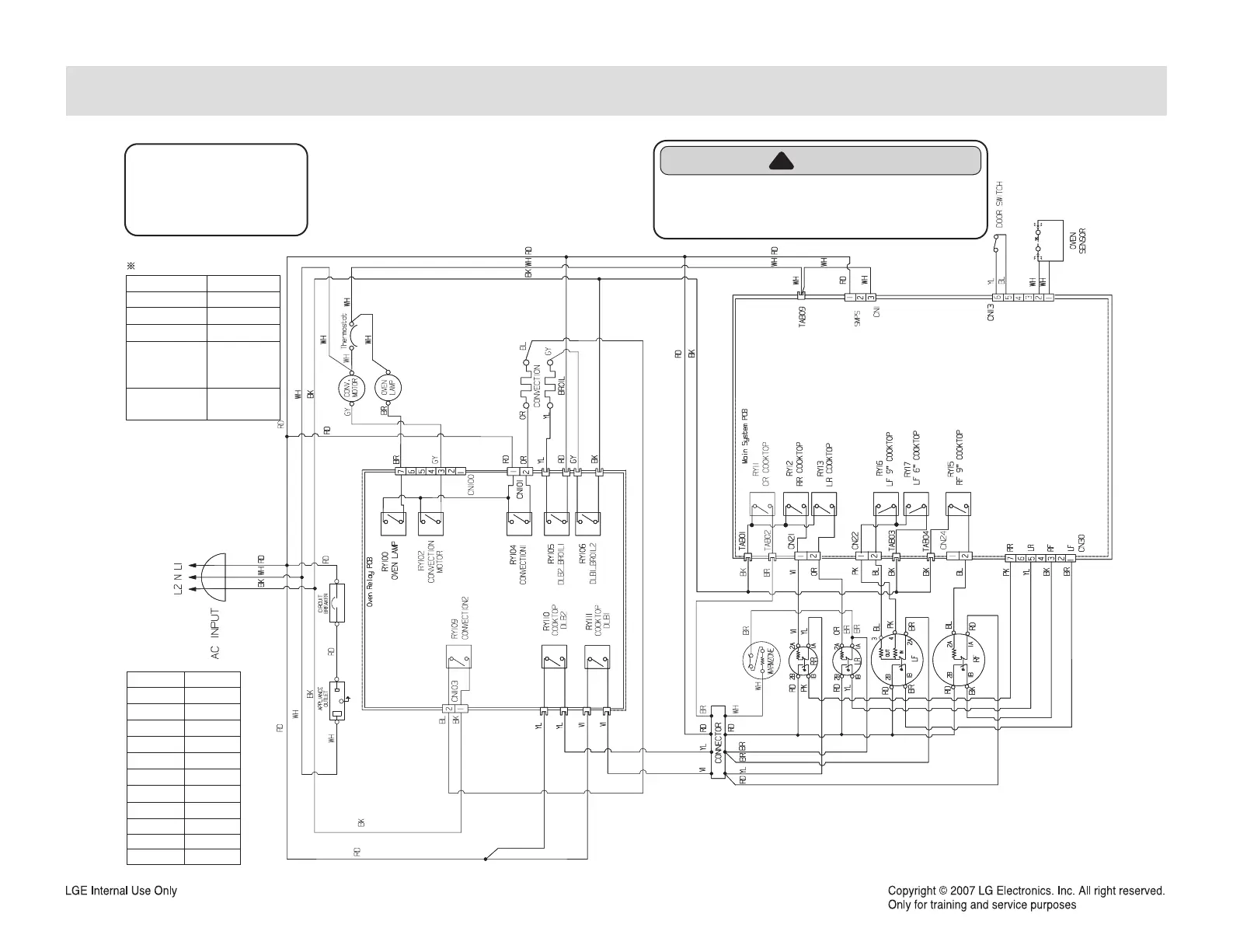

SCHEMATIC DIAGRAM
WARNING
POWER MUST BE DISCONNECTED BEFORE
SERVICING THE APPLIANCE. FAILURE TO DO SO
CAN RESULT IN DEATH OR ELECTRICAL SHOCK.
!
NOTE:
Schematic diagram shows
oven door opened and
unlocked.All elements are
set to “OFF”.
WIRE COLORS
SYMBOLCOLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET
RADIANT COOK-TOP
< TABLE 1 >
WattageΩ
RR:1200W approx.47Ω
LR:1200W approx.47Ω
RF:2500W
approx. 23Ω
WARM ZONE:
100W approx.570Ω
LF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
