LG LRE3061ST Service Manual

-3-11-

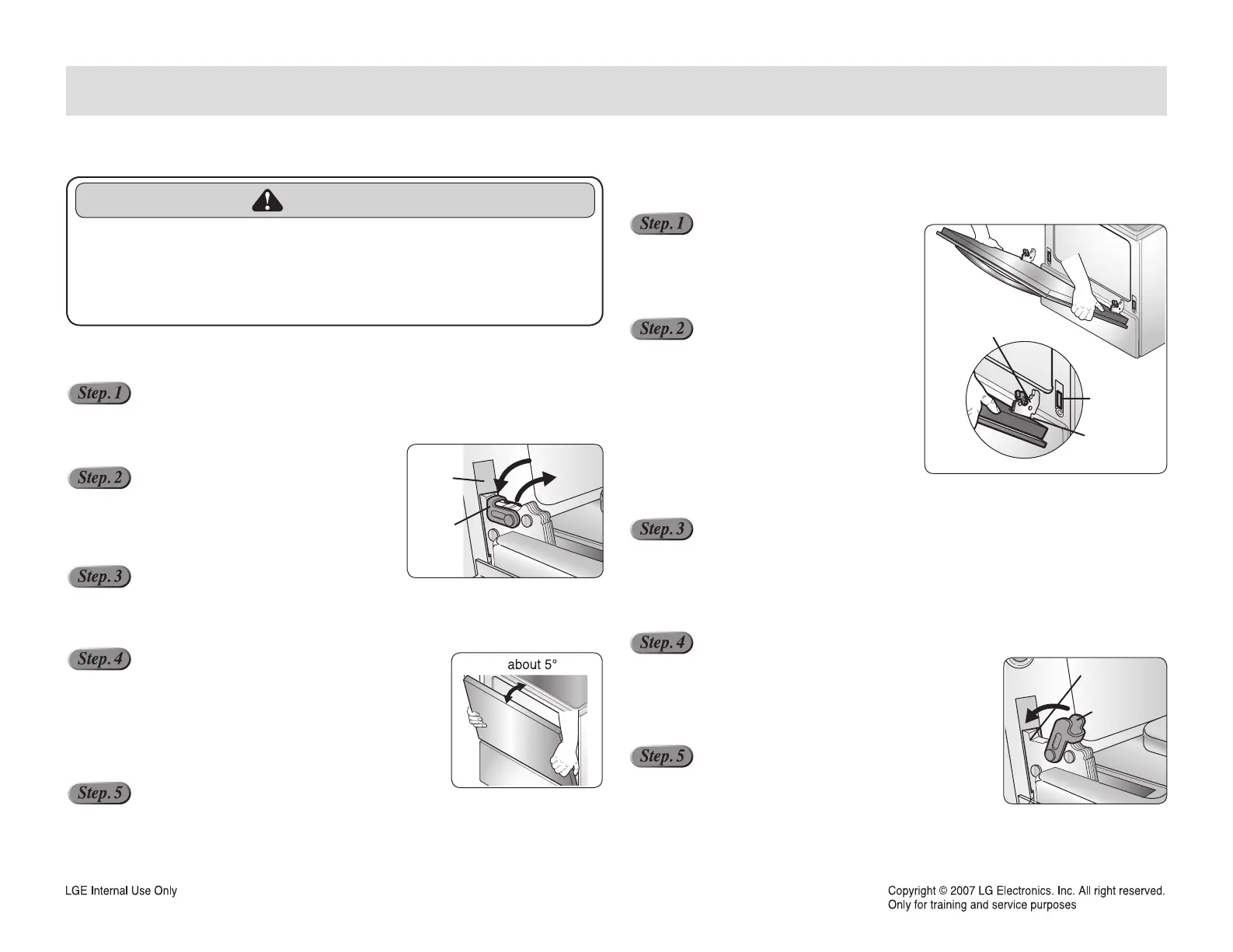

To remove the door:
Fully open the door.
Pull the hinge locks down toward (Fig.1) the door
frame, to the unlocked position.
Firmly grasp both sides of the door at the top.
Close door to the door removal position, which is
approximately 5 degrees. (refer to the Fig.2)
Lift door up and out until the hinge arm is clear of the slot.
To replace the door:
Firmly grasp both sides of the door at the
top.
With the door at the same angle as the
removal position, seat the indentation of
the hinge arm into the bottom edge of the
hinge slot. The notch in the hinge arm
must be fully seated into the bottom of the
slot.
Fully open the door. If the door will not fully open, the indentation is not seated
correctly in the bottom edge of the slot.
Push the hinge locks up against the front frame of the
oven cavity to the locked position.
Close the oven door.
COMPONENT ACCESS
REMOVING & REPLACING THE LIFT-OFF OVEN DOOR
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- Failure to do so can result in personal injury as the door is very
heavy.
WARNING
Slot
Hinge
lock
Lock
Unlock
Hinge arm
Indentation
Bottom
edge of
slot
Hinge arm
Hinge lock
<Fig.1>
Slot
Hinge
lock
Lock
Unlock
Hinge arm
Indentation
Bottom
edge of
slot
Hinge arm
Hinge lock
<Fig.2>
Slot
Hinge
lock
Lock
Unlock
Hinge arm
Indentation
Bottom
edge of
slot
Hinge arm
Hinge lock
Slot
Hinge
lock
Lock
Unlock
Hinge arm
Indentation
Bottom
edge of
slot
Hinge arm
Hinge lock

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
