LG LRE3061ST Service Manual

-9-5-

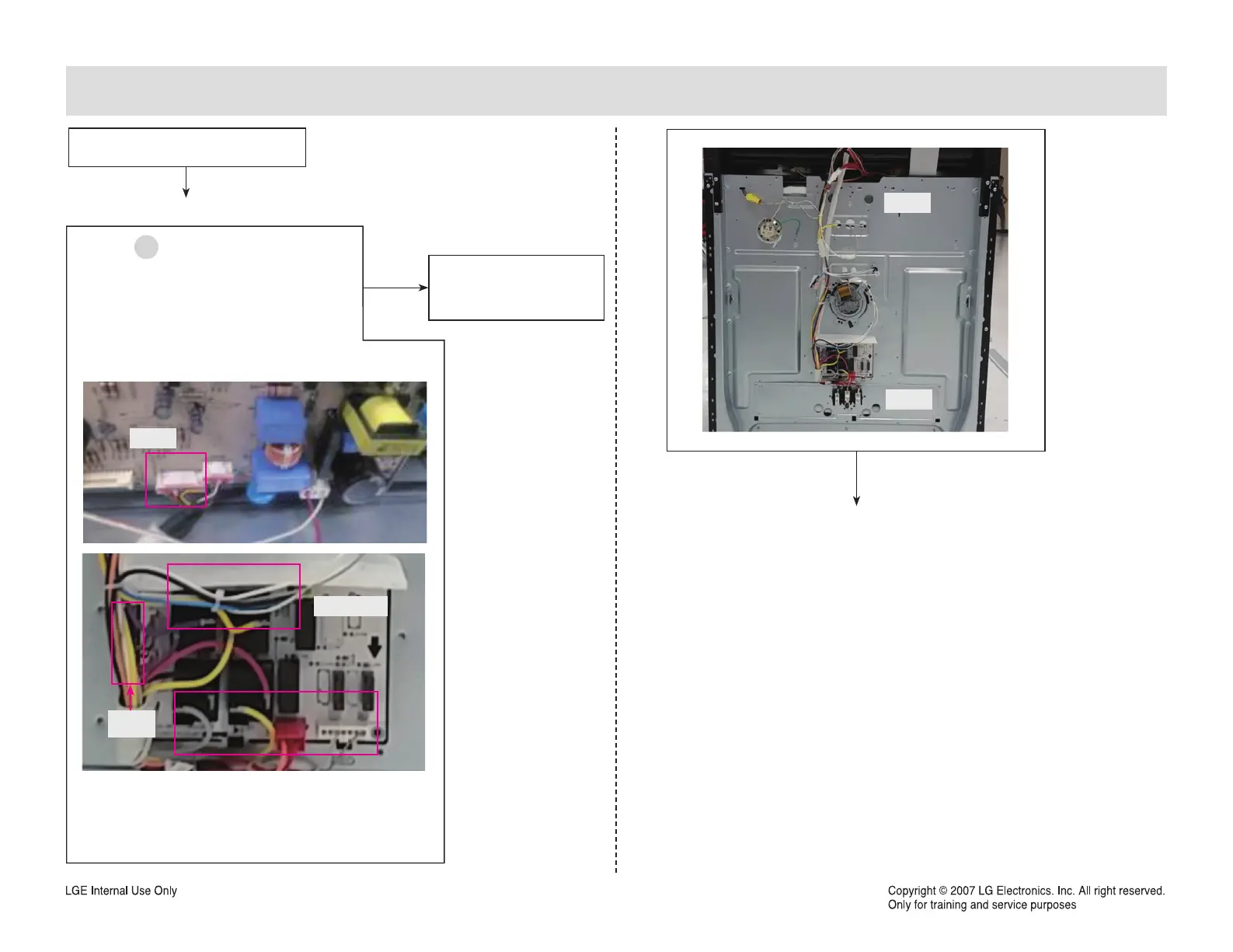

CHECKING FLOW CHART BY FAILURE
Oven does not heat, F9
Is the disconnect or loose connector?
1. Between Main PCB and
Relay PCB (CN17)
2. Electric wiring of relay PCB All taps.
3.Electric wiring of electric element
Yes
Reconnect or repair the
connector
1
CN17
CN17
Broil
Bake
All taps.
Unplugged the unit
No

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
