Single Zone Mega Wall Mounted Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.

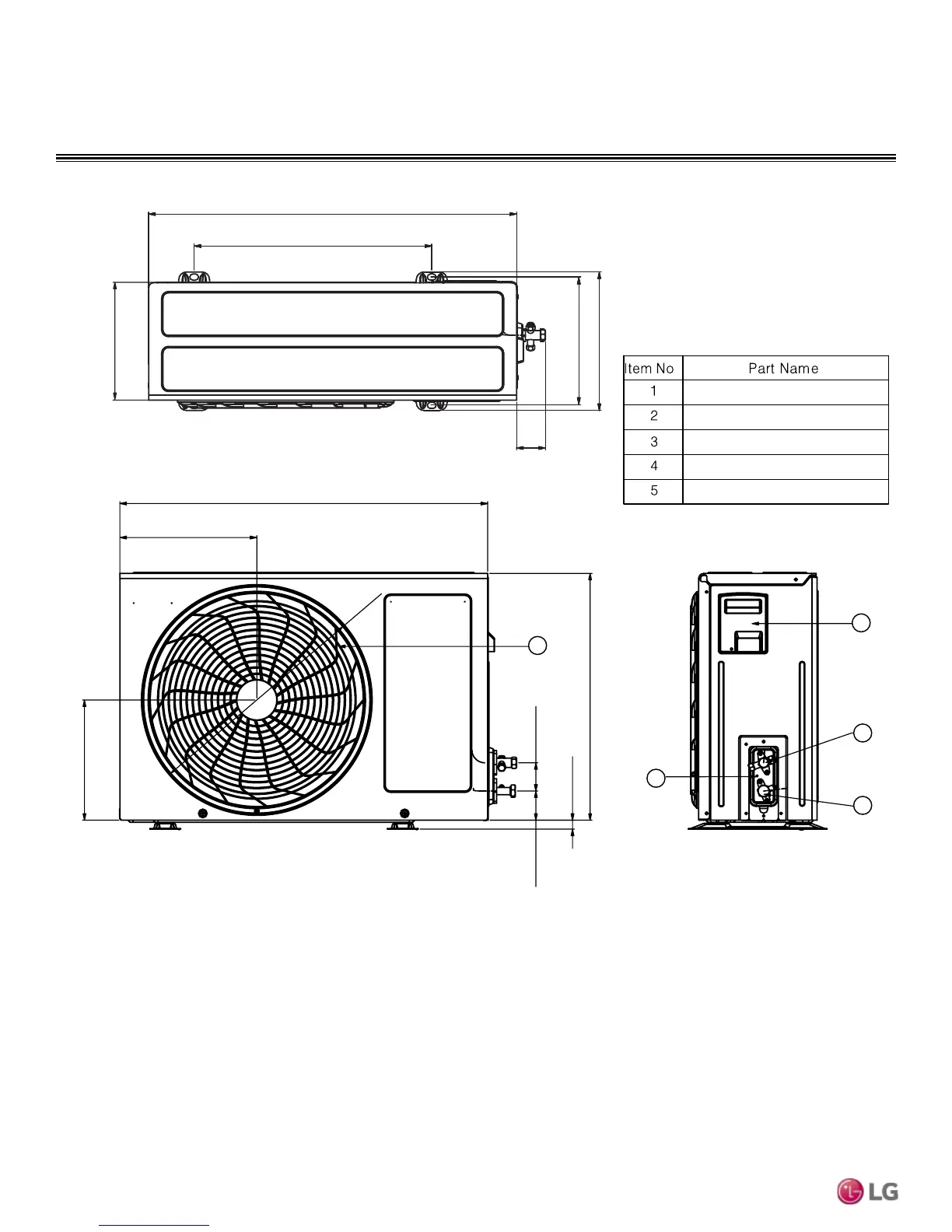

OUTDOOR UNIT DIMENSIONS
LSU090HXV, LSU120HXV
5
4
2
3
28-1/4
Ø17-3/8
10-9/16
9-5/16
19-1/16
2-3/16
2-1/4
7/16
1
Unit: Inch
.
18-1/4
28-1/4
2-1/4
10 -1/16
9-1/16
10-11/16
Discharge Air Grille
Gas Pipe Connection Port
Liquid Pipe Connection Port
Control Box
Ground Terminal
