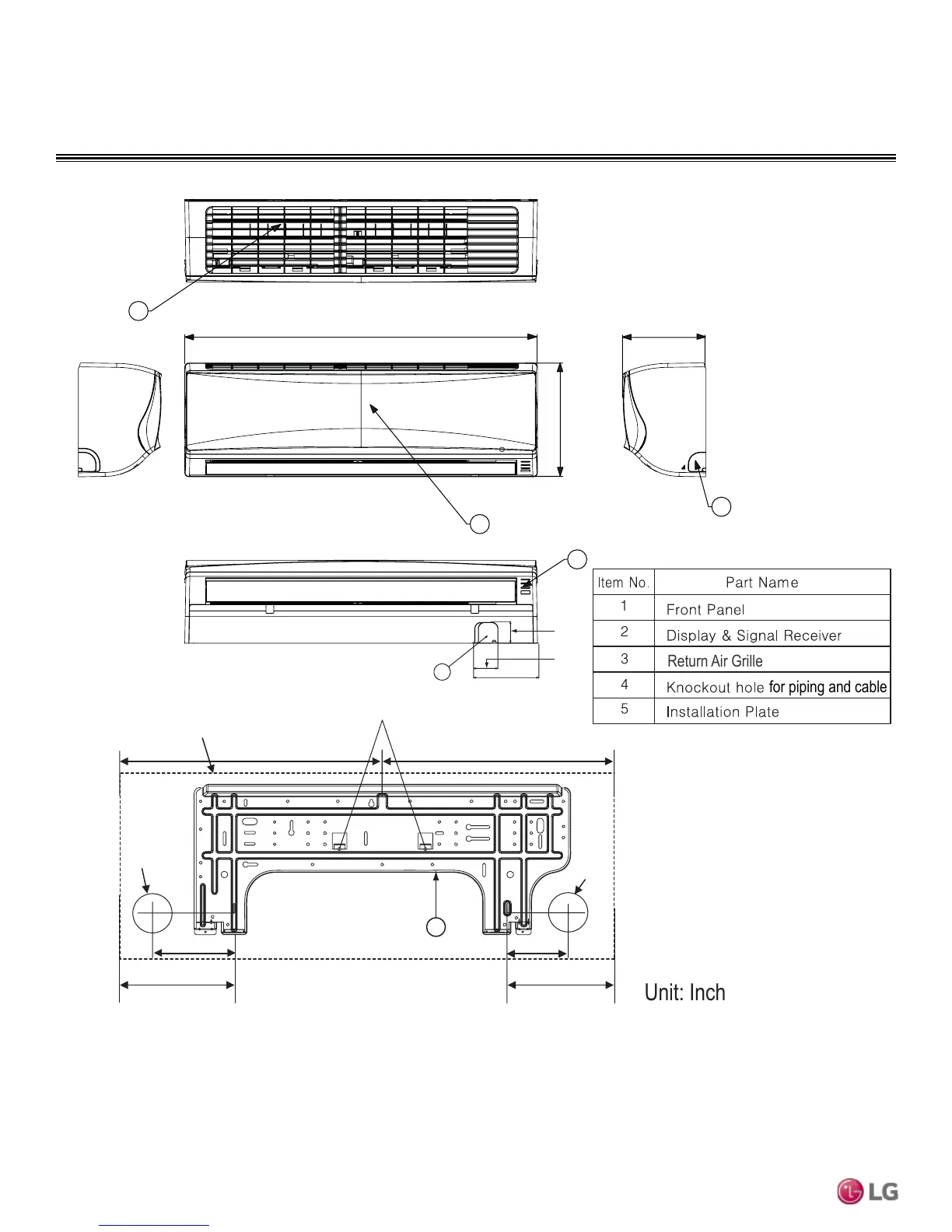

INDOOR UNIT DIMENSIONS
LSN090HXV, LSN120HXV
34-7/8
8-5/16
11 -1/4
3
2
4
1
Ø 2-13/16
5-1/4
3-3/4
Right rear
piping
Left rear
piping
Installation Plate
Place a level on raised tab
Unit Outline
8-9/16
6-15/16
17-7/16 17-7/16
5
Ø 2-13/16
4
2-5/16
6-5/16
15/16
Unit: Inch
Return Air Grille
for piping and cable
