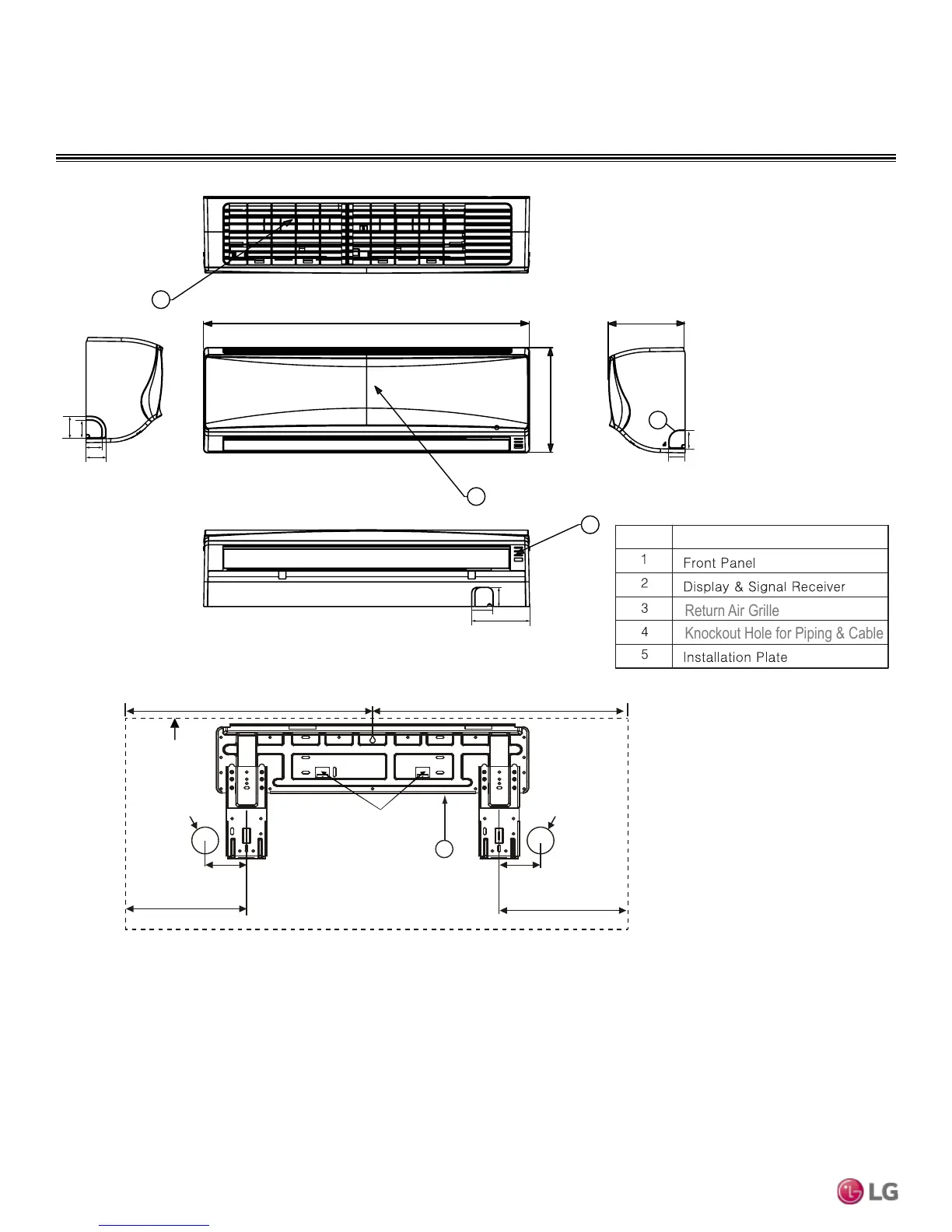

INDOOR UNIT DIMENSIONS
LSN120HEV1
5
Ø
2-9/16
Right Rear
Piping
Left Rear
Piping
Installation Plate
Place a level on raised tab
4 -13/16
9-5/8
7
5-1/4
16 -1/4
18-7/8
34-13/16
8-1/4
11 -1/4
Unit Outline
Ø
2-9/16
3
2
4
1
Unit: Inch
Item No.
Part Name
1-3/4
2-3/16
2
2-3/8
1-3/4
2
Knockout Hole for Piping & Cable
2
2-5/16
6-5/16
