26 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
Thermistor Description PCB Connector
TH1
Indoor air temperature thermistor CN-TH1 (Indoor)
TH2
Water level sensor (optional) CN-TH2 (Indoor)
TH3
Evaporator middle temperature thermistor CN-TH3 (Indoor)
TH4
Discharge pipe temperature thermistor CN-TH2 (Outdoor)
TH5
Outdoor air temperature thermistor
CN-TH1 (Outdoor)
TH6
Condensing temperature thermistor

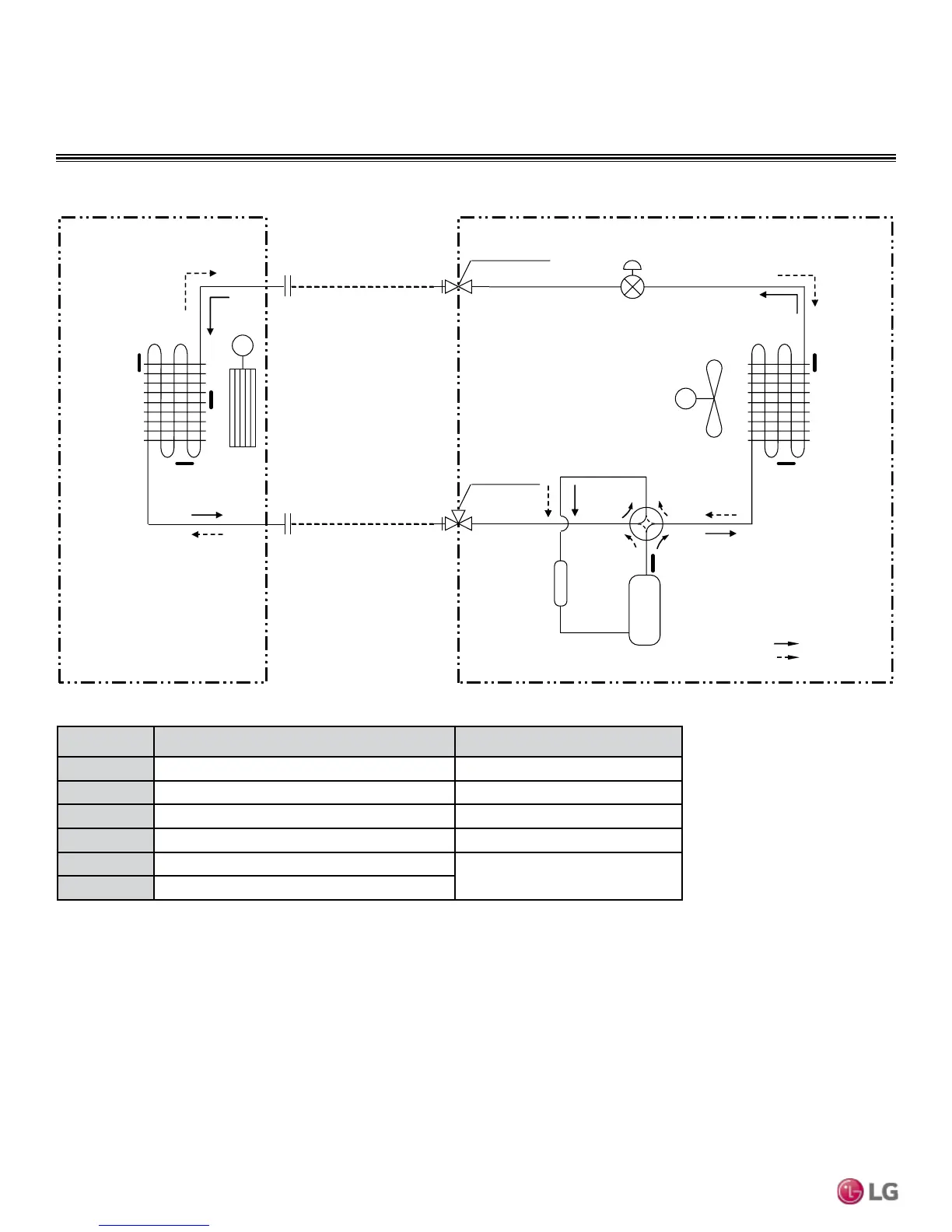

REFRIGERANT FLOW DIAGRAMS
Mega Inverter LSN/LSU180HEV1
FIELD PIPING
1/ 4" Copper Tubing)
FIELD PIPING
1/ 2" Copper Tubi ng)
M
M
He at
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Compressor
Accumulator
2-Way Valve
Reversing
Va lv e
Indoor Unit Outdoor Unit
: Cooling
: Heating
EEV
TH1
TH3
TH2
TH5
TH4
TH6
Liquid Side
Gas Side
3-
Way Valv e
