Electrical Connections & Mechanical Specifications
ELECTRICAL CONNECTIONS

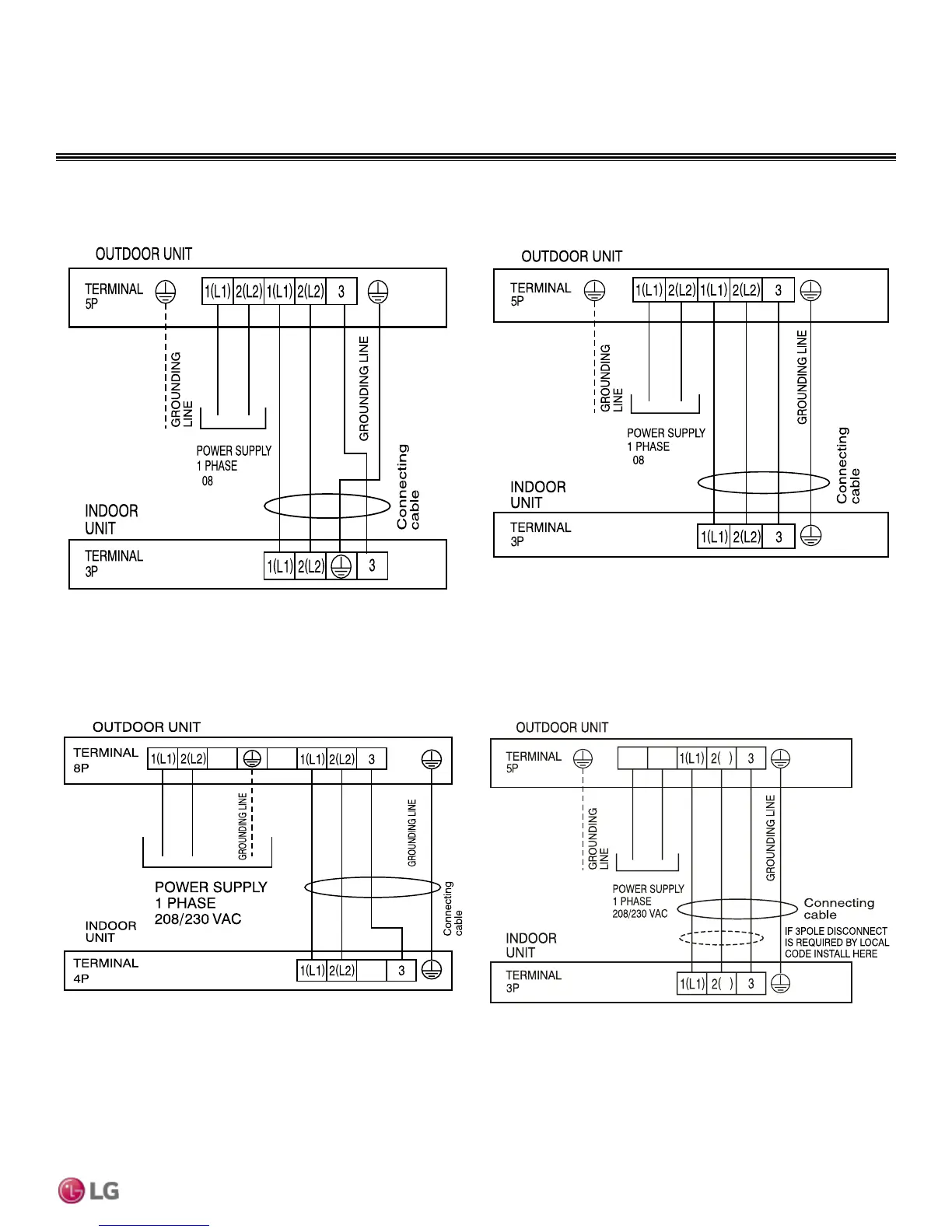

Figure 50: Terminal Block Wiring Diagram LS090HEV1
208/230 VA C
Figure 51: Terminal Block Wiring Diagram LS120HEV1
208/230 VA C
N
2(L2)
N
1(L1)
Figure 52: Terminal Block Wiring Diagram LS180HEV1, LS240HEV1 Figure 53: Terminal Block Wiring Diagram LS090HXV, LS120HXV
