GENERAL INSTALLATION GUIDELINES
Required Clearances

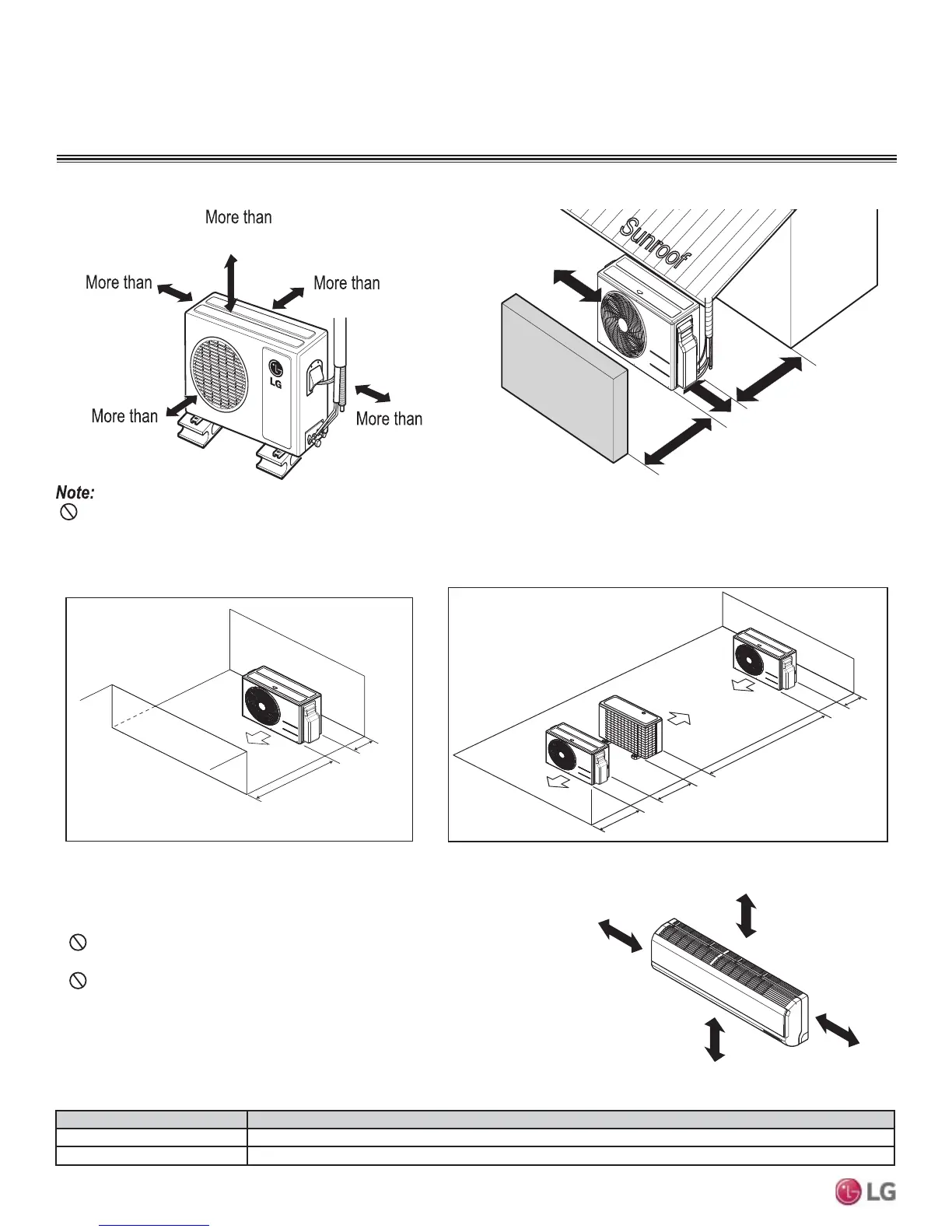

Figure 4: Outdoor Unit Clearances
12
28
24
12
24
Unit: Inch
Do not place the unit where animals and/or plants will be in the path of the warm air, or where the warm air and/or noise will disturb
neighbors.
Figure 5: Outdoor Unit Sunroof/Awning Clearances
More than
12
More than
12
Sunroof
Fence or
obstacles
More than
28
Unit: Inch
More than
24
Indoor Unit Clearance
Follow recommended best practices when choosing an indoor location for the Single
Zone Wall-Mounted indoor unit.
• Keep unit away from any indoor steam or excessive heat.
•
No obstacles should be placed around unit.
• Condensation drain (leakage piping) should be routed away from the unit.
• Do not install near a doorway.
• Clearance gap between any wall or enclosure and the left or right side of the unit
must be greater than 4 inches.
• From the top of the unit to the ceiling there must be greater than 5 or 8 inches of
clearance (depending on indoor unit model).
• Unit should be at least 6.5 feet from the Àoor for adequate clearance.
Figure 6: Clearances Where There Are Obstacles on Both Air
Inlet and Outlet Sides (Obstacle on the Outlet Side is Lower
Than the Outdoor Unit)
Figure 7: Clearances Where There are Obstacles Above and on Both Air Inlet
and Outlet Sides (Obstacle on the Outlet Side is Lower Than the Outdoor Unit)
Minimum
28
Minimum
12
Unit: Inch
Minimum
12
79
24
Minimum 28
Unit: Inch
Figure 8: Single Zone Indoor Unit Clearance
Requirements
Minimum clearance
from ceiling - “A”
More than 4 inches
More than
4 inches
At least 6.5 feet from the floor
“A” Ceiling Clearance (inches) Indoor Unit Model(s)
5 LSN090-120HEV1, LSN091~121HSV3
8 LSN181~240HSV3, LS307-360HV3, LSN240~360HLV, LSN90~240HEV, LSN180-240HEV1, LSN090-120HXV
Table 13: Indoor Unit Ceiling Clearance
