GENERAL INSTALLATION GUIDELINES
Mounting the Indoor Unit to the Installation Plate
Installation plate
Indoor unit
3”
Spacer
1
2
1. Hook the indoor unit onto the upper portion of the installation
plate ([1] Figure 26).
2. Engage the hooks at the top of the indoor unit with the upper
edge of the installation plate.
• Ensure that the hooks are properly seated on the installation plate
by moving it left and right.
3. Move the bottom of indoor unit towards the installation plate to
anchor to wall ([2] Figure 26).
• It helps to press the lower left and right sides of the unit against the
installation plate until the hooks engage into their slots.
• You will hear a clicking sound as the bottom attaches to the instal-
lation plate successfully.
4. Finish by inserting and tightening two type “C” screws into the
bottom of the installation plate (Figure 28).
• Pay attention to the positioning of the piping through any wall as
shown in the figure, as you insert the screws to the indoor unit.
Preparing for Piping/ Electrical Connection
1. To prepare indoor unit for piping, disengage bottom on indoor unit
from installation plate by reversing step 3 from previous
procedure.
• This step will separate the indoor unit’s bottom side from the wall
mount in order to route drain hose correctly. See Figure 29 for a
reference of the rear view of the indoor unit.
2. Swing drain hose holder (L-bracket) out and anchor as shown in
Figure 27, against installation plate.
3. Optionally, go to Refrigerant Piping Connections section
of this manual to continue with piping connections to the indoor
unit.
4. Optionally, go to Electrical Connections section of this manual to
continue with conduit/electrical wiring to the indoor unit.

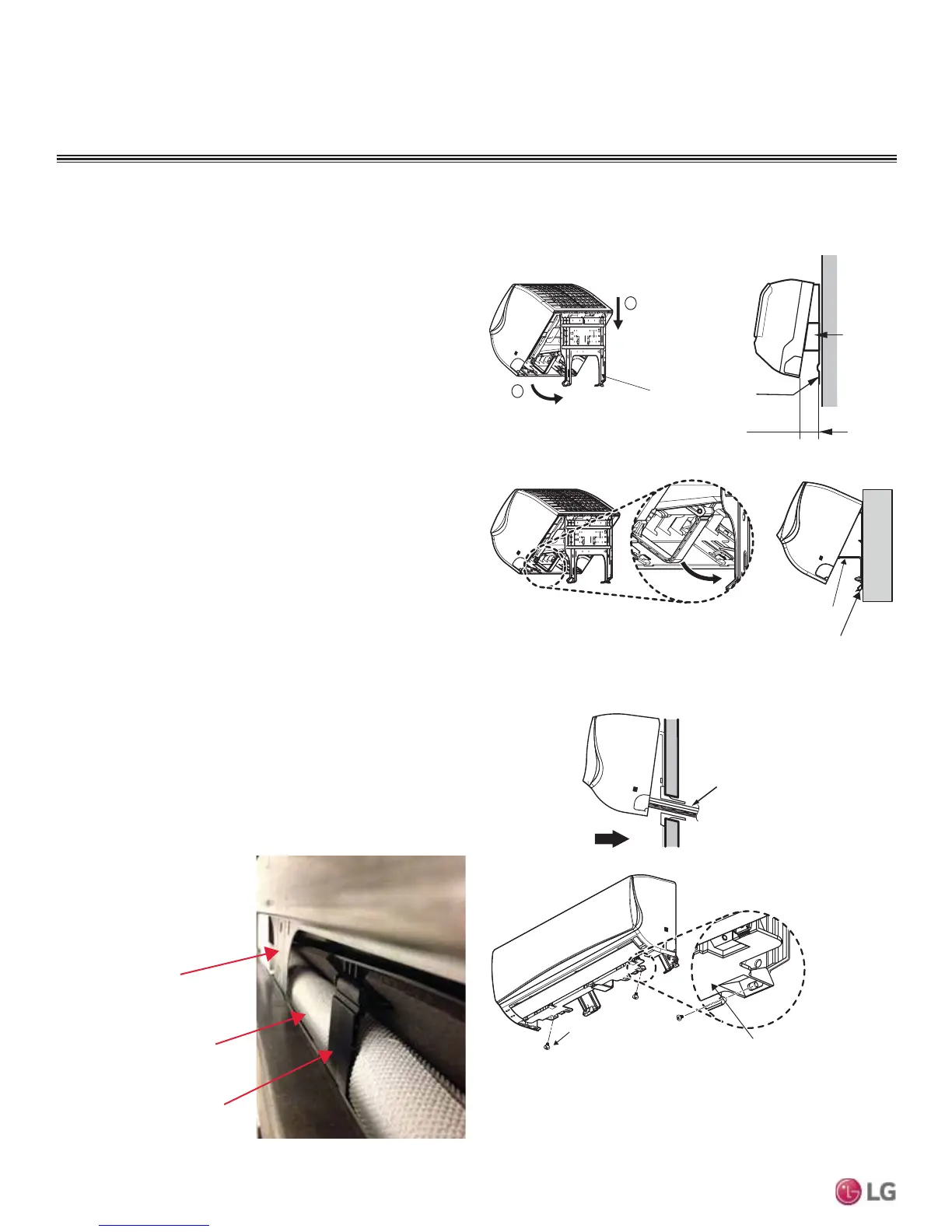

Figure 26: Mounting Unit on Installation Plate
Figure 27: Mounting Unit on Installation Plate
Figure 28: Mounting Bottom of Unit to Installation Plate
Figure 29: Rear View of IDU
Installation Plate
Drain Hose
Holder
L-bracket
Type 'C' Screws
Bottom of
Indoor Unit
Indoor Unit
Piping
Through
Wall
Installation Plate
Drain Hose
Drain Hose Holder
