Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Terminal Block Connection for HXV
See Figure 108 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSN090HXV
LSN120HXV

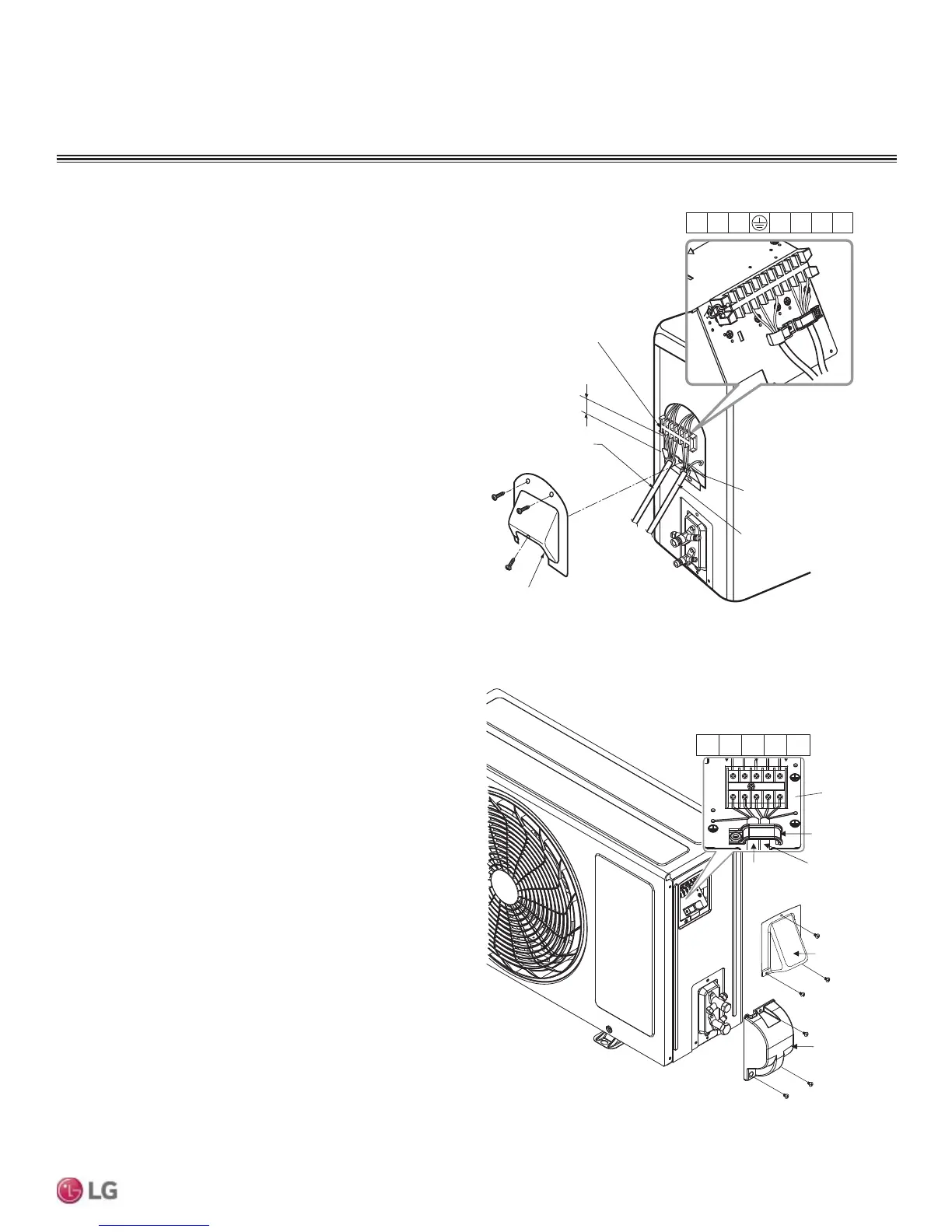

Figure 107: 240HEV1 Outdoor Unit - Electrical Connections
Tubing cover
Terminal Block
L
N
1(L)
2(N) 3
Power
connecting
cable
Power
cord
Cord clamp
Conduit panel
cover
Outdoor Unit Electrical Connections
Figure 108: 090HXV, 120HXV Outdoor Unit - Electrical Connections
Terminal Block Connection for
240HEV1
See Figure 107 for specific terminal block wiring for the following
Single Zone outdoor unit model:
LSU240HEV1
Outdoor unit
Terminal block
Over 0.2"
Control cover
Conduit panel
Connecting
cable
Power supply
cor
1(L1) 2(L2) 1(L1) 2(L2)
3
