ELECTRICAL WIRING
Outdoor Unit Electrical Connections
Terminal Block Connection for
180HEV1
See Figure 105 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU180HEV1

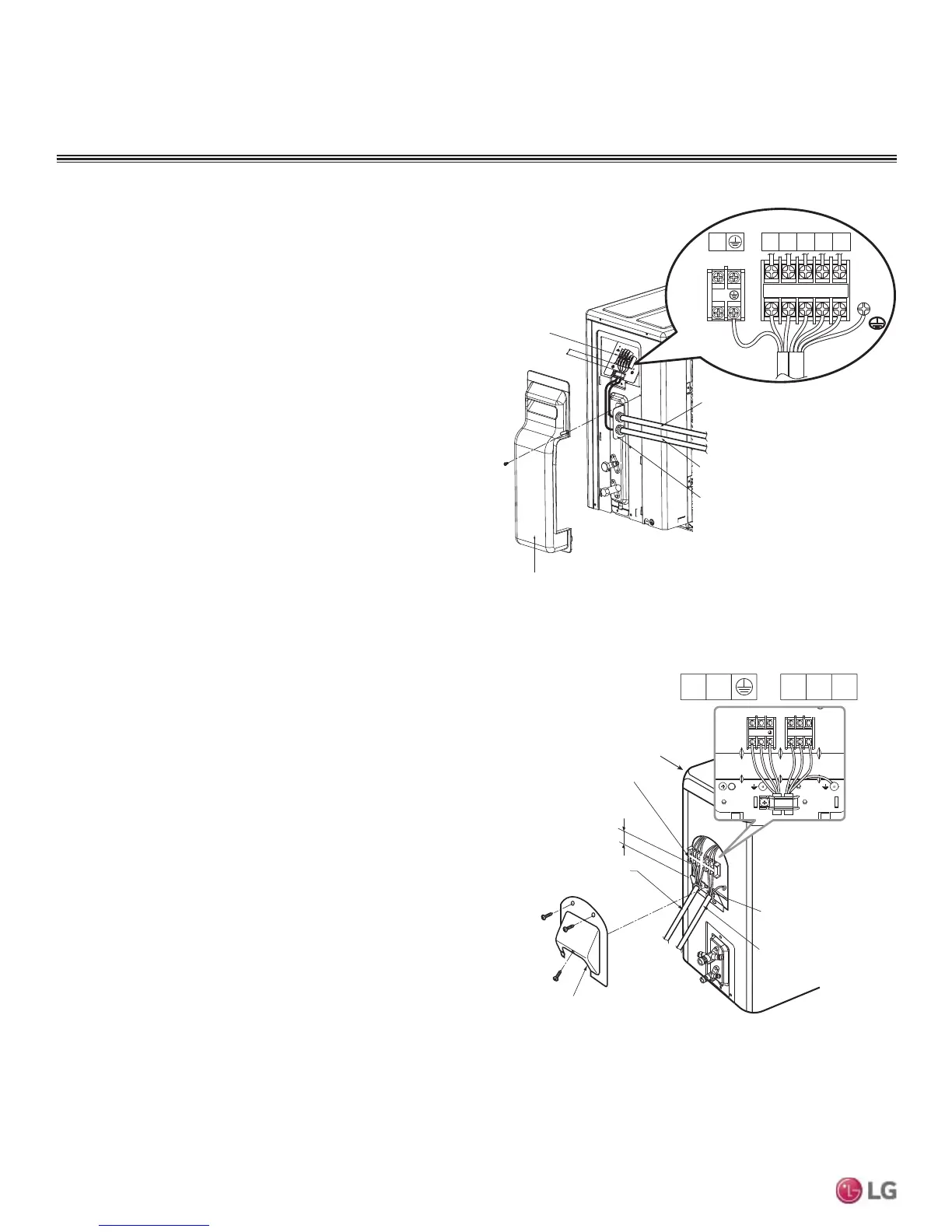

Figure 105: 180HEV1 Outdoor Unit - Electrical Connections
Terminal block
Conduit panel
Tubing cover
Over 0.2"
Power supply cord
Connecting cable
1(L1) 2 (L2) 1(L1) 2 (L2) 3
1(L1) 2(L2) 1(L1) 2(L2) 3
Figure 106: 240HEV Outdoor Unit - Electrical Connections
Terminal Block Connection for
240HEV
See Figure 106 for specific terminal block wiring for the following
Single Zone outdoor unit model:
LSU240HEV
Outdoor unit
Terminal block
Conduit Panel Cover
Ov er 0.2”
Conduit panel
Connecting
cable
Power supply
cord
1(L1) 2(L2) 3 1(L1) 2(L2)
1(L) 2(N) 3LN
1(L1 ) 2(L2)
3
1(L1 ) 2(L2)
