63
Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Outdoor Unit Electrical Connections
Terminal Block Connection for
090HEV, 090HEV1, 120HEV, 120HEV1
See Figure 103 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU090HEV
LSU090HEV1
LSU120HEV
LSU120HEV1
Conduit panel
cover
Tubing cover
Terminal block
Outdoor Unit
1(L1) 2(L2 )1(L1) 2(L2 )
3
Power
connecting
cable
Power
cord
Cord clamp

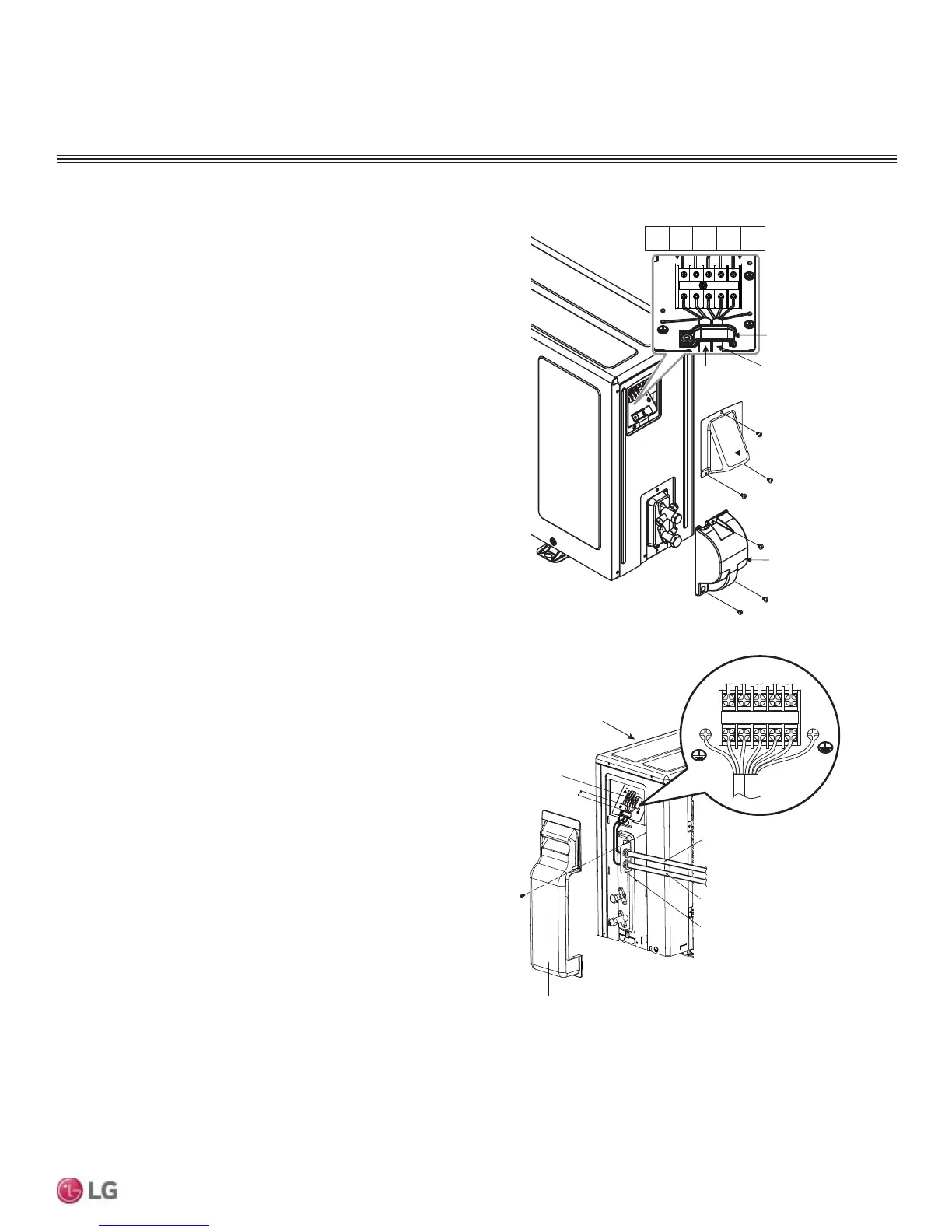

Figure 103: 090HEV, 090HEV1, 120HEV, 120HEV1 Outdoor Unit -
Electrical Connections
Figure 104: 180HEV Outdoor Unit - Electrical Connections
Terminal Block Connection for
180HEV
See Figure 104 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU180HEV
Terminal block
Conduit panel
Outdoor unit
Tubing cover
Over 0.2"
Power supply cord
Connecting cable
1(L1) 2(L2) 1(L1) 2 (L2) 3
